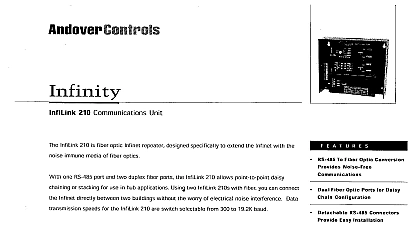

Andover Controls Infilink 210 Comm

I N F I N E T I I Infilink 210 Communications Unit Infinet II I2 Infilink 210 is a fiber optic repeater designed specifically extend the Andover Controls Infinet field bus with the noise immune of fiber optics The Infinet field bus can be comprised of both and Infinet II controllers one RS 485 port and two duplex fiber ports the I2210 allows point chaining or stacking for use in hub applications Using two I2210s fiber you can connect the Infinet directly between two buildings the worry of electrical noise interference Data transmission for the I2210 are switch selectable from 300 to 57.6K baud I2210 simplifies network troubleshooting by using LED indicators LEDs flash to indicate the data transmittal status of the fiber optics Infinet ports I2210 is provided with a hinged black 16 gauge cold rolled steel Installation is simple using the detachable two piece screw on the RS 485 port and the built in connectors on the optics ports An optional DIN rail mounting kit allows the enclosure be mounted on a standard DIN rail AND DC MODELS AVAILABLE I2210 is available in two models The AC model is powered from a 115 230 VAC source A 24 VDC model is also available for where battery backed operation is required Note Only data rates up to 19.2K baud are presently supported on the Infinet network RS 485 to Fiber Optic Provides Noise Communications Dual Fiber Optic Ports for Chain Configuration AC and DC Models Available Detachable RS 485 Provide Easy Switch Selectable Baud Rates 300 to 57.6K Baud AC Input Voltage Switch Full LED Indication for Easy Infilink 210 Dimensional Drawing with AC Power DC Power Layout P E C I F I C AT I O N S 210 Communications Unit VAC 50 60 Hz switch or 24 VDC Consumption Protection VA for AC model 1.8 W for DC model with 2 A fuse MOV protected LEDS SWITCHES Indicator LEDS Optic PORT 1 2 TDs Optic PORT 1 2 RDs COMM TD COMM RD is ON Active Mode Data Data Data Data RATE 0 10 RH non x 6.100 W x 1.960 D 175H x x 50D mm lbs 1.24 kg 1 style 16 GA C R S enclosure rating of UL94 5V IP 20 LISTINGS 916 FCC part 15 Class A ICES 003 Class A CE AC or DC Power DIN Rail Kit P N DIN MTG KIT Environment Type Speed Delay Length Media Error Checking Input Optic to 57.6K bps switch selectable to fiber port 0.5 Bit max not media delay port to fiber port 0.5 Bit max not media delay not to exceed 4000 1.2 km or 31 Fiber run not to exceed 13.5 dB loss including connectors Note connected in series the maximum delay from farthest node to node including media delay must not exceed Generally up to 4 Infilink 210s can placed in series For larger networks contact the factory twisted shielded pair approved capacitance cable Optic 62.5 125 duplex glass fiber cable Standard CRC 16 barrier strip two piece terminal strip optic transceiver interface ST Controls Corp Headquarters Brickstone Square Massachusetts 01810 USA 1 978 470 0555 Fax 1 978 470 0946 Controls Ltd Road LE65 2UG England 44 1530 417733 44 1530 415436 Controls GmbH Seerhein 8 Konstanz 49 7531 99370 49 7531 993710 Controls S A Dolomites 2 Rue Roger Salengro Fontenay Sous Cedex France 33 1 53 99 16 16 33 1 53 99 16 15 Controls Asia 1201 02 Phase 1 Cheuk Nang Centre Hillwood Road Sha Tsui East Hong Kong 852 2739 5497 852 2739 7350 Controls Mexico Sur 1722 501 Florida D F 01030 Mexico 525 661 56 72 525 661 54 15 Balfour Beatty Company Andover Controls Corporation cid 127 All brand names trademarks and registered trademarks are the property of their respective holders DS I I2210 B
