Autocall 4007ES Hybrid, Fire Detection and Control Panel with Addressable and or Conventional Initiation; International

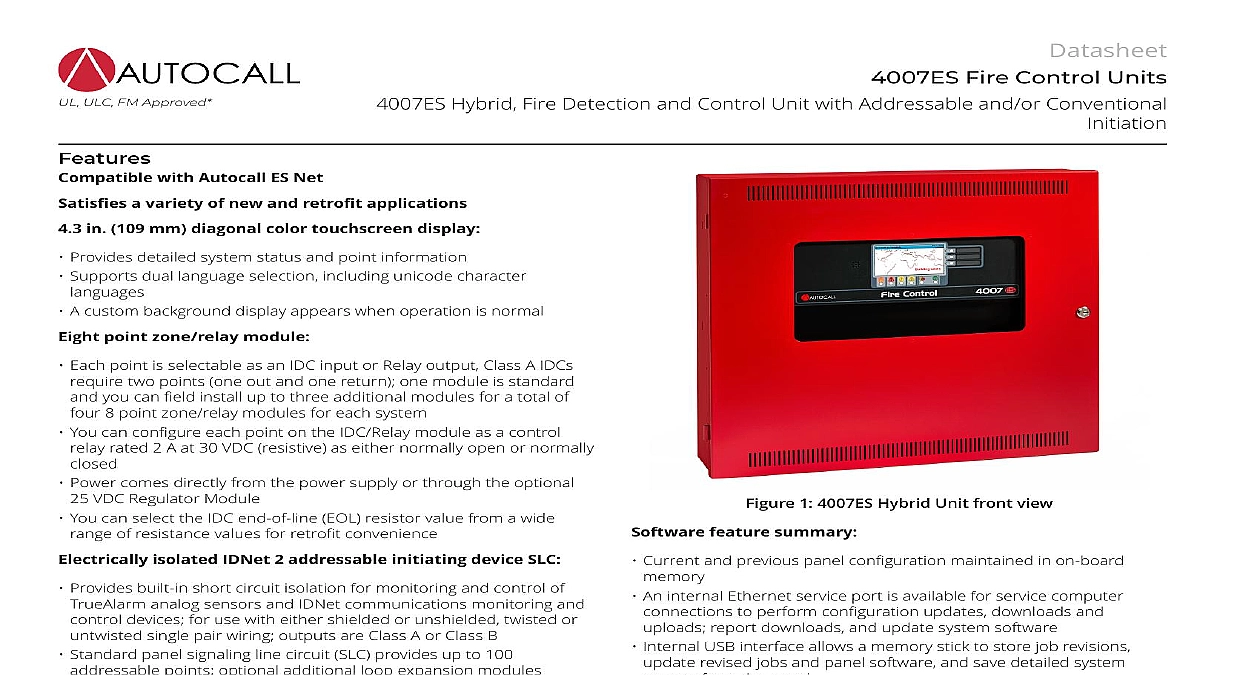

Datasheet Fire Control Units Hybrid Fire Detection and Control Unit with Addressable and or Conventional isolated IDNet 2 addressable initiating device SLC Current and previous panel configuration maintained in on board ULC FM Approved with Autocall ES Net a variety of new and retrofit applications in 109 mm diagonal color touchscreen display Provides detailed system status and point information Supports dual language selection including unicode character A custom background display appears when operation is normal point zone relay module Each point is selectable as an IDC input or Relay output Class A IDCs two points one out and one return one module is standard you can field install up to three additional modules for a total of 8 point zone relay modules for each system You can configure each point on the IDC Relay module as a control rated 2 A at 30 VDC resistive as either normally open or normally Power comes directly from the power supply or through the optional VDC Regulator Module You can select the IDC end of line EOL resistor value from a wide of resistance values for retrofit convenience Provides built in short circuit isolation for monitoring and control of analog sensors and IDNet communications monitoring and devices for use with either shielded or unshielded twisted or single pair wiring outputs are Class A or Class B Standard panel signaling line circuit SLC provides up to 100 points optional additional loop expansion modules an additional isolated loop with short circuit isolation for IDNet 2 channel each loop expansion module also provides an 75 addressable points supply with 6 A total available current You can select the NAC EOL resistor value from a wide range of values for retrofit convenience Additional notification power capacity is available using the 4009 IDNet Extender Battery backup charging of up to 33 Ah up to 18 Ah for cabinet batteries and up to 33 Ah for batteries mounted close remote battery cabinet mechanical Red or platinum cabinet rated NEMA 1 and IP30 Listings reference UL 864 Control Units System UOJZ Control Unit Accessories Fire Alarm UOXX Control Units Releasing Device Service UL 2017 Emergency Alarm System Control Units CO detection FSZI ULC S559 Central Station Fire Alarm System Units DAYRC ULC S527 Control Units System Fire Alarm UOJZC Control Unit System Fire Alarm UOXXC Control Units Releasing Service SYZVC Additional listings may be applicable contact your local product supplier for the latest status Four notification appliance circuits NACs selectable as Class A or Class X operation 1 4007ES Hybrid Unit front view feature summary An internal Ethernet service port is available for service computer to perform configuration updates downloads and report downloads and update system software Internal USB interface allows a memory stick to store job revisions revised jobs and panel software and save detailed system from the panel modules and connections include Fire alarm network interface card NIC for ES Net Peer to Peer network communications supports either Class B or Up to two additional IDNet 2 addressable device output loop with short circuit fault protection and with 75 additional capacity each Front mounted 48 LED annunciator with custom label inserts LEDs programmable for up to 24 IDC zones of alarm and trouble or other custom annunciation requirements Remote LED annunciator support through remote user interface RUI port for use with UTP wiring Dual RS 232 ports for printer PC annunciator or third party interface Alarm relays and auxiliary relays City connections with or without disconnect switch 4009 IDNet NAC Extenders to extend NAC capability for power and Battery brackets for seismic area protection see Mechanical for more information AC4007 0001 Rev 20 11 2021 Hybrid Fire Detection and Control Unit with Addressable and or Conventional Initiation display with LED status indicators Series Fire Detection and Control Units provide extensive operator and service features with point and module suitable for a wide range of system applications Panels can configured for stand alone or networked fire control operation convenient and intuitive color touchscreen provides easy access typical system response actions and for detailed system review or updates with password control to limit user access conventional IDCs and addressable IDNet 2 communications flexibility for both new and retrofit systems IDC and NAC EOL values are selectable to match a wide range of existing initiating circuits and notification appliance circuits panel compatibility with ES Net ES Network ES Net is a next generation IP based fire network uses industry standard network technology and infrastructure and for simplified network upgrades easy terminal connectivity and IP transfer between nodes and advanced network diagnostics can upgrade ES fire alarm control units FACUs to operate on an ES by adding an ES Net NIC to the panel more detailed information on ES Net refer to data sheet and talk to your local Autocall product supplier interface status information the locking door closed the glass window allows viewing of the status LEDs The user interface is a 4.3 in 109 mm diagonal touchscreen LCD with separate status LEDs see Figure 2 indicators describe the general category of activity being displayed the LCD provides more detail Authorized user can unlock the door gain access to the control functions and scroll through the display for detail interface and software features Convenient and detailed operator information is easily accessible a logical menu driven touchscreen display with password access Multiple automatic and manual diagnostics for maintenance reduction Alarm and Trouble History Logs up to 1000 entries for each 2000 total are available for viewing from the display or for printing to a printer or downloaded to a service computer Module level ground fault searching assists installation and service by and isolating modules with grounded wiring WALKTEST silent or audible system test performs an automatic self test cycle and supports up to eight WALKTEST groups Install Mode allows grouping of multiple troubles for uninstalled and devices into a single trouble condition typical with future expansion with future equipment and devices grouped into single trouble operators can more clearly identify events from the and occupied areas 2 Touchscreen display with LED status indicators Seismically compliant under the State of California Statewide of Housing and Development OSHPD Special Seismic SSC program guidelines Refer to Simplex Seismic Guide 579 1213AC and Battery Brackets for Seismic Activity AC2081 0019 for details screen reference Menu screen provides navigation to the function Buttons A B and C have functions Alarm screen identifies alarms with custom labels Use the arrows to allow through the list Trouble screen identifies troubles with custom labels arrows allow navigation the list Log screen allows review past troubles with time stamp point details shown Information screen allows of point details arrows allow through the information Access Login screen controls to panel operations as per panel description Locking door with polycarbonate window Latching front panel assembly swings forward for convenient internal Smooth box surfaces are provided for locally cutting conduit entrance exactly where required Modules are power limited except as noted such as relay modules 2 AC4007 0001 Rev 20 11 2021 Hybrid Fire Detection and Control Unit with Add
