Autocall Weatherproof Notification Appliances, Wall Mount, Visible Only, Audible Visible, Model Series 59WP 01

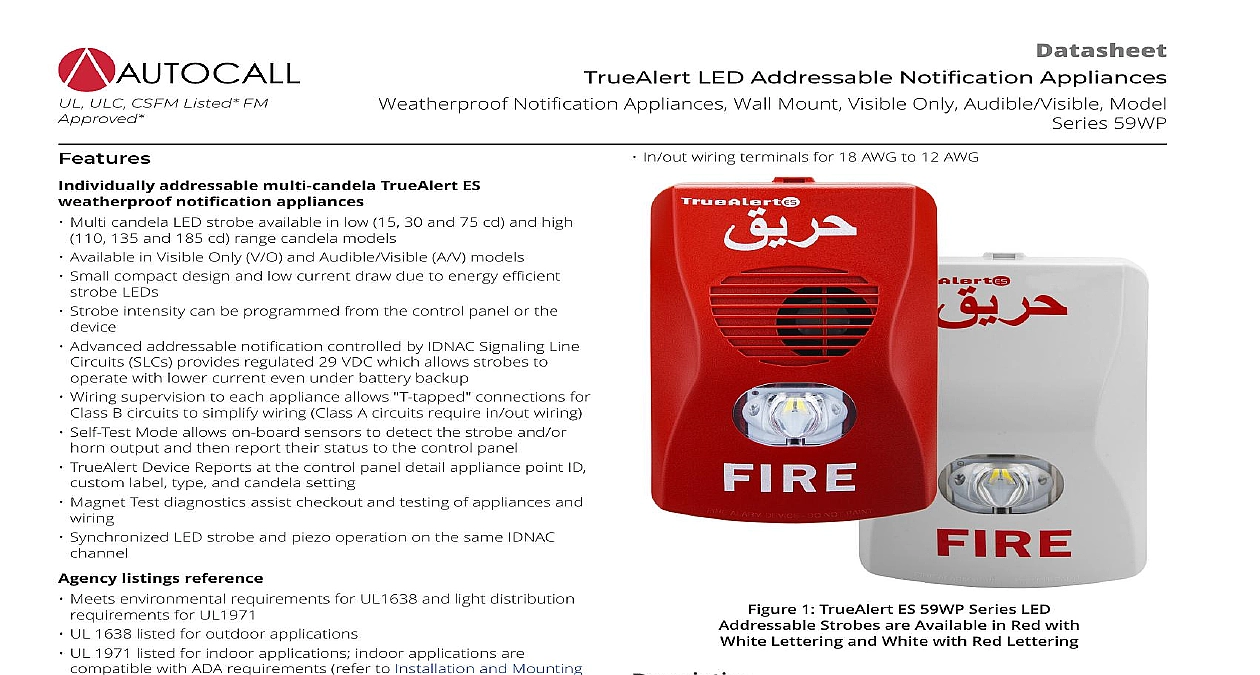

Datasheet LED Addressable Notification Appliances Notification Appliances Wall Mount Visible Only Audible Visible Model 59WP In out wiring terminals for 18 AWG to 12 AWG 1 TrueAlert ES 59WP Series LED Strobes are Available in Red with Lettering and White with Red Lettering ES 59 Series weatherproof addressable appliances ES 59 Series weatherproof addressable appliances provide only and audible visible notification for indoor and outdoor temperature and extended humidity applications They are addressed and receive power supervision and control from the Autocall fire alarm control panel IDNAC SLC LED and tube strobes require operation on separate IDNAC channels Application Reference selection of visible notification is dependent on occupancy local codes and proper applications of the National Fire Alarm NFPA 72 ANSI A117.1 the appropriate model building code ICBO or SBCCI and the application guidelines of the Americans Disabilities Act ADA ULC CSFM Listed FM addressable multi candela TrueAlert ES notification appliances Multi candela LED strobe available in low 15 30 and 75 cd and high 135 and 185 cd range candela models Available in Visible Only V O and Audible Visible A V models Small compact design and low current draw due to energy efficient Strobe intensity can be programmed from the control panel or the LEDs Advanced addressable notification controlled by IDNAC Signaling Line SLCs provides regulated 29 VDC which allows strobes to with lower current even under battery backup Wiring supervision to each appliance allows T tapped connections for B circuits to simplify wiring Class A circuits require in out wiring Self Test Mode allows on board sensors to detect the strobe and or output and then report their status to the control panel TrueAlert Device Reports at the control panel detail appliance point ID label type and candela setting Magnet Test diagnostics assist checkout and testing of appliances and Synchronized LED strobe and piezo operation on the same IDNAC listings reference Meets environmental requirements for UL1638 and light distribution for UL1971 UL 1638 listed for outdoor applications UL 1971 listed for indoor applications indoor applications are with ADA requirements refer to Installation and Mounting Reference Horn operation is listed to UL Standard 464 Strobe operation listed to UL Standard 1971 and ULC Standard S526 Indicator and Magnet Test Indicator LED indicates magnet test acknowledgment 3 digit IDNAC and candela rating Indicator LED can be configured to blink on every polling cycle to appliance supervision When the controller is in diagnostic mode the magnet test pulses the to indicate appliance address and can also briefly flash the strobe Models with horn Horns controlled separately from visible appliances on the same two circuit Selectable March Time rates of 20 60 or 120 BPM Output is high or low 5 dBA difference selectable at the appliance from the controller design features Rugged high impact flame retardant thermoplastic housing in red with letters or white with red letters Various covers options are available red with white letters or white red letters Available with English and Arabic FIRE lettering Surface mounts to a single gang weatherproof electrical box Covers can be easily removed without disturbing the connected and avoiding trouble conditions These products have been approved by the California State Fire Marshal CSFM pursuant to Section 13144.1 of the California Health and Safety Code See CSFM Listing 7125 0026 0383 for allowable and or conditions concerning material presented in this document Additional listings may be applicable contact your local product supplier for the latest status Rev 4 05 2021 Notification Appliances Wall Mount Visible Only Audible Visible Model Series 59WP Application Reference selection of visible notification is dependent on occupancy location local codes and proper applications of the National Fire Alarm Code NFPA ANSI A117.1 the appropriate model building code BOCA ICBO or SBCCI and the application guidelines of the Americans with Disabilities Act ES Diagnostics Test allows individual appliances to be tested when IDNAC SLCs are in diagnostic mode allows selected devices to detect their own strobe and or horn output and then report their status to the control panel Operation is by VNAC appliance groups and is automatic or individually activated by applying a magnet Appliance Magnet Test pulses the appliance indicator LED sequentially in response to an applied magnet to conveniently indicate the address Appliance Magnet Test indicates device location by pulsing the indicator LED briefly and then flashes the strobe LEDs and sounds the to indicate proper operation Instrument Two TSIT can be used to test IDNAC SLC wiring and TrueAlert ES appliance IDC NAC and IDNet communications before to the control panel Please contact your local Autocall representative for additional information Addressable Wiring Isolator Model A4905 9929 is available for remote mounting on TrueAlert addressable circuits to isolate short circuited wiring from functioning See data sheet AC4905 0001 for more information Selection ES 59 Series Weatherproof Appliances surface mount box and gasket Dimensions with cover 5 H x 3 W x 1 D 132 mm x 86 mm x 39 mm 1 Appliance Only Candela rating 110 135 and 185 cd Candela rating 2 Separate weatherproof covers Required when ordering appliance only models Wording only Description Only Wording ALERT only 3 Surface Mount Weatherproof Boxes Required ordered separately mount weatherproof single gang mounting box includes weatherproof gasket painted versions of Model 72219K23 below Order from your Autocall product mount weatherproof single gang mounting box blank cover below to get matching weatherproof cover with weatherproof gasket by McMaster order from electrical supplier H x 2 W x 2 D 114 x 70 mm x 51 mm cover is not used 2 Rev 4 05 2021 Notification Appliances Wall Mount Visible Only Audible Visible Model Series 59WP SLC Controller Compatibility Reference Controllers with EPS or EPS Power Supply IDNAC Repeater with IDNAC Notification with ESS Enhanced System Supply Operating Voltage Range Requirements SLC Loading Range Range SLC Wiring Specifications refer to panel installation instructions for more Instructions Type see Note Chamber UL 464 Test Chamber ULC 525 Test 4 Compatibility Reference Sheet Output SLC Output Voltage Reference SLC VDC regulated VDC 6 VDC drop 5 Electrical Ratings VDC to 31 VDC Special Application unit load 0.8 mA control panel current of 127 addresses per SLC 139 unit loads to 150 F 40 to 66 C to 93 non condensing at 104 F 40 C unshielded twisted pair recommended wire length allowed with T Taps for Class B wiring per SLC 10,000 ft 3048 m wire length to a
