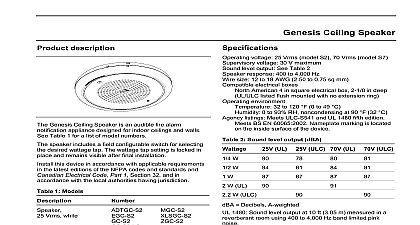

Edwards Data Sheet Genesis Ceiling Speakers

Edwards Signaling Catalog u Speakers Telephones or more patents pending Configurable Speaker Series life safety ceiling speakers are small compact and attrac audible emergency signaling devices Protruding no more than inch from the ceiling Genesis speakers blend with any decor notification appliances feature textured housings in archi neutral white or eye catching fire alarm red ceiling speakers feature W to 2 W operation which is with a conveniently located switch The wattage tap remains clearly visible even after final installation yet it is in place to prevent movement after installation Genesis ceiling speakers include a DC blocking capacitor to electrical supervision of the audio distribution circuit Models 25 VRMS and 70 VRMS audio circuits are available The speaker its sealed back construction is extra durable is impervious to and provides improved audibility Features Unique low profile design Attractive appearance No visible mounting screws Available with white or red housings Field configurable no need to remove the device Select 1 or 2 watt operation Switch setting remains visible even after the unit is installed Unparalleled performance Loud 90 dBA output ensures clear crisp audio 25 Vrms and 70 Vrms models available all supplied with a blocking capacitor for audio circuit supervision Easy to install behind the signal for extra wire no extension ring or Fits all standard 4 square electrical boxes with plenty of trim plate needed 18 12 AWG terminals ideal for long runs existing wiring Approved for public and private mode applications UL 1480 listed as life safety speaker UL ULC listed for ceiling or wall use 1 of 4 D A T A S H E E T S85001 0558 to be used for installation purposes Issue 5 generally require that notification systems produce a minimum of 15 dBA above the ambient sound pressure or 5 dBA above the maximum sound pressure level having a of 60 seconds whichever is greater This is measured 5 1.5 m above the floor the distance from the signal to the ear will theoretically a 6 dB reduction in the received sound pressure level The effect depends on the acoustic properties of materials in space Doubling the power output of a device e g a speaker 1 W to 2 W will increase the sound pressure level by 3 A 3 dBA difference represents a barely noticeable change in Notes Canada in part on 1995 Canada National Building Code signal sound pressure level shall not exceed 110 dBA in any occupied area The sound pressure level from an audible in a floor area used for occupancies other than residential shall not be less than 10 dBA above ambient levels never less than 65 dBA In sleeping rooms the sound pres level from an audible signal shall not be less than 75 dBA any intervening doors between the device and the sleeping are closed Sound Output dBA From Speaker at 2 watts setting in anechoic chamber 1.5m 3.05m dia mm mm and Mounting models are intended for indoor ceiling or wall applications only are flush mounted to a North American 4 square elec box 21 8 54 mm deep or a European 100 mm square box ceiling speakers simply unlatch and twist to open This access to mounting screws The shallow depth of Genesis leaves ample room behind the signal for extra wiring installed with the cover in place no mounting screws are 4 recommends that these speakers always be installed in with the latest recognized edition of national and local Configuration ceiling speakers may be set for 1 or 2 watt opera Wattage may be changed by simply opening the device and the switch to the desired setting The speaker does not to be removed to change the output setting The setting visible through a small window on the front of the device the cover is closed switch wiring terminals accommodate 18 to 12 AWG 0.75 mm 2.5 mm wiring 2 of 4 D A T A S H E E T S85001 0558 to be used for installation purposes Issue 5 Level Output level output notes W W W W Rated dBA dBA dBA dBA dBA dBA dBA dBA Rated dBA dBA dBA 91 dBA dBA dBA dBA dBA Decibels A weighted Sound level output at 10 ft 3.05 m measured in a room using 400 to 4,000 Hz band limited pink noise Meets or exceeds 85 dBA in an anechoic chamber 10 ft 3.05 m characteristics Within 6 dB of on axis sound level measured 90 off axis horizontal connections UV stabilized color impregnated engineered plastic Exceeds 94V 0 UL flammability rating Red and white models terminals polarized inputs for speaker 18 to 12 AWG 0.75 mm to 2.5 mm wire size mount to North American 4 inch square electrical box 2 1 8 54 mm inches deep 960A 4RF round flush box No extension ring required Suitable for indoor wall or ceiling applications 32 120 F 0 49 C ambient temperature 0 93 relative humidity environment listings approvals Meets or exceeds UL1480 Fifth Edition ULC S541 and CSFM FM and MEA pending Voltage Vrms Model S2 or 70 Vrms Model S7 frequency response 250 13,000 Hz Optimized for voice intelligibility 4 inch 102mm mylar cone sealed back rated for 8 watts 8 ohm voice coil Cone Information speakers include field selectable 1 or 2 watt taps safety Appliances c w running man icon screen printed on housing Volt Volt Wt lb kg Field Configurable Speakers may be with or without FIRE marking speakers come with marking 3 of 4 D A T A S H E E T S85001 0558 to be used for installation purposes Issue 5 us 1 800 336 4206 www edwardssignaling com Signaling is EDWARDS brand Farm Glen Boulevard CT 06032 Canada contact Chubb Edwards Email inquiries chubbedwards com Web www chubbedwards com 2013 UTC Fire Security Americas Inc All rights reserved subject to change notice Edwards is part of UTC Controls Security a unit of Technologies Corporation 4 of 4 D A T A S H E E T S85001 0558 to be used for installation purposes Issue 5
