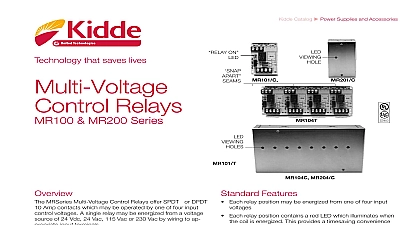

Edwards Data Sheet MR-100 & 200 Multi-Voltage Control Relays

Multi Voltage Relays MR200 Series Signaling Catalog u Power Supplies and Accessories ON MRSeries Multi Voltage Control Relays offer SPDT or DPDT Amp contacts which may be operated by one of four input voltages A single relay may be energized from a voltage of 24 Vdc 24 Vac 115 Vac or 230 Vac by wiring to ap input terminals relay position contains a red light emitting diode LED which the relay coil is energized Relays may be from a standard four module assembly and used independ devices are ideal for applications where local contacts are for system status remote contacts for control of electri loads and general purpose switching They are suitable for with HVAC Temperature Control Fire Alarm Security Energy and Lighting Control Systems MR204 C Features Each relay position may be energized from one of four input Each relay position contains a red LED which illuminates when coil is energized This provides a timesaving convenience checking an installed system no metering is required Single dual or triple relay modules may be apart a standard four position master SPDT or DPDT relays available Available in dustproof metal enclosures with LED viewing port Track mounting hardware to facilitate installation in standard UL recognized relays rated at 10 million mechanical operations ULI listed as control unit accessory 1 of 2 D A T A S H E E T 270062 to be used for installation purposes Issue 1.2 Wiring FOR ONE MODULE POSITION us 1 800 336 4206 www edwardssignaling com Signaling is EDWARDS brand Farm Glen Boulevard CT 06032 Canada contact Chubb Edwards Email inquiries chubbedwards com Web www chubbedwards com 2013 UTC Fire Security Americas Inc All rights reserved subject to change notice Edwards is part of UTC Controls Security a unit of Technologies Corporation MR104 MR204 Requirements Position Position Rating Temperature and MR201 T and MR204 T and MR201 C and MR204 C mA 24 Vac 24 Vdc 115 Vac 230 Vac mA 24 Vac 24 Vdc 115 Vac 230 Vac Recognized SPDT Recognized SPDT ga CRS plated with 1 2 in conduit knockouts top and bottom Amps 115 Vac to 185 50 to 85 Listed control unit accessory H x 2.125 W x 1.5 D in 76 H x 54 W x 38 D mm H x 8.5 W x 1.5 D in 76 H x 216 W x 38 D mm H x 3.25 W x 2.5 D in 156mm H x 83mm W x 64 D mm H x 9.5 W x 2.5 D in 156 H x 241 W x 64 D mm Information SPDT relay with LED and track mounting hardware SPDT relay with LED mounted in metal enclosure SPDT relay with LEDs and track mounting hardware SPDT relay with LEDs mounted in metal enclosure DPDT relay with LED and track mounting hardware DPDT relay with LED mounted in metal enclosure DPDT realy with LEDs and track mounting hardware DPDT relay with LEDs mounted in metal enclosure 2 of 2 D A T A S H E E T 270062 to be used for installation purposes Issue 1.2
