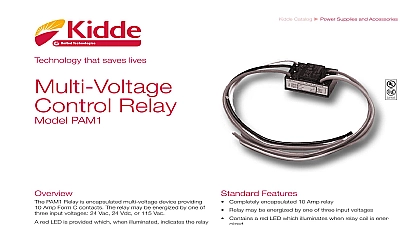

Edwards Data Sheet PAM-1 Multi-Voltage Control Relay

Edwards Signaling Catalog u Power Supplies and Accessories Relay PAM 1 PAM 1 Relay is encapsulated multi voltage device providing Amp Form C contacts The relay may be energized by one of input voltages 24 Vac 24 Vdc or 115 Vac Features Completely encapsulated 10 Amp relay Relay may be energized by one of three input voltages Contains a red LED which illuminates when relay coil is ener red LED is provided which when illuminated indicates the relay is energized PAM 1 may be mounted by using the double sided adhesive the self drilling screw or loosely placed in a back box PAM 1 is ideal for applications where remote relays are for control or status feedback They are suitable for use HVAC Temperature Control Fire Alarm Security Energy and Lighting Control Systems May be mounted by double sided adhesive tape self drilling or placed in back box Convenient 6 in 150mm wire leads for electrical connections 1 of 2 D A T A S H E E T 270066 to be used for installation purposes Issue 1.1 Requirments Rating Temperature mA per position 24 Vdc 24 Vac 115 Vac Recognized SPDT Amps 115 Vac to 185 50 to 85 Recognized components H x 1 W 875 D inches 38.1 x 24.5 x 22.2 mm 6 inch 150mm wire leads 18 AWG 1.00mm Information Description SPDT relay with LED double sided adhesive tape mounting screw and 6 in 150 mm us 1 800 336 4206 www edwardssignaling com Signaling is EDWARDS brand Farm Glen Boulevard CT 06032 Canada contact Chubb Edwards Email inquiries chubbedwards com Web www chubbedwards com 2013 UTC Fire Security Americas Inc All rights reserved subject to change notice Edwards is part of UTC Controls Security a unit of Technologies Corporation 2 of 2 D A T A S H E E T 270066 to be used for installation purposes Issue 1.1
