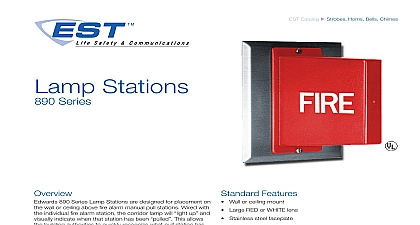

EST Catalog u Strobes Horns Bells Chimes Stations Series Features Wall or ceiling mount Large RED or WHITE lens Stainless steel faceplate Diode supervised 24 Vdc or 120 Vac Easy installation Sturdy design 890 Series Lamp Stations are designed for placement on wall or ceiling above fire alarm manual pull stations Wired with individual fire alarm station the corridor lamp will up and indicate when that station has been This allows building authorities to quickly recognize what pull station has activated models feature a large translucent plastic lens easily seen from angles WHITE or RED lenses are available to meet local re Red lenses have printed in white white lenses printed in red 890 series Lamp Stations are supplied with 24 volt 0.18 or 120 volt 0.05 amps lamps supervision diode wedge plastic lens and two gang brushed stainless steel face Wiring connections are made to six inch 150mm wire Lamp Stations flush mount over standard North American or two gang electrical boxes or surface mount to two gang or equivalent boxes 1 of 2 D A T A S H E E T 85001 0253 to be used for installation purposes Issue 2 alarm since 1872 888 378 2329 866 503 3996 Edwards 519 376 2430 519 376 7258 Asia 65 6391 9300 65 6391 9306 91 80 4344 2000 91 80 4344 2050 61 3 9239 1200 61 3 9239 1299 32 2 725 11 20 32 2 721 86 13 America 305 593 4301 305 593 4300 2010 UTC Fire Security rights reserved recommends that these Fire Alarm Stations always be installed in accordance the latest recognized issue of national and local fire alarm codes Mount Mount Number Style Color Voltage Current Mounting Mounting Connection with White Vdc 120 Vac Amps 24 Vdc Amps 120 Vac with RED Vdc Amps 24 Vdc North American one or two gang Electrical Box or equivalent two gang Box Brushed Stainless steel 150mm Wire Leads Indoor only Dry Information Station Mount Red Lens with white 1 120 Vac and 1 24 Vdc lamp Station Mount White Lens with red 24 Vdc Station Mount Red Lens with white 24 Vdc Station Mount White Lens with red 24 Vdc lb kg These devices will not operate without electrical power As fires frequently cause power interruptions suggest you discuss further safeguards with your fire protection specialist 2 of 2 D A T A S H E E T 85001 0253 to be used for installation purposes Issue 2
