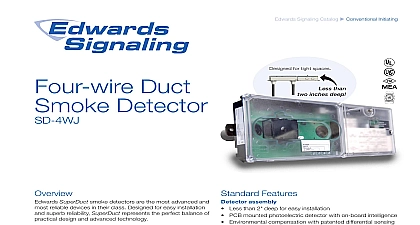

Kidde Edwards Data Sheet K85001-0583 - Four-Wire SuperDuct Duct Smoke Detector

Four wire Duct Detector for tight spaces than inches deep SuperDuct smoke detectors are the most advanced and reliable devices in their class Designed for easy installation superb reliability SuperDuct represents the perfect balance of design and advanced technology and stability are two features built into every Super detector SuperDuct features environmental compensation patented differential sensing This achieves a level of stability reliability never before achieved for devices of this type With sensing SuperDuct sensors are immune from sensitiv drift a common cause of false alarms Every eight minutes SuperDuct sensor checks its environment for dirt humidity conditions that normally interfere with sensor operation and adjusts its sensitivity to compensate The result is reliability and rock solid stability two features essen to any duct smoke detection application testing and diagnostics reveal some of the most ex innovations built into SuperDuct With the ingenious Super remote test station a sensitivity test can be performed at any from the safety and comfort of a maintenance office or utility Operated either by key or by magnet the one gang station performs alarm tests for detectors connected to a single Detectors may also be tested at the controller via a test or they can be tested individually in the field with a simple magnetic test tool Access to the magnetic reed switch not require the detector cover to be removed so testing can performed quickly and easily dedicated dirty trouble LED on each unit offers immediate at a information even when the cover is closed Features assembly Less than 2 deep for easy installation PCB mounted photoelectric detector with on board intelligence Environmental compensation with patented differential sensing 4 to 158 20 to 70 operating range 100 ft min to 4,000 ft min air velocity rating Standard RJ45 modular interconnection Status LEDs remain visible through clear assembly cover Cover tamper reed switch for added security Standard sampling tube and mounting holes in tandem with the controller assembly or remotely from it Sampling tubes install from front side or back side of housing Magnet activated test dirty reset switch No need to open the detector for installation One controller for up to two detectors Standard connections for easy migration from other detectors 24 Vac 24 Vdc 120 Vac or 230 Vac operation Status LEDs remain visible through clear assembly cover Knockouts located on the bottom Alarm contact trouble contact and two 10 amp auxiliary contacts No special tools required for easy access to field connections Interconnect up to 15 controllers for multiple fan shut down 1 of 6 D A T A S H E E T K85001 0583 to be used for installation purposes Issue 1 Catalog u Conventional InitiatingTechnology that saves livesfirealarmresources com smoke detection is ideally suited to HVAC applications early indication of combustion is required within the con space of ventilation ductwork detectors are usually installed on the supply duct after the air or in the return air stream prior to being diluted by outside air detectors continually sample air flow in the HVAC duct initiate an alarm condition whenever smoke is detected An is activated when the quantity percent obscuration of products in that air sample exceeds the detector setting velocity in the duct as low as 100 ft min maintains adequate flow into the sensor smoke chamber through air holes in the air tube and discharges through the exhaust tube Su air sampling tubes must be installed with the inlet holes the airstream tubes may rotated in 45 de increments so air holes can be to allow the to be mounted in any angle rela to the airflow Overview detec are engineered operate optimally the harsh en condi frequently found HVAC ductwork before the detec test the duct air temperature humidity to verify it is within the range of the detector the SuperDuct detectors and controllers feature a unique modular that speeds installation and simplifies maintenance Sepa housings enable access to either the controller or detector affecting the other conduit knockouts rubber cable glands and optional gaskets keep contaminants away from compo ensuring years of trouble free service When cleaning is re the detector comes apart easily and snaps back together seconds detector assembly provides easy access to the smoke its wiring connections sample and exhaust tube fittings the smoke chamber itself Air enters the assembly by means an air sampling tube ordered separately and exits by means a six inch exhaust tube included The sampling tube may be from either air duct side the assembly from inside the compart as preferred the installer The tube must installed from the duct side Sam tubes may be in 45 degree so that can be to allow the to be mounted virtually any angle to the air controller can up to detectors One both detectors be installed re from the con A Category 5 wiring harnesses ordered separately is used interconnection when detectors are installed remotely from the Harnesses are terminated with RJ45 connectors and in lengths of up to 15 feet Controllers and detectors may be ordered with terminal blocks for interconnection wiring All come with terminal blocks for customer connection of the relays to external equipment High voltage power input are suitable for 22 AWG to 12 AWG wire while all terminals can handle 22 AWG to 14 AWG wires Highlight Remote Test Reset Station sheet for details Layout SuperDuct smoke detection for two airstreams can be with just one set of field connections for fan shut down control etc ingenious labor saving Test Reset stations not only remote alarm testing they also detector dirt levels Tests be performed quickly and safely without having to climb to the roof and key operat one gang models are available Air 2 of 6 D A T A S H E E T K85001 0583 to be used for installation purposes Issue 1 environments the SD PH Protective Housing when installing SuperDuct in high humidity environments The SD PH is a housing that prevents condensation on the device insulating the detectors and providing circulated air from the HVAC duct The SD PH also adds a layer of protection physical damage to the unit Detector to two detectors may be connected to a single controller Typi the detector comes attached to the controller connected by of an integral cable provided one or both detectors may be installed remotely the controller and connected by means of either a cable with connectors or terminal blocks see ordering information for between detector and controller along with wiring between and fire alarm panel if used is supervised and detectors come pre assembled for easy instal for the RJ 45 models They are sold separately for the versions Model second sensor wiring harness separately View tube tube holes SD PH is easy to install and service The hinged and cover provides ready access to the detector while its status indicators visible at all times The SD PH Protective Housing is weatherized against air but it is not intended for direct outdoor wiring harness separately sensor Model second sensor type or equivalent 7 6 5 4
