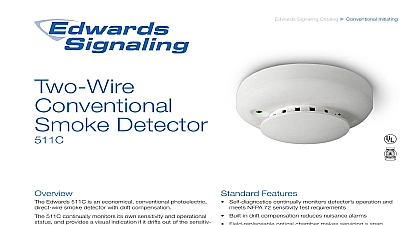

Kidde Edwards Data Sheet K85001-0595 - 511C Self-Diagnostic Smoke Detector

Two Wire Detector 511C is an economical conventional photoelectric direct smoke detector with drift compensation Features Self diagnostics continually monitors detector operation and NFPA 72 sensitivity test requirements Built in drift compensation reduces nuisance alarms Field replaceable optical chamber makes servicing a snap Small low profile design blends in with any environment Large SEMs type terminals speeds wiring connections while a secure connection Cost effective for the largest installations 511C continually monitors its own sensitivity and operational and provides a visual indication if it drifts out of the sensitiv range or fails internal diagnostics Additional diagnostic informa is activated by applying a magnet near the detector integral switch This initiates a self diag nostic routine and provides visual of sensitivity level or if service is required The magnet test the LED to blink The number of blink counts corresponds to smoke detector sensitivity range This meets NFPA 72 field sensitiv test requirements without the need for external meters chance that a 511C will need maintenance is significantly because of the built in drift compensation This feature only available in analog systems allows the detector to adjust its sensitivity over time as it becomes dirty the life of the detector And if the 511C ever needs it literally a snap with the patented field replaceable chamber 511C also features an alarm verification feature to further the chance of a nuisance alarm Normal sensing occurs 9 seconds This rate doubles when a signal exceeding the threshold value is sensed Two additional successive signals the threshold level will initiate an alarm installation instructions for information about correct installa and maintenance 1 of 2 D A T A S H E E T K85001 0595 to be used for installation purposes Issue 1 Catalog u Conventional InitiatingTechnology that saves livesfirealarmresources com that saves lives us kidde fire fs utc com Kidde com EngineeredSystems is a UTC brand Corporate Park Drive NC 27302 2016 United Technologies Corporation rights reserved Detector Technology homes have battery operated ionization smoke detectors These detectors react to flaming fires but usually take longer to detect smoldering fires the most com type of fire that occurs in homes Kidde 511C smoke detectors utilize photoelectric detection technology Photoelectric smoke detectors continually analyze the air smoke particles and are more sensitive to smoldering fires than ionization detectors both ionization and photoelectric smoke detectors in your home provides the possible protection for you and your family standby current alarm current reset time sensitivity temperature humidity dimensions dimensions compensation adjustment wiring size compatibility identifier VDC 8.5 33 VDC polarity sensitive sec 1 to 100 0 to 37.8 non condensing x 2 12 x 5cm x 0.3 12.5 x 0.8cm max 268 CSFM Information Smoke Detector 2 wire 12 24VDC white 1 in a Can aerosol spray for functional testing in a Can extension tube connects directly to can optical chambers package of 10 2 of 2 D A T A S H E E T K85001 0595 to be used for installation purposes Issue 1
