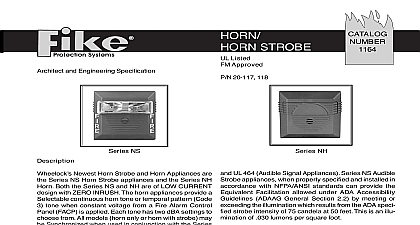

Fike Horn and Horn Strobe P 1 11 01

File Preview
File Preview
Click below to download for free

File Data

Name fike-horn-and-horn-strobe-p-1-11-01-3756189402.pdf
Type PDF
Size 1.01 MB
Downloads

Text Preview

Architect and Engineer Specification 20 125 20 100 20 102 Horn Strobe Listed Approved Listed MEA Approved BFP Approved Multitone Strobe Signals are UL Listed for indoor use and wall mount under Standard 1971 for Signaling for the Hearing Impaired and Standard 464 for Au Signal Appliances and use a Xenon flashtube with solid circuitry enclosed in a rugged Lexan lens to provide reliability for effective visible signaling Options listed 15 15 75 and 75 candela intensity strobes 15 75 CANDELA WALL MOUNTED STROBE IS LISTED 15 CANDELA UNDER UL 1971 AND MEET 75 CAN INTENSITY ON AXIS FOR ADA GUIDELINES WITH CURRENT DRAW Approvals include Underwriters Laboratories UL 1971 and 464 Listings Factory Mutual California State Fire Mar New York City MEA and Chicago BFP OSHA 29 1910 approvals on all models Series MT Signals have IN and OUT wiring terminations accept two 12 to 18 American Wire Gauge AWG at each terminal Inputs are polarized for compatibil with standard reverse polarity type supervision One alarm appliance with 8 eight selective signals to pro superior sound penetration for various ambient and wall with two field selectable sound output levels Code 3 Horn and Tone meet ANSI NFPA ISO temporal pat for standard emergency evacuation signaling Audible and strobe can operate from a single signaling with any of the 8 eight audible signals Designed to meet or exceed NFPA ANSI Standards and Accessibility Guidelines MT Strobe models available with 15 15 75 and 75 candela for independent or single input activation Selectable input voltage on non strobe versions Strobe are factory set for 24 VDC Mounts to either 4 square or double gang switch boxes for retrofit installations Attractive flush or sur mounting No additional trimplate required for flush mounting Compliance with RFI limits in FCC Part 15 Class B for with sensitive detection and communication 2002 Issue 20 100 Series MT and MT Strobe Multitone electronic offer a choice of eight 8 nationally and interna recognized alerting sounds Horn Bell March Time Code 3 Tone Code 3 Horn Slow Whoop Siren or Tone Our Code 3 horn and tone patterns are engi to comply with NFPA ANSI Temporal Pattern speci without requiring additional equipment With MT MT Strobe Signals one alarm appliance meets most your signaling needs MT Strobes are designed for ADA applications with performance reliability and cost effectiveness meeting or exceeding the latest requirements of NFPA the National Fire Alarm Code ANSI 117.1 the Ameri National Standard For Accessible and Usable Build and Facilities and UL Standard 1971 Standard for Devices for the Hearing Impaired MT Strobes properly specified and installed in accordance with Standards can provide the Equivalent Facili allowed under ADA Accessibility Guidelines ADAAG Section 2.2 by meeting or exceeding the illumina which results from the ADA specified strobe intensity of candela at 50 feet This is an illumination of 0.030 lu per square foot foot candles MT and MT Strobe appliance has two user selective output levels STANDARD dBA and HIGH dBA The provides selectable voltage capability in one unit or 24VDC filtered or FWR Strobe versions are spe for 24VDC and may be used with filtered or unfiltered input voltages Separate input terminals available shunt wires are provided to enable both tone strobe to operate simultaneously from a single input S 10th Street P O Box 610 cid 127 Blue Springs Missouri 64013 0610 U S A cid 127 816 229 3405 cid 127 Fax 816 229 0314 cid 127 www fike com and Ordering Information warnings are printed in bold capital letters PLEASE READ THESE SPECIFICATIONS AND INSTALLATION INSTRUCTIONS CAREFULLY BEFORE SPECIFYING OR APPLYING THIS PRODUCT FAILURE TO COMPLY WITH ANY OF THESE INSTRUC CAUTIONS AND WARNINGS COULD RESULT IN IMPROPER APPLICATION INSTALLATION AND OR OF THESE PRODUCTS IN AN EMERGENCY SITUATION WHICH COULD RESULT IN PROPERTY AND SERIOUS INJURY OR DEATH TO YOU AND OR OTHERS NOTE the strobe and audible operate on the same circuit add the strobe current from above to the proper current from 2 current per actual Wheelock Production testing at 12 24VDC nominal voltage For rated average peak inrush currents across the listed voltage ranges for both filtered DC and full waved rectified FWR see the Instruction for this product series or Wheelock current Signals catalog Notes Strobes are designed to flash at 1 flash per second minimum from 20 31VDC for 24VDC models Note that ADA presently specify a flash rate of 1 to 2 flashes per second All candela ratings represent minimum effective Multitone Strobe intensity based on UL 1971 MT Strobe models are UL 1971 Listed for indoor use with a temperature range of 32 to 120 0 to 49 and humidity of 85 Anechoic dBA is measured on axis in a non reflective free field test room using fast meter response For peak dBA with peak meter response add 5 dBA to typical anechoic values shown in Table 1 and 2 Reverberant dBA is a minimum UL rating based on sound power measurements in a reverberant test room This setting is acceptable only for general signaling non fire alarm use Use the dBA setting with tone or use a different tone for public mode fire alarm service Diagrams for all models Signal signal and strobe operate independently signal and strobe operate in unison and black shunt wires are supplied products must be used within their published specifications and must be PROPERLY specified applied in operated maintained and operationally tested in accordance with their installation instructions at the time of and at least twice a year or more often and in accordance with local state and federal codes regulations and Specification application installation operation maintenance and testing must be performed by qualified person for proper operation in accordance with all of the latest National Fire Protection Association NFPA Underwriters
