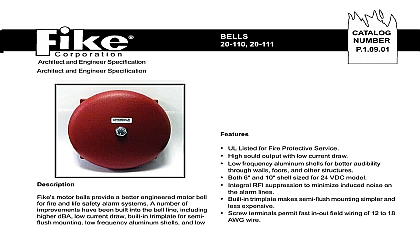

Fike P 1 09 01 Bells

BELLS motor bells provide a better engineered motor bell for fire and life alarm systems A number of improvements have been built into the line including higher dBA low current draw built in trimplate for mounting low frequency aluminum shells and low RFI noise motor is a durable high torque permanent magnet motor selected for high performance and long life Listed for Fire Protective Service High sound output with low current draw frequency aluminum shells for better audibility through walls and other structures 6 and 10 shell sized for 24 VDC model RFI suppression to minimize induced noise on the alarm lines trimplate makes semi flush mounting simpler and less expensive terminals permit fast in out field wiring of 12 to 18 AWG wire for DC supervision of alarm lines Operate on filtered or unfiltered DC Mount to a Standard 4 square backbox INFORMATION P N Size Voltage Current 10 CSFM FM BFP Built in trim plate eliminates need for SFP plate Typical dBA at 10 ft is measured in an anechoic chamber VDC models are U L rated for 18.0 to 31.0 VDC All DC models can be used with filtered and unfiltered full rectified voltage DIAGRAM Bell F A C P next signal E O L S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 4615 www fike com No P 1.09.01 1 AND ENGINEERS SPECIFICATIONS alarm signals shall be Fike vibrating Motor Bells or approved equal They shall be UL Listed for Fire Protective Shells shall be aluminum in 6 or 10 diameter Sound output at 10 feet shall be 92 dBA The bells shall a permanent magnet motor and suppression to minimize RFI They shall include a built in trimplate for mounting to standard 4 square backboxes or surface mounting backbox products must be used within their published specifications and must be PROPERLY specified applied installed maintained and operationally tested in accordance with their installation instructions at the time of installation at least twice a year or more often and in accordance with local state and federal codes regulations and laws application installation operation maintenance and testing must be performed by qualified personnel for operation in accordance with all of the latest National Fire Protection Association NFPA Underwriters UUL National Electric Code NEC Occupational Safety and Health Administration OSHA local state province district federal and other applicable building and fire standards guidelines regulations laws and codes but not limited to all appendices and amendments and the requirements of the local authority having AHJ Fike Corporation All Rights Reserved No P 1.09.01 1 August 2005 Specifications are subject to change without notice
