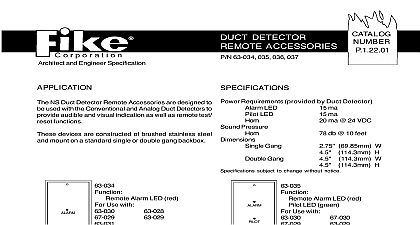

DUCT DETECTOR REMOTE ACCESSORIES NS Duct Detector Remote Accessories are designed to be used with the Conventional and Analog Duct Detectors to audible and visual indication as well as remote test reset functions devices are constructed of brushed stainless steel and mount on a standard single or double gang backbox Requirements provided by Duct Detector ma ma ma 24 VDC db 10 feet 69.85mm W 114.3mm H 114.3mm W 114.3mm H LED LED Pressure Gang Gang 63 034 Alarm LED red use with 67 029 63 031 67 030 63 028 63 029 63 036 Alarm LED red Test Reset Switch use with 67 029 63 031 67 030 63 029 63 035 Alarm LED red LED green use with 67 029 63 031 67 030 63 029 63 037 Alarm LED red LED green Test Reset Switch use with 67 029 63 031 67 030 63 029 63 038 Alarm Horn Alarm LED red LED green Test Reset Switch use with 67 029 63 031 67 030 S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 4615 www fike com No P 1.22.01 page is left blank intentionally Fike Corporation All Rights Reserved No P 1.22.01 July 2005 Specifications are subject to change without notice
