Fike P 1 32 01 Remote LCD Display

File Preview
File Preview
Click below to download for free

File Data

Name fike-p-1-32-01-remote-lcd-display-5043712698.pdf
Type PDF
Size 702.55 KB
Downloads

Text Preview

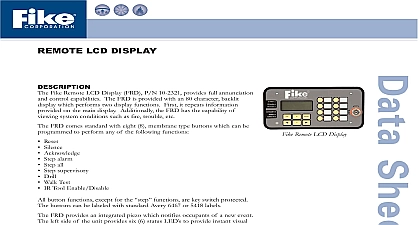

Fike Remote LCD Display UL Listed S3217 FM 3020297 LCD DISPLAY Fike Remote LCD Display FRD P N 10 2321 provides full and control capabilities The FRD is provided with an 80 backlit display which performs two display functions First it information provided on the main display Additionally the FRD has capability of viewing system conditions such as fire trouble etc FRD comes standard with eight 8 membrane type buttons which can programmed to perform any of the following functions alarm all supervisory Drill Walk Test Tool Enable Disable button functions except for the function are key switch protected buttons can be labeled with standard Avery 6467 or 5418 labels FRD provides an integrated piezo which notifies occupants of a new event left side of the unit provides six 6 status LED to provide instant visual of the system Normal Standby Backlight On present Backlight Piezo On condition present Voltage number FRD 31 Note 1 Distance feet Note 2 Red 1 Low capacitance wire for RS 485 communication such as Belden is required 2 FRD mounts directly to a standard 5 gang masonry backbox as RACO model 694 and provides for flush mounting without hardware S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 4615 www fike com No P 1.32.01 2 an event occurs on the Fike control panel the information is transmitted to the FRD instantly The FRD annunciates new event by sounding its local piezo lighting the corresponding LED and displaying the event in the 80 character window user can step through multiple events using the front panel or programmed STEP buttons They may also use the Fike to ACCESS and Silence the system acknowledge the vent to silence its piezo or reset the system Fike Corporation All Rights Reserved No P 1.32.01 2 December 2004 Specifications are subject to change without notice
