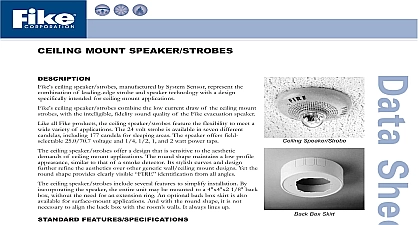

CEILING MOUNT SPEAKER STROBES ceiling speaker strobes manufactured by System Sensor represent the of leading edge strobe and speaker technology with a design intended for ceiling mount applications ceiling speaker strobes combine the low current draw of the ceiling mount with the intelligible fidelity sound quality of the Fike evacuation speaker all Fike products the ceiling speaker strobes feature the flexibility to meet a variety of applications The 24 volt strobe is available in seven different including 177 candela for sleeping areas The speaker offers field 25.0 70.7 voltage and 1 4 1 2 1 and 2 watt power taps ceiling speaker strobes offer a design that is sensitive to the aesthetic of ceiling mount applications The round shape maintains a low profile similar to that of a smoke detector Its stylish curves and design refine the aesthetics over other generic wall ceiling mount designs Yet the shape provides clearly visible identification from all angles ceiling speaker strobes include several features to simplify installation By the speaker the entire unit may be mounted to a 4 x4 x2 1 8 back without the need for an extension ring An optional back box skirt is also for surface mount applications And with the round shape it is not to align the back box with the room walls It always lines up FEATURES SPECIFICATIONS Combines SpectrAlert ceiling mount and speaker technology Low current draw Fidelity sound quality 24 volt models available with 15 30 75 95 115 and 177 strobes 25.0 and 70.7 volt speaker with four power taps Ceiling specific shape profile and Strobe is synchronizable with 20 Sync module Mounts to 4 x4 x2 1 8 back box an extension ring Round shape offers greater flexibility Dimensions 6.8 diameter Strobe Operating Voltage 24 VDC FWR unfiltered Mounting 4 x4 x2 1 8 back box Operating Voltage Range 24 V 16 V 177cd model tested at 20 FWR and 16 VDC Input Terminals 12 to 18 AWG Indoor Operating Temperature 32 120 F 0 to 49 Operating Voltage Range Module 24 V V 177cd model tested at V FWR and 17 VDC U S Patent Nos 6,049,446 D424,465 Specifications Input Voltage 25.0 or 70.7 Vrms Input Terminals 12 to 18 AWG Frequency Range 400 to 4000 Hz Series is UL listed from 400 to but will provide an output 100 to 10,000 Hz Power Taps 1 4 1 2 1 and 2 watts Speaker Strobe Box Skirt CSFM 7125 1209 201 7135 FM Approved MEA Approved UL S5512 S4011 Output UL Reverberant 10 ft Watt Watt Watts Assumes flush mount installation Output UL Anechoic 10 ft Watt Watt Watts No P 1.48.01 S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 4615 www fike com MODELS Model Model Box Skirt Diagrams Operating Current Strobe mA RMS Operating Current Strobe mA RMS Current mA Current mA Current mA Standard Installation with Back Box Skirt AND ENGINEERING SPECIFICATIONS speaker strobe shall be a System Sensor Model listed to UL1480 and UL 1971 and be approved for fire protective systems Speaker shall be capable of operating at 25.0 or 70.7 nominal Vrms and shall have a frequency range of 400 to 4000 Hz shall have power taps which are selected by shunts The strobe shall comply with the NFPA72 requirements for visible signaling flashing at 1 Hz over the strobe entire operating voltage range The strobe light shall consist of a xenon flash tube and lens reflector system Fike Corporation All Rights Reserved No P 1.48.01 August 2005 Specifications are subject to change without notice
