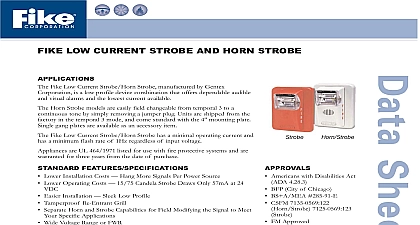

LOW CURRENT STROBE AND HORN STROBE Fike Low Current Strobe Horn Strobe manufactured by Gentex is a low profile device combination that offers dependable audible visual alarms and the lowest current available Horn Strobe models are easily field changeable from temporal 3 to a tone by simply removing a jumper plug Units are shipped from the in the temporal 3 mode and come standard with the 4 mounting plate gang plates are available as an accessory item Fike Low Current Strobe Horn Strobe has a minimal operating current and a minimum flash rate of 1Hz regardless of input voltage are UL 464 1971 listed for use with fire protective systems and are for three years from the date of purchase FEATURES SPECIFICATIONS Lower Installation Costs Hang More Signals Per Power Source Lower Operating Costs 15 75 Candela Strobe Draws Only 57mA at 24 Easier Installation Sleek Low Profile Tamperproof Re Entrant Grill Separate Horn and Strobe Capabilities for Field Modifying the Signal to Meet Specific Applications Wide Voltage Range or FWR Input Terminals 12 to 18 AWG Temporal 3 or Continuous Tone Horn Piezo Frequency 3100Hz nominal Synchronize Strobe and or Horn by Using the Fike AVS Series Control see Gentex Technical Bulletin 015 Silence Horn While Strobes Remain Energized Using Only 2 Power Wires Used With the Fike AVS Series Control Module Field Selectable 2 or 4 Wire Operation Shipped from the Factory as 2 Wire Available in Red or Off White 15 75 75 and 110 Candela Strobe Meets or Exceeds ADA 4.28.3 Requirements UL 464 UL 1971 and UL 1638 Listed Americans with Disabilities Act 4.28.3 BFP City of Chicago BS A MEA 285 91 E CSFM 7135 0569 122 7125 0569 123 FM Approved NFPA 72 UL ULC Dual Listed 464 1638 S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 4615 www fike com No P 1.59.01 1 MODELS VDC Low Profile Remote Strobe Wall Mount Strobe 24VDC 1971 P N P N UL 1971 75 UL 1638 UL 1971 75 UL 1638 UL 1971 UL 1638 UL 1971 UL 1638 VDC Low Profile Remote Horn Strobe Wall Mount P N P N Strobe 24 VDC Current 1971 Anechoic dBA 10 Ft The Fike Low Current Strobe Horn Strobe is not listed for outdoor use Operating temperature 32 120 0 to 49 C nominal and peak current across UL regulated voltage range for filtered DC power and unfiltered FWR Full Wave Rectified power see manual does not recommend using a coded or pulsing signaling circuit with any of our strobe products see Gentex Technical Bulletin 014 for more Locations selection in temporal jumpers J1 J2 to select horn and power input Single gang plate mounts on single gang boxes only 4 plate on signle gang double gang or 4 square boxes Diagram Fike Low Frequency Evacuaction Signals with AVS Series Synchronization Module See Gentex Technical Bulletin 015 for proper synchronization module for application Mode Ratings Over Input Voltage Range of 16 33V 10Ft UL464 dB 10Ft UL464 dB 3 Chime 2400Hz Mechanical 2 2400 Hz 3 Mechanical Operating the horn in this mode at this voltage will result in not meeting the minimum UL reverberant sound level required for public mode protection service These settings are acceptable only for private mode fire alarm use Use the high dBA setting for public mode application applicable when using the chime tone The chime tone is always private mode The sound output for the temporal 3 tone is rated lower since the time the horn is off horn is producing a tone in the temporal 3 mode its sound pressure is the same as the continuous mode averaged into the sound output rating While Chime AND ENGINEERING SPECIFICATIONS audible and or visible signal shall be Gentex or approved equal and shall be listed by Underwriters Laboratories Inc UL 1971 UL 1638 and or UL 464 The notification appliance shall also be listed with the California State Fire Marshall and the Bureau of Standards and Appeals NYC notification appliance combination audible visible and audible units only shall produce a peak sound output of or greater as measured in an anechoic chamber The signaling appliance shall also have the capability to silence the signal while leaving the visible signal energized with the use of a single pair of power wires Additionally the user be able to select either continuous or temporal tone output with the temporal signal having the ability to be audible visible and visible signaling appliance shall also maintain a minimum flash rate of 1Hz or greater regardless of input voltage The appliance shall also be capable of meeting the candela requirements of the ADA 75Cd for the listed UL 1971 UL 1638 listed models The appliance shall have an operating current of 63mA or less at 24 for the 15 75Cd for the strobe circuit appliance shall be polarized to allow for electrical supervision of the system wiring The unit shall be provided with a bracket with terminals with barriers for input output wiring and be able to mount to a single gang or double box or double workbox without the use of an adapter plate The unit shall have an input voltage range of 16 33 volts either direct current of full wave rectified power The appliance shall be capable of test supervision without wires Also the appliance shall be capable of mounting to a surface back box Fike Corporation All Rights Reserved No P 1.59.01 1 August 2005 Specifications are subject to change without notice
