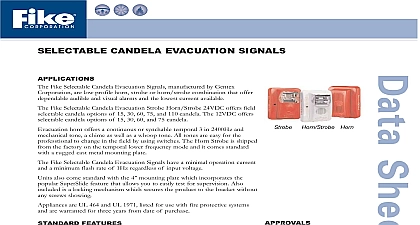

Fike P 1 62 01 Selectable Candela Evacuation Signals

SELECTABLE CANDELA EVACUATION SIGNALS Fike Selectable Candela Evacuation Signals manufactured by Gentex are low profile horn strobe or horn strobe combination that offer audible and visual alarms and the lowest current available Fike Selectable Candela Evacuation Strobe Horn Strobe 24VDC offers field candela options of 15 30 60 75 and 110 candela The 12VDC offers candela options of 15 30 60 and 75 candela horn offers a continuous or synchable temporal 3 in 2400Hz and tone a chime as well as a whoop tone All tones are easy for the to change in the field by using switches The Horn Strobe is shipped the factory on the temporal lower frequency mode and it comes standard a rugged cast metal mounting plate Fike Selectable Candela Evacuation Signals have a minimal operation current a minimum flash rate of 1Hz regardless of input voltage also come standard with the 4 mounting plate which incorporates the SuperSlide feature that allows you to easily test for supervision Also is a locking mechanism which secures the product to the bracket without screws showing are UL 464 and UL 1971 listed for use with fire protective systems are warranted for three years from date of purchase FEATURES 24 VDC units have field selectable candela options of 15 30 60 75 and 110 12 VDC units have field selectable candela options of 15 30 60 and 75 The horn is available in 12 or 24 Volt Prewire Entire System Then Install Your Signals Ease of Supervision Testing SuperSlide Lower Installation and Operating Costs Input Terminals 12 to 18 AWG Switch Selection for High or Low dBA Switch for Chime Whoop Mechanical and 2400Hz Tone Switch for Continuous or Temporal 3 not available on whoop tone Tamperproof Re entrant Grill Surface Mount with the Surface Mount Box Synchronize Strobe and or Horn by Using the Series Control Module Silence Horn While Strobes Remain Flashing Rugged Die Cast Metal Mounting Bracket True Evacuation Tone Wide Voltage Range 8 17.5 VDC 12 Volt Models VDC or FWR 24 Volt Models Available in Red or Off White Horn Strobe Horn Americans with Disabilities Act 4.28.3 BFP City of Chicago BS A MEA 285 91 E CSFM 7135 0569 122 Horn 7125 0569 123 Strobe FM Approved NFPA 72 UL ULC Dual Listed 464 1971 S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 4615 www fike com No P 1.62.01 1 MODELS or 24 Volt Low Profile Evacuation Horn Wall Mount P N P N Voltage VDC VDC VDC VDC or 24 Volt Selectable Candela Low Profile Evacuation Strobe Wall Mount P N P N Plain no lettering Plain no lettering Plain Plain Voltage VDC VDC VDC VDC VDC VDC VDC VDC 1971 30 60 75 30 60 75 30 60 75 30 60 75 30 60 75 110 30 60 75 110 30 60 75 110 30 60 75 110 Plain Plain Plain Plain Voltage VDC VDC VDC VDC VDC VDC VDC VDC 1971 30 60 75 30 60 75 30 60 75 30 60 75 30 60 75 110 30 60 75 110 30 60 75 110 30 60 75 110 or 24 Volt Selectable Candela Low Profile Evacuation Horn Strobe Wall Mount Ratings Over Input Voltage Range of 8 17.5V Mode 10 Ft Per High 10 Ft Per Low mA Low mA High 3 2400Hz 3 Mechanical 3 Chime 2400Hz Mechanical Chime Mode 3 2400Hz 3 Mechanical 3 Chime 2400Hz Mechanical Chime 10Ft Per High dB Ratings Over Input Voltage Range of 16 33V 10 Ft Per Low dB mA mA The Strobe Horn Strobes not listed for outdoor use temperature 32 120 to 49 C For nominal and peak across UL regulated voltage for filtered DC power and FWR Full Wave power see installation 12 volt models are DC only does not recommend using a coded pulsing signaling circuit with any of strobe products see Gentex Bulletin Number 014 Strobe Current 12VDC 24VDC Operating the horn in this mode at voltage will result in not meeting minimum UL reverberant sound required for public mode fire service These settings are only for private mode fire use Use the high dBA setting public mode application not when using the chime tone chime tone is always private The sound output for the 3 tone is rated lower since the the horn is off averaged into sound output rating While the is producing a tone in the 3 mode its sound pressure is same as the continuous mode SuperSlide Locations Bezel Cast Metal Mounting Plate Mounts to a single gang gang 4 square boxes or GSB box both sides of bezel and pull a downward and outward Strobe Horn Strobe Wiring Diagrams Diagram Strobe Horn Strobe with AVS Series Synchronization Module See Gentex Technical Bulletin 015 for proper synchronization module for application synchronizing the Strobe or Horn Strobe the AVSM synchronization module MUST be used AND ENGINEERING SPECIFICATIONS audible and or visible signal shall be a Gentex Selectable Candela Evacuation Signal or approved equal and shall be by Underwriters Laboratories Inc per UL 1971and or UL 464 The notification appliance shall also be listed with the State Fire Marshall CSFM and the Bureau of Standards and Appeals NYC notification appliance combination audible visible shall produce a peak sound output of 100dBA or greater at 12 or as measured in an anechoic chamber The signaling appliance shall also have the capability to silence the audible signal leaving the visible signal energized with the use of a single pair of power wires Additionally the user shall be able to either continuous or temporal tone output with the temporal signal having the ability to be synchronized shall be capable of being installed so that any unauthorized attempt to change the candela setting will result in a signal at the fire alarm control panel audible visible and visible signaling appliance shall also maintain a minimum flash rate of 1Hz or greater regardless of input voltage The appliance shall have an operating current of 55mA or less at 12 or 24 VDC for the 15Cd strobe appliance shall be polarized to allow for electrical supervision of the system wiring The unit shall be provided with a bracket with terminals with barriers for input output wiring and be able to mount to a single gang or double gang or double workbox without the use of an adapter plate The unit shall have an input voltage range of 16 33 volts with direct current of full wa
