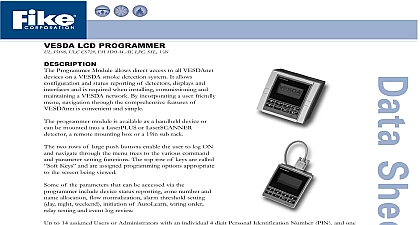

Fike V 1 03 01 LCD Programmer

VESDA LCD PROGRAMMER S5198 ULC CS729 FM 1DOA4 AY LPC SSL VdS Programmer Module allows direct access to all VESDAnet on a VESDA smoke detection system It allows and status reporting of detectors displays and and is required when installing commissioning and a VESDA network By incorporating a user friendly navigation through the comprehensive features of is convenient and simple programmer module is available as a handheld device or be mounted into a LaserPLUS or LaserSCANNER a remote mounting box or a 19in sub rack two rows of large push buttons enable the user to log ON navigate through the menu trees to the various command parameter setting functions The top row of keys are called Keys and are assigned programming options appropriate the screen being viewed of the parameters that can be accessed via the include device status reporting zone number and allocation flow normalization alarm threshold setting night weekend initiation of AutoLearn wiring order testing and event log review to 14 assigned Users or Administrators with an individual 4 digit Personal Identification Number PIN and one can log onto a VESDAnet system under one of three levels of access which are password protected USR is only able to view parameters check status alarms and rest the system ADM has access to most commands and programming parameters DST is the topmost level and has unlimited access to all commands and parameters in the system PIN numbers can be overcome by obtaining a once only pass number from your VESDA distributor programmer automatically logs OFF when not in use for more than 10 minutes The user is prompted with a sound at 1 minute and at 15 seconds before log OFF Any key may be pressed to cancel the automatic log process Configuration FUNCTIONS Detector Zone Configuration and set up Detector Zone Control Status Threshold and Detector Sensitivity Settings Log Interrogation and Testing Date and Time and User Configuration Fault Diagnostic S 10th Street P O Box 610 Blue Springs Missouri 64013 0610 U S A 816 229 3405 816 229 4615 www fike com No V 1.03.01 Friendly Menu System Multiple Languages Point Access to Entire VESDAnet System and Fault Simulation Wiring Order Communications Failures Security Hand Held or Remote Mounting Logoff when Inactive LCD Screen to 30VDC x 5.1 x 1.21 x 130 x 30 Held x 5.3 x 2.4 x 135 x 60 x 5.9 x 3.5 x 150 x 90 connector to Head Card or to expansion pin D type connector VESDAnet required connect to detector VESDAnet field wiring Screw terminal blocks 30 12 on another VESDA device remote VESDAnet socket 0.2 2.5mm2 Voltage W mA 24 WHD Display Size Time Out Button Keys Access Temperature Functions Accessed Devices Addressed Devices x 1.45in 70mm x 37mm full graphic display large characters 8 21 characters per line adjustable backlit screen with contrast control minutes defaults to log on screen Beeps at 1 minutes and then 15 before logoff rows x 4 keys each 0.75in x 0.50in 19mm x 12mm characters user ID digit personal identification number PIN per User Number of User Levels USR 3 ADM 1 DST ID User operator level Administrator access most functions VESDA distributor access all functions 32 to 103 0 to 39 10 99 RH non condensing software version Alarm Faults Flow readings lockout name 21 chars Thresholds Alert Action Fire 1 Fire 2 delays 0 60 seconds Options Log up to 18,000 events number and name 21 chars in use pipe 1 to 4 Speed Flow control of filter change configuration VESDA devices maximum High Level Interface Relay modules Displays Displays Displays Relays MOUNTING BOX SUB RACK INFORMATION VSP 001 VRT 100 Module mounts to LaserPLUS or LaserSCANNER with remote termination card no relay remote mount Fike Corporation All Rights Reserved No V 1.03.01 July 2005 Specifications are subject to change without notice document may not be reproduced in whole or in part by any means without the prior express written permission of the copyright owner Copyright 2003 Vision Security Pty Ltd ABN 008 009 514 The manufacturer reserves the right to change designs or specifications without obligation and without further notice VESDA LaserPLUS LaserSCANNER LaserCOMPACT VESDAnet VESDAlink ASPIRE AutoLearn VSM VConfig and InfoWORKS are trademarks used under by the distributor
