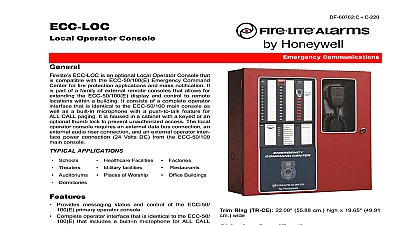

Fire-Lite ECC-LOC Local Operator Console

ECC LOC Operator Console ECC LOC is an optional Local Operator Console is compatible with the ECC 50 100 Emergency Command for fire protection applications and mass notification It part of a family of external remote consoles that allows for the ECC 50 100 display and control to remote loca within a building It consists of a complete operator inter that is identical to the ECC 50 100 main console as well a built in microphone with a push to talk feature for ALL paging It is housed in a cabinet with a key or an optional lock to prevent unauthorized access The local operator requires an external data bus connection an external riser connection and an external operator interface connection 24 Volts DC from the ECC 50 100 main APPLICATIONS ECC LOC is used in applications that require single chan voice evacuation for buildings with an occupancy greater 1,000 occupants Provides messaging status and control of the ECC 50 100 operator console Complete operator interface that is identical to the ECC 50 that includes a built in microphone for ALL CALL pag Certified for seismic applications A maximum of eight ECC LOCs can be connected to an primary operating console Built in microphone with push to talk feature that can be for ALL CALL paging Fourteen programmable message buttons that can be used activate all speaker circuits remotely Sturdy cabinet design with a keyed lock to prevent unautho access Optional thumb lock available Simple and straightforward user interface Specifications POWER REQUIREMENTS 24VDC non resettable power from the ECC50 100 Operator Interface Power Non supervised ECC 50 100 Product Manual P N LS10001 000FL E for and alarm current requirements as well as battery cal Specifications 19.0 48.26 cm high x 16.65 42.29 cm wide x 5.2 deep 19.26 48.92cm high x 16.821 42.73cm wide x 670 deep Ring TR CE 22.00 55.88 cm high x 19.65 49.91 wide DF 60814 B Communications Specifications 18.44 lbs 8.36 kg Listings and Approvals listings and approvals below apply to the basic ECC 50 Fire emergency voice evacuation system In some cases modules may not be listed by certain approval agen or listing may be in process Consult factory for latest list status UL ULC Listed S2424 FM Listed and Codes ECC LOC complies with the following ULC Standards NFPA 72 Fire Alarm system requirements and Interna Building Codes CAN ULC S527 2012 IBC 2009 IBC 2006 IBC 2003 IBC 2000 Seis 7 28 2015 Page 1 of 4 Circuit Circuits TB21 amplifier expander battery J7 operator console CHG 120F charger charger Emergency Command Center Possible Configurations 2 of 4 Canadian DF 60814 B 7 28 2015 VISIBLE WITH DOOR and Indicators BUTTON CONTROLS All Call MNS Control System Control Speaker Select 1 24 Message Select Buttons 1 8 Diagnostic Select Trouble Silence Console Lamp Test STATUS Fire System Active green MNS Control green System Control green System in Use green Speaker Zone 1 24 Active green Speaker Zone 1 24 Fault yellow OK to Page green Microphone Trouble yellow Message 1 8 Active red Message 1 8 Fault yellow Remote Amplifier 1 8 Fault yellow LOC RM 1 8 Fault yellow LOC RM 1 8 Active green Main Console Fault yellow AC Power green Ground Fault yellow Charger Fault yellow Battery Fault yellow Data Bus Fault yellow NAC Fault yellow NAC Active green System Trouble yellow Audio Riser Fault yellow STATUS INDICATORS VISIBLE WITH DOOR AND PANEL OPEN Speaker Volume Control Fault yellow Option Card Fault yellow Amplifier Over Current Fault yellow Line Information Ordering Local Operator Console Complete user interface Primary operating Console 50 Watt 25VRMS speaker zone emergency voice evacuation system microphone built in tone generator and 14 recordable Please refer to the data sheet DF 60815 for more Speaker Circuit Zone Expander Module 25V 50 watt audio amplifier module Adding a speaker circuit increases the total ECC 50 100 power to 100 watts or can also be used as a backup amplifier 70V 50 watt audio amplifier module Adding a speaker circuit increases the total ECC 50 100 power to 100 watts or can also be used as a backup amplifier 70V Transformer conversion module for 70V Addressable Mini Monitor Module SLC Line Isolation Module Optional Trim Ring 17.624 high 44.77 cm x 16.0 40.64 cm 25 to 75 ampere hours AH external battery charger 25 120 ampere hours AH external battery charger Replacement microphone only Battery 12volt 7.0AH Two required Battery 12volt 12.0AH Two required Battery 12volt 18.0AH Two required Optional Thumb Latch Non UL listed and Humidity ranges system meets ULC requirements for operation at 0 49 C F and at a relative humidity 93 2 RH non at 32 2 90 3 However the useful of the system standby batteries and the electronic com may be adversely affected by extreme temperature and humidity Therefore it is recommended that this and its peripherals be installed in an environment with normal room temperature of 15 27 C 60 80 F DF 60814 B 7 28 2015 Page 3 of 4 Accessories Optional Trim Ring 17.624 high 44.77 cm x 16.0 40.64 cm Seismic kit for the ECC LOC Please to document 53880 for requirements on mounting the for seismic applications Requirements Product manual part number LS10028 000FL E for wiring requirements Alarms is a registered trademark of Honeywell International Inc by Honeywell International Inc All rights reserved Unauthorized use this document is strictly prohibited document is not intended to be used for purposes We try to keep our prod information up to date and accurate We cover all specific applications or anticipate requirements All specifications are subject to without notice more information contact Fire Alarms 289 1114 Whitmore Road Ontario LZL 7Z4 4 of 4 Canadian DF 60814 B 7 28 2015
