Kidde 3102420-EN R01 SP & DP Fire Alarm Stations

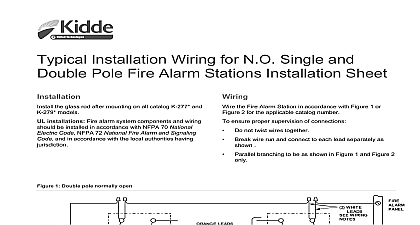

File Preview

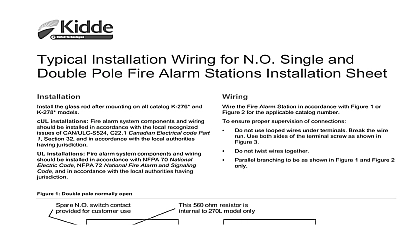

File Preview
Click below to download for free

File Data

Name kidde-3102420-en-r01-sp-dp-fire-alarm-stations-9260318754.pdf
Type PDF
Size 586.35 KB
Downloads

Text Preview

Installation Wiring for Single and Double Fire Alarm Stations Installation Sheet the Fire Alarm Station in accordance with Figure 1 or 2 for the applicable catalog number ensure proper supervision of connections Do not use looped wires under terminals Break the wire Use both sides of the terminal screw as shown in 3 Do not twist wire together branching to be as shown in Figure 1 and Figure 2 the glass rod after mounting on all catalog K 276 and models installations Fire alarm system components and wiring be installed in accordance with the local recognized of CAN ULC S524 C22.1 Canadian Electrical code Part Section 32 and in accordance with the local authorities jurisdiction installations Fire alarm system components and wiring be installed in accordance with NFPA 70 National Code NFPA 72 National Fire Alarm and Signaling and in accordance with the local authorities having 1 Double pole normally open to spare N O switch contact for customer use numbers 2 3102420 EN REV 01 ISS 27JUN16 numbers UL only 2 Single pole normally open 3 Wire break example information contact information see www kiddelifesafety com 2016 Walter Kidde Portable Equipment Inc rights reserved 2 3102420 EN REV 01 ISS 27JUN16
