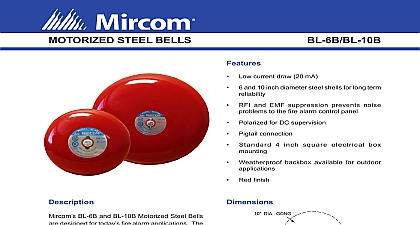

Mircom CAT-3025 BL-6B BL-10B Motorized Steel Bells (English)

NOTIFICATION APPLIANCES current draw 20 mA and 10 inch diameter steel shells for long term RFI and EMF suppression prevents noise problems the fire alarm control panel Polarized for DC supervision Pigtail connection Standard 4 inch square electrical box mounting Weatherproof backbox available for outdoor Red finish BL 6B BL 10B Steel Bells BL 6B and BL 10B Motorized Steel Bells designed for today fire alarm applications The steel construction provides loud resonant tones for fire alarm installations BL 6B and BL 10B bells use a varistor suppression to prevent RFI and EMF noise problems to fire alarm control panels motor used on the BL 6B and BL 10B bells at a very low current 20 mA to maximize the of bells per circuit Both models are equipped a pigtail connection for wiring the BL 6B and BL 10B mount on a standard square electrical box for indoor use or on a BB weatherproof backbox for outdoor applications on a 4 octagon outlet box requires the MP Universal Mounting Plate 25 Interchange Way Vaughan Toronto Ontario L4K 5W3 Telephone 905 695 3545 Fax 905 660 4113 Web Page www secutron com 4575 Witmer Industrial Estates Niagara Falls NY 14305 Telephone 888 695 3545 Fax 888 660 4113 E mail mail secutron com Catalog Number 3025 Not to be used for installation purposes INC 1 of 2 3firealarmresources com Instructions SQUARE OUTLET BOX REAR VIEW BELLS OBSERVE POLARITY AXIS MORE 6dB MORE 6dB FOR SURFACE OR striker facing down Instructions Remove the bell Wire the bell in the circuit Mount ball mechanism on 4 square standard outlet box with Replace the bell The bell must be mounted a minimum of 8 ft above the floor Polarized bell provides red and black lead wires as close to the ceiling as possible you install the bell polarity must be observed electrical supervision is required use in and out leads as shown Observe polarity Red wires positive Black wires negative For installation in Canada installation must comply to Electrical Code Part 1 ULC S524 01 the standard the installation of fire alarm system and only subject to acceptance of local AHJ For indoor use Motor fire bell only For outdoor use Motor fire alarm bell attached to waterproof Mounting to a 4 octagon box requires MP 101 mounting plate only Motorized Steel Bell Motorized Steel Bell VDC VDC Current Level at 10 ft dB mA mA Informtion Motorized Steel Bell Motorized Steel Bell Backbox Mounting Plate Hood for 10 Bell Backbox 2 of 2 reserves the right to make changes at any time without notice in prices colors materials components equipment specifications and models and also to discontinue models Number 3025 Not to be used for installation purposes INC is a trademark of Secutron Inc 3firealarmresources com
