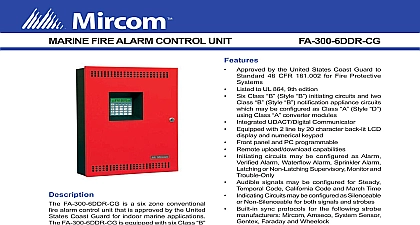

Mircom CAT-5668 FA-300-6DDR-CG Datasheet

MARINE FIRE ALARM CONTROL UNIT Approved by the United States Coast Guard to 46 CFR 161.002 for Fire Protective to UL 864 9th edition Six Class Style initiating circuits and two Style notification appliance circuits may be configured as Class Style Class converter modules UDACT Digital Communicator Equipped with 2 line by 20 character back lit LCD and numerical keypad Front panel and PC programmable Remote upload download capabilities circuits may be configured as Alarm Alarm Waterflow Alarm Sprinkler Alarm or Non Latching Supervisory Monitor and Audible signals may be configured for Steady Code California Code and March Time Circuits may be configured as Silenceable Non Silenceable for both signals and strobes Built in sync protocols for the following strobe Mircom Amseco System Sensor Faraday and Wheelock Relay contacts for Common Alarm Auxiliary Disconnectable Common Supervisory and Trouble Configurable Signal Silence Inhibit Auto Signal and One Man Walk Test Subsequent Alarm Supervisory and Trouble RS 485 Interface for Remote LED Annunciators Annunciators and Remote Smart Relay for a Remote Trouble Indicator RTI Two event history logs comprised of a 200 event log for alarm related events and a 200 event log for all other events Amp Power Supply Optional modules for additional internal relay circuits City Tie Polarity Reversal Optional trim ring for semi flush mounting FA 300 6DDR CG is a six zone conventional alarm control unit that is approved by the United Coast Guard for indoor marine applications FA 300 6DDR CG is equipped with six Class initiating circuits and two Class Style notification circuits rated 1.7 Amps maximum Class A converter modules are available for the initiating and notification appliance circuits control unit features a 40 character back lit LCD numerical keypad integrated UDACT Digital and brackets to secure the internal FA 300 6DDR CG is configurable by the keypad onsite programming or by a PC for both onsite remote programming The control unit is easy to and simple to operate and configure enabling installer to configure the system to meet their requirements FA 300 6DDR CG is also equipped with a 5 Amp supply 4 wire resettable smoke power supply max an interface for a Remote Trouble RTI and an RS 485 interface for remote or LED annunciators and Remote Smart Relay It comes complete with a red door black durable CAT 30 lock and key and space mount up to 12 AH batteries An optional trim ring available for semi flush mounting reserves the right to make changes at any time without notice in prices colours materials components equipment specifications and models and also to discontinue models TO BE USED FOR INSTALLATION PURPOSES States Guard NUMBER Modules Six Initiating Circuit Class Converter ICAC 306 converts the six Class Style circuits on the FA 300 6DDR CG main to Class Style circuits The ICAC 306 equipped with wire leads to connect to the main Two Indicating Circuit Class Module OCAC 302 converts the two Class Style appliance circuits on the FA 300 6DDR main board to Class Style circuits The is equipped with wire leads to connect to main board Polarity Reversal City Tie Module PR 300 provides outputs for city box and polarity applications As a city tie module the PR provides an interface between the control panel circuits and a master box It provides signal transmission for systems that comply with NFPA requirements for Auxiliary Systems As a polarity reversal module PR 300 provides an interface between the control and a reverse polarity receiver It provides off signal transmission for systems that must with NFPA requirements Relay Circuit Adder Modules RM 306 provides six configurable relay circuits 28 VDC 1 amp resistive The RM 312 twelve Form C configurable relay circuits 28 VDC 1 amp resistive On both models circuit can be configured as a Normally Open or Normally Closed N C contact Each relay equipped with an LED that is lit when the relay is The relays can be configured as relay zone 1 to 1 Common on Alarm Common on or programmable for logical or adjacent configuration An adjacent zone configuration turn on adjacent zone when configured zone is A chaining configuration allows for multiple to turn on mA Input 60Hz 240VAC 50Hz Power standby batteries Capability to 12 AH Consumption mA Circuits limited 24VDC unfiltered 1.7A 49 per circuit 5 Amps supply non resetable limited 22.3VDC regulated 500mA max smoke supply resetable limited 22.3VDC regulated 300mA max supply full wave rectified limited 24VDC unfiltered 1.7A max at 49 Relays Common alarm supv trb and auxiliary alarm 28VDC 1A max x 14.5 x 4.5 x 17 TO BE USED FOR INSTALLATION PURPOSES 5668 2 of 4 Annunciators Remote LCD Annunciator RAM 300LCDR provides LCD remote annunciation a 2 line by 20 character LCD display The RAM provides control switches for System Reset Silence Fire Drill and Acknowledge as well as numeric keypad to access the menu functions The control functions can be disabled on a per basis The RAM 300LCDR has LED indicators A C On Alarm Supervisory Trouble and CPU The RAM 300LCDR comes complete with a red and a CAT 30 Lock and key Remote LED Annunciators RAM 208R and RAM 216R provide 8 or 16 points of LED annunciation Both models feature LEDs which are auto configurable for Alarm red or Supervisory amber The LED have indicators for A C On Common and Signal Silence and control switches for Reset Signal Silence Lamp Test and Buzzer The RAM 208R and RAM 216R are equipped a keyswitch which allows for enabling and disabling of Common Control functions Both models are available a red finish and mount in a 4 gang electrical box Smart Relay Module SRM 312 provides twelve configurable relay rated 28 VDC 1 amp resistive Each can be configured as a Normally Open N O Normally Closed N C contact Each relay is with an LED that is lit when the relay is The relays can be configured as relay zone 1 to 1 Common on Alarm Common on or programmable for a logical or adjacent configuration An adjacent zone configuration turn on an adjacent zone when the configured is active A chaining configuration allows for relays to turn on The SRM 312 is DIP switch and connects to the RS 485 bus The come complete with a red enclosure and CAT 30 lock and key Remote LED Annunciator RAM 1016TZDS Remote LED Annunciator sixteen points of LED annunciation The comes standard with bi coloured LEDs are automatically configured for either Alarm or Supervisory Amber as well individual trouble The RAM 1016TZDS has indicators for A C Common Trouble and Signal Silence and controls System Reset Lamp Test Fire Drill Buzzer Silence Signal Silence In addition it allows for the control to be disabled on a per function basis The mount in a BB 1001 R enclosure Remote Trouble Indicator Remote Trouble Ind
