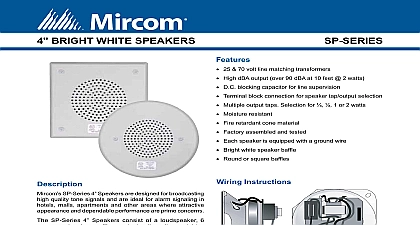

Mircom CAT-5702 SP Series 4 Inch Bright White Speakers (English)

4 SPEAKERS 70 volt line matching transformers High dBA output over 90 dBA at 10 feet 2 watts D C blocking capacitor for line supervision Terminal block connection for speaker tap output Multiple output taps Selection for 1 or 2 watts Moisture resistant Fire retardant cone material Factory assembled and tested Each speaker is equipped with a ground wire Bright white speaker baffle Round or square baffles Instructions wattage is selected by wiring into the corresponding on the speaker terminal block SP Series 4 Speakers are designed for high quality tone signals and are ideal for signaling in hotels malls apartments and other where attractive appearance and dependable are prime concerns SP Series 4 Speakers consist of a loudspeaker 6 magnet a low profile constant voltage line matching a D C blocking capacitor and an all steel baffle finished in a bright white colour The 25 70 volt transformers are of the matching type and output power taps of 1 and 2 watt s Tap is made by wiring into the appropriate slot on speaker terminal block The SP Series speakers easily using the surface or flush backboxes fire alarm speakers are specially designed high quality emergency fire alarm signals and communication These units must be used with QX 5000 Voice Evacuation System or any alarm equipment approved by Underwriters of Canada ULC reserves the right to make changes at any time without notice in prices colours materials components equipment specifications and models and also to discontinue models TO BE USED FOR INSTALLATION PURPOSES NUMBER Specifications dBA 10 FT TAP TYPICAL dBA WATT WATT WATT WATT Sound Pressure Level is measured using the transformer tap shown at a distance of 10 feet 3 meters This measurement is obtained accordance with ULC Standard CAN ULC S541 M87 All Mircom enclosures are equipped with a ground screw hole Each speaker unit is equipped with a ground wire Instructions KNOCKOUTS PLACES 1 1 8 7 8 4 ROUND SPEAKER FLUSH MOUNTING BACKBOX SP 104A SPEAKER 4 SQUARE SPEAKER FLUSH MOUNTING BACKBOX SP 204A SPEAKER SURFACE MOUNTING BACKBOX SP 204A SPEAKER KNOCKOUTS PLACES 1 1 8 7 8 ALARM PANEL OF LINE ON DEVICE NOT LOOP SIGNAL CIRCUIT FIELD AROUND TERMINALS SUPERVISION REQUIRES RUN TO BE BROKEN AT EACH END TO BE USED FOR INSTALLATION PURPOSES by FOR MODELS WITH STROBE FEATURE STROBE POWER POWER Interchange Way Ontario L4K 5W3 905 660 4655 905 660 4113 Witmer Industrial Estates Falls NY 14305 Free 888 660 4655 Toll Free 888 660 4113 page http www mircom com Email mail mircom com 5702 1
