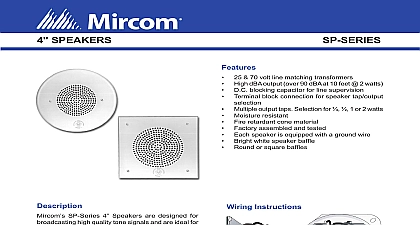

Mircom CAT-5705 SP Series 4 Inch Retrofit Speakers (English)

4 RETROFIT SPEAKERS 70 volt line matching transformers High dBA output over 90 dBA at 10 feet 2 watts D C blocking capacitor for line supervision Terminal block connection for speaker tap output Multiple output taps Selection for 1 or 2 Moisture resistant Fire retardant cone material Factory assembled and tested Each speaker is equipped with a ground wire White speaker baffle Easily mounts over existing apartment intercom stations Instructions wattage is selected by wiring into the corresponding on the speaker terminal block SP 304A 25W and SP 304A 70W are retrofit designed for broadcasting high quality tone and are ideal for alarm signaling in hotels apartments and other areas where attractive and dependable performance are prime SP Series 4 Retrofit Speakers consist of a 6 oz magnet a low profile constant voltage matching transformer a D C blocking capacitor and all steel speaker baffle finished in an off white colour 25 and 70 volt transformers are of the matching type include output power taps of 1 and 2 watt s selection is made by wiring into the appropriate slot the speaker terminal block SP Series 4 Retrofit Speakers mount over existing intercom suite stations The suite stations can be used are Mircom Mirtone IS 400 Series Canadian Sound and Signal CS 10W and intercom suite stations fire alarm speakers are specially designed high quality emergency fire alarm signals and voice These units must be used with QX 5000 Voice Evacuation system or with voice alarm equipment approved by Underwriters of Canada ULC reserves the right to make changes at any time without notice in prices colours materials components equipment specifications and models and also to discontinue models TO BE USED FOR INSTALLATION PURPOSES NUMBER Specifications dBA 10 FT TAP TYPICAL dBA WATT WATT WATT WATT SHAPE Sound Pressure Level is measured using the transformer tap shown at a distance of 10 feet 3 meters measurement is obtained in accordance with ULC Standard CAN ULC S541 M87 All Mircom enclosures are equipped with a ground screw hole Each speaker unit is equipped a ground wire Instructions 4 RECTANGULAR SPEAKER FOR MODELS WITH STROBE FEATURE STROBE POWER POWER NOT LOOP SIGNAL CIRCUIT FIELD AROUND TERMINALS SUPERVISION REQUIRES RUN TO BE BROKEN AT EACH END ALARM PANEL TO BE USED FOR INSTALLATION PURPOSES by Interchange Way Ontario L4K 5W3 905 660 4655 905 660 4113 Witmer Industrial Estates Falls NY 14305 Free 888 660 4655 Toll Free 888 660 4113 page http www mircom com Email mail mircom com OF LINE ON DEVICE 5705 6
