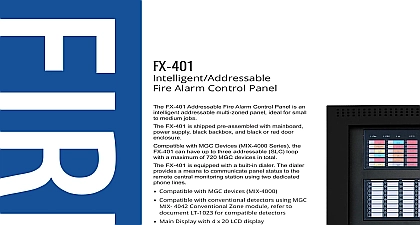

Mircom CAT-5982 - FX-401 Addressable Fire Alarm Control Panel (English Version)

INTELLIGENT FIRE ALARM CONTROL PANEL with two optional RAX 1048TZDS modules FX 401 Addressable Fire Alarm Control Panel is an addressable multi zoned panel ideal for small to jobs FX 401 is shipped pre assembled with mainboard power black backbox and black or red door enclosure with MGC Devices MIX 4000 Series the FX 401 have up to three addressable SLC loop with a maximum 720 MGC devices in total FX 401 is equipped with a built in dialer The dialer a means to communicate panel status to the remote monitoring station using two dedicated phone lines FX 401 Addressable Fire Alarm Control Panel the following Main Board Power Supply and Backbox One on board addressable SLC loop for MGC Devices Series 240 devices per loop Expandable to three addrassable loops for a maximum of MGC devices MIX 4000 Series 240 devices per loop Multi zone fire alarm control panel Compatible with MGC devices MIX 4000 Compatible with conventional detectors using MGC 4042 Conventional Zone module refer to document for compatible detectors Main Display with 4 x 20 LCD display Class A DCLA Class X DCLC or Class B DCLB analog Four Power Limited Class B Class A NAC circuits max 1.5 each 6.0 Amps total NAC circuits may be configured as silenceable signal non signal silenceable strobes non silenceable or relay output The audible signal may be Steady Temporal Code California Code or March Time Supports sync strobe protocols from major manufacturers Software configuration Configurable Signal Silence Inhibit Auto Signal Silence and Walk Test Two stage alarm verification and positive alarm sequence relays Subsequent Alarm Supervisory Monitor and Trouble Dedicated common alarm supervisory trouble and auxiliary Additional RAX 1048TZDS Display Adder Module can be to provide 96 annunciation points per Adder Relay Contacts for Common Alarm Common Supervisory Common Trouble all non disconnectable and Auxiliary Relay disconnectable Additional outputs include connections for a RTI remote indicator PR 300 Reverse Polarity Module an 485 bus for connection of up to seven RAM 3500 LCDs SRM 312s and RA Series annunciators Auxiliary power is available in the form of 24V FWR unfiltered unsupervised 24VDC filtered and regulated and auxiliary power supply Built in Dialer TO BE USED FOR INSTALLATION PURPOSES INFORMATION IS FOR MARKETING PURPOSES ONLY AND INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY NUMBER Components Remote Annunciator RAM 3500 LCD provides remote annunciation through a line by 20 character LCD display It is a direct mimic of the panel display so that the LCD LEDs and switches are exact duplicate of the main display The RAM 3500 LCD control switches for System Reset Signal Silence Drill and Acknowledge four Status Queues with selector and LEDs for Alarm Supervisory Trouble and Monitor with a numeric keypad to access the menu functions RAM 3500 LCD mounts in separately orderable single enclosures or in larger enclosures that support up to optional RAX 1048TZDS remote LED annunciators All enclosures are equipped with a CAT 30 Lock and key RAM 3500 LCD occupies one display position in the enclosures Remote LCD Annunciator FX 401 also supports the RAX LCD LITE Remote LCD It is equipped with a large 4 line x 20 character alphanumeric LCD display that uses a simple menu complete with a directional keypad and switches for Menu Cancel and Info The RAX LCD Lite occupies display position in the BB 1000 enclosures Conformal Coated Main Remote LED RAM 1032TZDS CC Conformal Coated Main Remote Annunciator provides common annunciator functions 32 points of LED annunciation The RAM 1032TZDS has indicators for A C On Common Trouble and Signal and controls for System Reset Lamp Test Fire Drill Silence and Signal Silence Each display point can be by the slide in label that slides in beside the LED RAM 1032TZDS CC occupies one display position in the or BB 1002WP R A enclosures Main Remote LED Annunciator RAM 1032TZDS Main Remote LED Annunciator common annunciator functions and 32 points of LED The RAM 1032TZDS has indicators for A C On Trouble and Signal Silence and controls for System Lamp Test Fire Drill Buzzer Silence and Signal Silence RAM 1032TZDS occupies one display position in the enclosure Conformal Coated Programmable LED Module RAX 1048TZDS CC Conformal Coated Programmable Annunciator Module provides 48 programmable LEDs The RAX 1048TZDS CC connects to the main unit or main annunciator module RAM 1032TZDS mounted remotely Each display point can be identified the slide in label that slides in besides the LED The occupies one display position in the BB or BB 1002WP R A Series enclosures Programmable LED Annunciator Module RAX 1048TZDS Programmable LED Annunciator provides 48 programmable bi colored LEDs The connects to the main control unit or main module RAM 1032TZDS when mounted remotely display point can be identified by the slide in label that in beside the LED The RAX 1048TZDS occupies one position in the BB 1000 Series enclosures TO BE USED FOR INSTALLATION PURPOSES INFORMATION IS FOR MARKETING PURPOSES ONLY AND INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY 5982 2 of 6 Graphic Annunciator Adder Driver Board AGD 048 Adder Graphic Driver Module can be used with MGD 32 Master Graphic Driver modules or if located it must be connected and mounted with the RAX LCD Display The AGD 048 will support an additional 48 outputs As with the master modules the AGD 048 support both LEDs and incandescent lamps Master Graphic Driver Module use with FX 401 Fire Alarm Control Panel The MGD 32 Graphic Driver Module provides common control inputs the switches such as System Reset Signal Silence Auxiliary Fire Drill Lamp Test and Acknowledge Interface for Configuring MGC Fire Panels UIMA4 is an interface for configuring FX 401 The ribbon cable can be disconnected and replaced the part number is RPL WC 25022 it comes with replacement cables The UIMA4 interface has 3 connectors pin male serial connector USB B female connector and pin female connector 480 Point Dual Loop Adder ALC 480 provides two addressable SLC loop for MGC MIX 4000 Series 240 devices per loop 480 devices in loop Adder Polarity Reversal City Tie Module PR 300 provides outputs for city box and polarity reversal As a city tie module the PR300 provides an between the control panel indicating circuits and a box It provides off premises signal transmission for that must comply with NFPA requirements for Auxiliary Systems As a polarity reversal module the PR 300 an interface between the control panel and a reverse receiver Trouble Remote Indicator Remote Trouble Indicator provides remote of fire alarm troubles The RTI 1 mounts onto a single gang electrical box The RTI 1 can be used any of Mircom fire alarm control panels End of Line Plates MP 300 is a 3.9K End Of Line resistor for use with conventional panels and detection circuits TO BE USED FOR INSTALLATION PURPOSES INFORMATION IS FOR MARKETING PURPOSES ONLY AND INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY 5982 3 of 6 Outdoor Weather Protected Enclosure BB 1001WP R A is a complete enclosure that comes with a RED or WHITE door a black back box two keys and durable lock at the top of the door The door comes hinged the bottom side of the box for added weather protection box is capable of handling one RAM 1032TZDS CC Annunciator Chassis which provides up to 32 points annunciation RAM 1032TZDS CC is ordered separately with the UL ULC installation requirements there is no need for thermostat or heater mu
