Mircom RA-1000 Series Stainless Steel Datasheet English

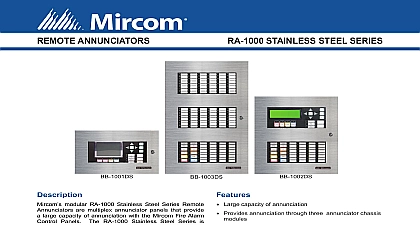

REMOTE ANNUNCIATORS STAINLESS STEEL SERIES modular RA 1000 Stainless Steel Series Remote are multiplex annunciator panels that provide large capacity of annunciation with the Mircom Fire Alarm Panels The RA 1000 Stainless Steel Series is of three chassis models The RAM 1032TZDS Annunciator Chassis consists of sealed membrane buttons and LED indicators Complete with Common Features and Indicators the RAM 1032TZDS Main Chassis provides up to 32 points of annunciation can be expanded with up to four RAX adder annunciator modules Defined via DIP switches the RA 1000 Steel Remote Annunciators are automatically to match the Fire Alarm Control Panel configuration RAX 1048TZDS Adder Annunciator Chassis has the basic construction as the Main Annunciator Chassis and provide up to 48 points of annunciation It interconnects either a RAM 1032TZDS Main Annunciator or a Adder Annunciator Chassis Up to four Adder Annunciator Chassis can be connected one RAM 1032TZDS The annunciators come standard Bi coloured LEDs to annunciate Alarm or Supervisory Each display point can be identified by the slide in that slides in beside the LED The annunciator modules mount into five various sized enclosures Large capacity of annunciation Provides annunciation through three annunciator chassis Bi coloured LEDs Slide in labels for each display point Surface mount to standard gang outlet boxes Sealed membrane like buttons and LED indicators Local Buzzer Silence and Lamp Test switches LEDs for A C On Common Trouble Remote Failure Aux Acknowledge General Alarm Signal Silence Test Configuration Mode Controls for System Reset Lamp Test Fire Drill Aux Buzzer Silence Signal Silence General and Acknowledge Each annunciation point is automatically selected for Alarm Red or Supervisory Amber to match the Alarm Control Panel configuration Five sizes of enclosures Enclosures are available in a white colour for the market and a red exterior for the U S and markets TO BE USED FOR INSTALLATION PURPOSES INFORMATION IS FOR MARKETING PURPOSES ONLY AND INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY NUMBER Semi Flush Enclosure BB 1001DS comes complete with a backbox door hinge The enclosure door comes with a Lexan two keys and a durable lock The door comes to the left side of the box The box is capable handling one RAM 1032TZDS RAXN LCD and Annunciators Semi Flush Enclosure BB 1002DS comes complete with a backbox and hinge The enclosure door comes with Lexan two keys and a durable lock The door comes to the left side of the box The enclosure is of handling one RAM 1032TZDS RAXN LCD Main Annunciator Chassis and one Adder Annunciator Chassis Semi Flush Enclosure BB 1003DS comes complete with a backbox and hinge The enclosure door comes with Lexan two keys and a durable lock The door comes to the left side of the box The enclosure is of handling one RAM 1032TZDS RAXN LCD Main Annunciator Chassis and two Adder Annunciator Chassis All BB 1000D Series Enclosures are available in a white for the Canadian market and a red exterior for the U S and markets Enclosure 9 x 12.75 x 1.85 Enclosure 18 x 12.75 x 1.85 Enclosure 26.4 x 12.75 x 1.85 TO BE USED FOR INSTALLATION PURPOSES INFORMATION IS FOR MARKETING PURPOSES ONLY AND INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY 5504 2 of 3 RAM 1032TZDS Main LED Annunciator common annunciator and 32 points of annunciation The RAM has indicators for On Common Trouble Signal Silence and for System Reset Test Fire Drill Buzzer and Signal Silence Remote Annunciator Wiring Diagram RAM 1032TZDS Main LED Annunciator common annunciator and 32 points of annunciation The RAM has indicators for On Common Trouble Signal Silence and for System Reset Test Fire Drill Buzzer and Signal Silence RAXN LCD Remote LCD Annunciator equipped with a large x 20 character back lit LCD display provides an exact replica the main FleXNet fire alarm panel display RAXN LCDG Remote e t w o r k G r a p h i c L C D is equipped with 24 line x 40 character back graphical LCD display that used to display 9 events per Each event is displayed 2 lines with 40 characters line allowing emergency to be displayed in to read format ON 1 2 3 4 Twisted Shielded Pair for Untwisted Unshielded Pair 24 VDC Power RS 485 wiring needs to be twisted shielded pair wire gauge may be 22 AWG up to 4000 ft 20 AWG to 6000 feet or 18 AWG up to 8000 ft ON ON Series Series Multiplex Annunciator Multiplex Annunciator Enclosure Enclosure Alarm Control Unit Annunciator wiring must be as shown Star type or tap connections are not allowed RA 1000 Series Remote Annunciators must be wired in a loop configuration Information Steel Annunciator backbox with keylock door Houses 1 module Steel Annunciator backbox with keylock door Houses 2 modules Steel Annunciator backbox with keylock door Houses 3 modules Zone Bi Colored LED Annunciator Zone Bi Colored LED Annunciator Network LCD Annuniator Network Graphic LCD Annuniator Interchange Way Ontario L4K 5W3 905 660 4655 905 660 4113 Witmer Industrial Estates Falls NY 14305 Free 888 660 4655 Toll Free 888 660 4113 INFORMATION IS FOR MARKETING PURPOSES AND NOT TO DESCRIBE THE TECHNICALLY complete and accurate installation testing and certification refer to technical This document contains intellectual property of Mircom information is subject to change by Mircom without notice does not represent or warrant correctness or completeness relating 5504 0
