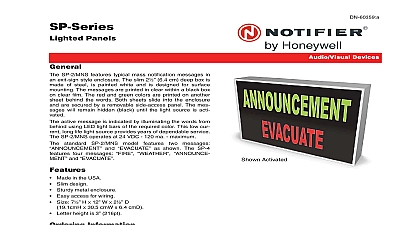

SP 2 MNS PANELS Annunciators Water Leak Detection Smoke Control Panels ARA Systems Portwatch Way Wilmington N C 28412 Phone 800 251 2512 Fax 800 251 9878 www ledinc com Email sales ledinc com Made in the USA Slim design Sturdy metal enclosure Easy access for wiring Size 7 1 2 H x 12 W x 2 1 2 D Letter height is 3 216 pt ACTIVATED Description SP 2B MNS features typical mass notification messages in an exit sign style enclosure slim 2 1 2 deep box is made of steel is painted white and is designed for surface The messages are printed in clear within a black box on clear film The red and colors are printed on another sheet behind the words Both sheets slide into the and is secured by a removable side access panel The messages will remain black until the light source is activated active message is indicated by illuminating the words from behind using LED light bars the required color This low current long life light source provides years of dependable The SP 2B MNS typically operates at 24 vdc 120 ma max standard SP 2B MNS model features two messages and as shown above The SP 4B MNS features four messages in any custom con you need messages on a larger more customizable scale please refer to the LEDArray MegaDot MNS products PANELS Typical Wiring Make sure to avoid the Light Bars when punching hole Locate the conduit at Top or near the left or right side LED Light Bars LED Light Bars Input Plate This End The sign is designed for surface mounting An optional ceiling mount bracket can be purchased for ceiling mount applications Conduit penetration may be on the top the left side the bottom or the back If conduit is installed in the back the top right corner is the preferred location See diagram above There are no provisions made for mounting directly to a switch box or 4 square box There are 4 mounting holes in the back of the sign box Use pan head wood screws with plastic anchors to attach box to sheet rock wall The sign is designed to be operated at 24vdc The Red LED Light Bar requires 65ma when lit The Green LED Light Bar requires 25ma when lit There is NO current consumption in a de activated state A pair of terminals are provided for each message Wire from the terminals to 24vdc Interrupt the or through a N O contact Close the contact to activate the associated message
