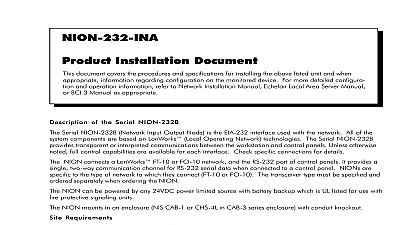

File Preview
File Preview
Click below to download for free

File Data

Name notifier-nion-232-u400-product-installation-document-9720561348.pdf
Type PDF
Size 1.02 MB
Downloads

Text Preview

NION 232 U400 Installation Document document covers the procedures and specifications for installing the above listed unit and when information regarding configuration on the monitored device For more detailed configura and operation information refer to Network Installation Manual Echelon Local Area Server Manual BCI 3 Manual as appropriate of the Serial NION 232B Serial NION 232B Network Input Output Node is the EIA 232 interface used with All of the system compo are based on LonWorks cid 153 Local Operating Network technologies The Serial NION 232B provides or interpreted communications between the workstation and control panels Unless otherwise noted full capabilities are available for each interface Check specific connections for details NION connects a LonWorks cid 153 FT 10 or FO 10 network and the RS 232 port of control panels It provides a two way communication channel for RS 232 serial data when connected to a control panel NIONs are to the type of network to which they connect FT 10 or FO 10 The transceiver type must be specified and separately when ordering the NION NION can be powered by any 24VDC power limited source with battery backup which is UL listed for use with protective signaling units NION mounts in an enclosure ADT NIS CAB 1 or CHS 4L in ADT CAB 3 series enclosure with conduit Requirements NION 232B can be installed in the following environmental conditions range of 0 to 49 32 cid 176 F 120 cid 176 F humidity non condensing at 30 86 cid 176 F NION 232B is designed to be installed on a wall within 20 feet of the control panel in the same room The of hardware used is at the discretion of the installer but must be in accordance with local code requirements Board 232 Status Net Ser Rec Ser Fail 1 2 Output 1 2 Configura Switch OutputsInputs General 50970 NION 232B U400 Installation Rev A 6 3 99 Rev A 50970 ECN 98 301 Communication Description baud rate parity and data bits of the NION 232B must be equal to those of the RS 232 serial port of the panel The NION 232B comes from the factory preset for the application it was ordered to fill These are made on switch S2 it becomes necessary to change any of these settings use the chart below Baud Rate Switch Position 4 Switch Position 5 Switch Position 6 600 Parity None Odd Even On Position 2 Position 3 Position 1 Data Bits 8 7 If the device connected to the NION calls for 9 data bits then the NION must be set to 8 bits with either Even or Odd parity S2 Settings for the NION 232B RS 232 Configuration Power Requirements NION 232B requires 24 VDC 0.080 A nominal and battery backup in accordance with local code It can be powered by any power limited source with battery backup which is UL listed for use with protective signaling units Communications with the UniMode 400 RS 232 settings for the panel are Rate 2400 Data Bits 7 Stop Bits 1 Parity Even Panels with software versions prior to 3.00 use RS 232 settings 2400 7 Even 1 It is recommended that the installer conform to local code requirements when all wiring All power connections must be non resettable Refer to the Notifier catalog for specific part numbers and ordering information for each Always remove power from the NION before making any changes to switch and removing or installing option modules SMX network modules and upgrade chips or damage may result Always observe ESD protection 50970 NION 232B U400 Installation Rev A 6 3 99 Connections with the UniMode 400 Control Panel NION 400 must be connected to the CPU 400 board of the UniMode 400 panel Serial communication must be connected to the TB2 connector EIA 232 For specific connections refer to Figure NION 400 400 Wiring Diagram The NION should be mounted within 20ft of the panel with all connections run conduit 400 400 Wiring Diagram the NION from the UniMode 400 Control Panel NION should use terminals 3 24 and 4 Common of the TB2 connector of the MPS 400 board to get the power from the AFP400 panel This power source is power limited and non resettable For specific refer to Figure NION 400 UniMode 400 Wiring Diagram the UniMode 400 Control Panel UniMode 400 Control Panel requires no software configuration for communication with the NION 400 order to utilize all features available with the UniMode 400 the UniMode 400 Plug In utility must be configured the system workstations Each Plug In is described in detail in the Product Installation Description shipped with NION General Plug In setup information can be found in the workstation manual Use only wire for power limited systems limited wire runs use type FPLR FPLP FPL equivalent cabling per NEC 760 50970 NION 232B U400 Installation Rev A 6 3 99
