Notifier SpectrAlert Advance Mass Notification Devices Data Sheet

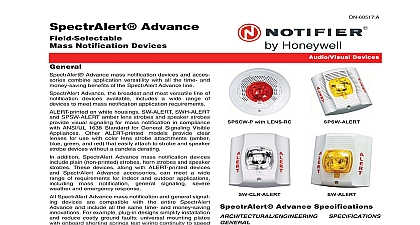

SpectrAlert Advance Notification Devices Advance mass notification devices and acces combine application versatility with all the time and benefits of the SpectrAlert Advance line Advance the broadest and most versatile line of devices available includes a wide range of to meet mass notification application requirements on white housings SW ALERT SWH ALERT SPSW ALERT amber lens strobes and speaker strobes visual signaling for mass notification in compliance ANSI UL 1638 Standard for General Signaling Visible Other ALERT printed models provide clear for use with color lens strobe attachments amber green and red that easily attach to strobe and speaker devices without a candela derating addition SpectrAlert Advance mass notification devices plain non printed strobes horn strobes and speaker These devices along with ALERT printed devices SpectrAlert Advance accessories can meet a wide of requirements for indoor and outdoor applications mass notification general signaling severe and emergency response SpectrAlert Advance mass notification and general signal devices are compatible with the entire SpectrAlert and include all the same time and money saving For example plug in designs simplify installation reduce costly ground faults universal mounting plates onboard shorting springs test wiring continuity to speed and protect devices from damage and field settings provide versatility and enable installers to set each device to meet application requirements Notification Features Plain or ALERT printed white housings Amber lens strobes and speaker strobes Color lens attachments for use with clear lens wall or ceil strobes Meets DOD specification requirements Advance Features Plug in design for simplified installation and troubleshoot Mounting plate shorting spring easily tests wiring continu Automatic selection of 12 or 24 volt operation at 15 and candela Field selectable candela settings of 15 15 75 30 75 95 115 135 150 177 185 please refer to Equivalent Rating for UL 1971 Table Rated from 32 to 120 0 to 49 indoor devices to 151 40 to 66 NEMA 4X IP56 weather devices Optional tamper resistant Torx head screw Compatible with System Sensor synchronization protocol Devices with LENS RC Advance Specifications Advance strobes and horn strobes shall mount to standard 4 x 4 x 1.5 back box 4 inch octagon back box double gang back box Two wire products shall also mount a single gang 2 x 4 x 1 7 8 5.08 x 10.16 x 4.76 cm back SpectrAlert Advance speaker strobes shall mount to a 4 4 x 2 1 8 inch 10.16 x 10.16 x 5.40 cm back box A univer mounting plate shall be used for mounting ceiling and wall The notification appliance circuit wiring and ampli wiring shall terminate at the universal mounting plate SpectrAlert Advance products when used with the Module accessory shall be powered from a notification appliance circuit output and shall on a nominal 12 or 24 volts When used with the Module 12 volt rated notification appliance cir outputs shall operate between 9 and 17.5 volts 24 volt notification appliance circuit outputs shall operate 17 and 33 volts Indoor SpectrAlert Advance prod shall operate between 32 and 120 0 and 49 a regulated DC or full wave rectified unfiltered power Strobes horn strobes and speaker strobes shall have candela settings including 15 15 75 30 75 110 115 135 150 177 and 185 strobe shall be a System Sensor SpectrAlert Advance listed to UL 1971 clear lens strobes and be approved for fire protective service or shall be for fire protective service as listed in ANSI UL 1638 lens strobes The strobe shall be wired as a primary notification appliance and comply with the Ameri 06 02 2009 Page 1 of 6 with Disabilities Act requirements for visible signaling flashing at 1 Hz over the strobe entire operating range The strobe light shall consist of a xenon flash and associated lens reflector system STROBE COMBINATION horn strobe shall be a System Sensor SpectrAlert Model listed to UL 1971 and UL 464 and be approved for fire protective service The horn strobe be wired as a primary signaling notification appliance comply with the Americans with Disabilities Act require for visible signaling appliances flashing at 1 Hz over strobe entire operating voltage range The strobe light consist of a xenon flash tube and associated lens reflec system The horn shall have three audibility options and option to switch between a temporal three pattern and a continuous pattern These options shall be by a multiple position switch The horn and horn strobe shall operate on a coded or non coded power supply STROBE COMBINATION speaker strobe shall be a System Sensor SpectrAlert Model listed to UL 1480 and UL 1971 be approved for fire protective signaling systems shall be capable of operating at 25.0 or 70.7 nomi Vrms selected via rotary switch and shall have a fre range of 400 to 4000 Hz Speaker shall have power that are selected by rotary switch The strobe shall com with the NFPA 72 requirements for visible signaling appli flashing at 1 Hz over the strobe entire operating range The strobe light shall consist of a xenon flash and associated lens reflector system PRODUCTS Advance outdoor strobes horn strobes and strobes shall be listed for outdoor use by UL and operate between and 151 and 66 products shall be listed for use with a System Sensor back box with half inch and three conduit entries MODULE module shall be a System Sensor Sync model or MDL3W listed to UL 464 and shall be approved for protective service The module shall synchronize Spec strobes at 1 Hz and horns at temporal three Also operating the strobes the module shall silence the on horn strobe models over a single pair of wires The shall mount to a 4 11 16 x 4 11 16 x 2 1 8 inch 11.90 11.90 x 5.40 cm back box The module shall also control Style Y class B circuits or one Style Z class A circuit module shall synchronize multiple zones Daisy chaining or more synchronization modules together will synchro all the zones they control The module shall not operate a coded power supply LENS STROBE ATTACHMENT System Sensor SpectrAlert Advance color lens attach shall be approved for fire protective service as listed in 1638 The lens attachments shall only be used with plain System Sensor strobe devices They shall to any wall or ceiling strobe and be rated from 151 37 to 66 SPECIFICATIONS Operating Temperature 32 to 120 0 to Series Operating Temperature 40 to 151 40 to Range 10 to 93 non condensing indoor mod Wall Mount Strobe and Horn Strobe including lens L x 4.7 W x 2.5 D L x 5.0 W x 4.7 D 2.5 D SPS Speaker Strobe including lens and speaker Ceiling Mount Strobe including lens 6.8 diameter SPECIFICATIONS Voltage strobes and horn strobes Regulated DC FWR or regulated 24 DC FWR Voltage speakers 25 V or 70.7 V nominal Supervisory Voltage speakers 50 VDC Voltage Range 8 to 17.5 V 12 V nominal or 17 33 V 24 V nominal Flash Rate 1 flash per second Frequency Range 400 to 4000 Hz Power 1 2 watts SOUND OUTPUT Reverberant dBA 10 ft 2W SPS Series SPV Series SPC Series
