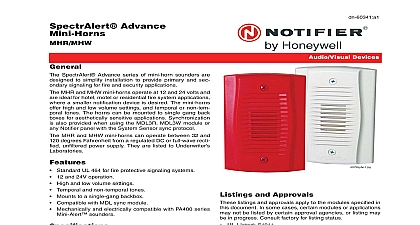

SpectrAlert Advance Series MHR1A cid 129 MHRA MHRZA MHW1A cid 129 MHWA cid 129 MHWZA SpectrAlert Advance series of mini horn sounders are to simplify installation to provide primary and sec signaling for fire and security applications MHR and MHW mini horns are ideal for residential hotel motel fire system applications where a smaller notification is desired The mini horns come in versions that offer and low volume settings temporal or non temporal tones and silencing to meet the intent of the Building Code Section 3.2.4.18.9 The mini horns can mounted to single gang backboxes for aesthetically sensi applications Synchronization is provided on certain mod when using the MDLA module Mini horns with silencing an accelerated silence test feature which allows testing the silence operation without waiting for the entire time out MHR and MHW mini horns can operate between 0 to 32 to 120 from a regulated DC or full wave recti unfiltered power supply 12 and 24V operation High and low volume settings Temporal and non temporal tones Mounts to a single gang backbox Low current draw Accelerated silence test feature on silenceable models Mechanically and electrically compatible with PA400 series sounders SPECIALIZATIONS 4.6 x 2.9 x 45 2.67 oz Temperature Range 0 to 49 32 to 120 Single gang SPECIFICATIONS Terminals 12 to 18 AWG Voltage Regulated 12DC FWR or 24DC FWR Voltage 8 33 Voltage with MDLA 9 33 Frequency 3 KHZ nominal Time MHRZA MHWZA 10 minutes maximum Reset Power down Time MHRZA MHWZA 4 sec TYP shall be a System Sensor Model MHRZA or capable of operating at nominal 12 or 24 VDC and DN 60296 A Devices mount to a single gang backbox Mini horn shall be listed Underwriter Laboratories of Canada CAN ULC S525 Mini shall operate between 0 and 49 degrees Celsius 32 120 degrees Fahrenheit from a regulated DC or full wave unfiltered power supply When used with Module Model MDLA 12 volt rated notification circuit outputs shall operate between 9 and 17.5 24 volt rated notification appliance circuit outputs shall between 16 and 33 volts Mini horns shall have set for Hi Low volume and temporal continuous tones A feature shall be included to allow silencing of the mini to meet the intent of the National Building Code Section Mini horns shall have the ability of an accelerated test feature and shall be able to operate from either or coded NAC circuits shall be a System Sensor Model MHRA or MHWA of operating at nominal 12 or 24VDC and shall mount a single gang backbox Mini horn shall be listed to Under Laboratories of Canada CAN ULC S525 Mini horns operate between 0 and 40 degrees Celsius 32 and 120 Fahrenheit from a regulated DC or full wave recti unfiltered power supply When used with a Sync Model MDLA 12 volt rated notification appliance cir outputs shall operate between 9 and 17.5 volts 24 volt notification appliance circuit outputs shall operate 16 and 33 volts Mini horns shall have settings for Hi volume and temporal continuous tones Mini horns shall able to operate from either continuous or coded NAC cir shall be a System Sensor Model MHR1A or capable of operating at nominal 12 or 24VDC and be mounted to a single gang backbox Mini horn shall be to Underwriter Laboratories of Canada CAN ULC Mini horns shall operate between 0 and 49 degrees 32 and 120 degrees Fahrenheit from a regulated DC full wave rectified unfiltered power supply Mini horns shall able to operate from either continuous or coded NAC cir 9 20 07 Page 1 of 4 Output dBA in Anechoic Room Draw mA RMS FACP 16V 24V 33V FACP Volume Power 12V 16V 24V 33V Volume Power 12V 16V 24V 33V 24V 33V 24V 33V 2 of 4 Canadian DN 60296 A 9 20 07 Diagram OR SHOWN WITH CONTROL PANEL IN ALARM PANEL REVERSED IN SUPERVISORY CONDITION OR SHOWN WITH CONTROL PANEL IN ALARM PANEL REVERSED IN SUPERVISORY CONDITION DN 60296 A 9 20 07 Page 3 of 4 and Approvals listings and approvals apply to the modules specified in document In some cases certain modules or applications not be listed by certain approval agencies or listing may in progress Consult factory for listing status ULC Listed CS1099 FM Approved Information Mini Horn Red Mini Horn White Mini Horn Red Selectable tone and volume Mini Horn White Selectable tone and volume Mini Horn Red Silenceable selectable tone and synchronizable Mini Horn White Silenceable selectable tone and synchronizable is a registered trademark and Mini Alert is a trademark of International Inc by Honeywell International Inc All rights reserved Unauthorized use this document is strictly prohibited document is not intended to be used for purposes We try to keep our prod information up to date and accurate We cover all specific applications or anticipate requirements All specifications are subject to without notice more information contact Notifier 289 1114 Whitmore Road Ontario L4L 7Z4 4 of 4 Canadian DN 60296 A 9 20 07
