Potter FEP Series Flush Mount Expander Plate

File Preview
File Preview
Click below to download for free

File Data

Name potter-fep-series-flush-mount-expander-plate-1862450973.pdf
Type PDF
Size 1.54 MB
Downloads

Text Preview

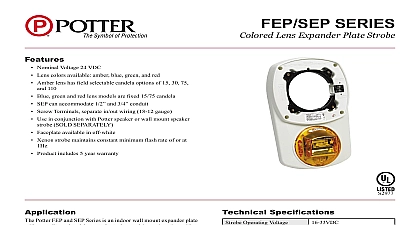

Features Nominal Voltage 24 VDC Lens colors available amber blue green and red Amber lens has field selectable candela options of 15 30 75 110 Blue green and red lens models are fixed 15 75 candela SEP can accommodate 1 2 and 3 4 conduit Screw Terminals separate in out wiring 18 12 gauge Use in conjunction with Potter speaker or wall mount speaker SOLD SEPARATELY Faceplate available in off white Xenon strobe maintains constant minimum flash rate of or at Product includes 5 year warranty Potter FEP and SEP Series is an indoor wall mount expander plate a quality colored lens strobe to be used in conjunction with a speaker or wall mount speaker strobe allowing the ability to multiple strobes on a single electrical box Applications include communication severe weather evacuation emergency and many more FEP Series is to be used in flush mount applications and the SEP is to be used in surface mount applications The FEP and SEP strobes are to be used on a 24 VDC system and are available amber blue green and red lens colors The amber lens units are with a turn dial for field selectable candela options The blue and red lens units are only available in 15 75 candela option strobes can be synchronized using the Potter AVSM FACP or supplies that provide a Gentex Synchronization Protocol All feature ALERT text on the lens FEP and SEP Series are constructed of high impact textured The amber lens units additionally comply with the light output requirement of ANSI UL 1971 for wall mount applications a measured candela rating that is equal to the candela listed on product Temperature Specifications Operating Voltage Module AVSM to 120 to 49 X 6.6 X 2.8 H X 7.26 W X 5.04 D square X 2.125 deep lbs Unit Dimensions Unit Dimensions Box Weight Listings ANSI UL1638 Compliance NFPA 72 PAGE 1 OF 3 REV C 5 18Potter Electric Signal Company LLC St Louis MO Tech Support 866 956 1211 Customer Service 866 572 3005 www pottersignal comFEP SEP SERIESColored Lens Expander Plate Strobefirealarmresources com Series Flush Mount Expander Plate Blue Green and Red Lens Strobe Current Ratings 15 75 Candela Strobe 24 VDC Max Current mA 24 VFWR Max Current mA Amber Green VDC 15 30 60 75 110 VDC VDC VDC 15 75 15 75 15 75 Series Surface Mount Expander Plate Amber Green VDC 15 30 60 75 110 VDC VDC VDC 15 75 15 75 15 75 Amber Lens Strobe Current Ratings 24 VDC Max Current mA 24 VFWR Max Current mA nominal and peak current across ANSI UL regulated voltage range for filtered DC power and unfiltered FWR Full Wave Rectified power installation manual does not recommend using a coded or pulsing signaling circuit with any of our strobe products FEP SEP series is not to be used as a visual public mode alarm notification appliance Diagram DO NOT LOOPED WIRE TERMINALS WIRE TO PROVIDE OF OR 70.7 VRMs VDC POWER CONDUCTIVITY AWG 60 AWG 95 AWG 153 AWG 244 GEP VDC POWER NEXT APPLIANCE LAST APPLIANCE NEXT APPLIANCE LAST APPLIANCE SPEAKER SPEAKER USED FEP OR SEP BE ORDERED OF LINE OF LINE OF LINE NEXT APPLIANCE LAST APPLIANCE MAX WIRE DISTANCE X WIRE CONDUCTIVITY VOLTAGE DEVICE MINIMUM VOLTAGE CURRENT DRAW CAUTION APPLIES ONLY TO REGULATED SUPPLIES NOTICE POWER IS SUPPLIED TO DEVICES WHEN CONTROL PANEL IS LATCHED All strobes are designed to flash as specified with continuous applied voltage Strobes should not be used on coded or pulsing signaling circuits use of the Potter AVSM control module or Gentex synchronization protocol is permitted to synchronize the strobe horn and or mute the horn PAGE 2 OF 3 REV C 5 18Potter Electric Signal Company LLC St Louis MO Tech Support 866 956 1211 Customer Service 866 572 3005 www pottersignal comFEP SEP SERIESColored Lens Expander Plate Strobefirealarmresources com Selection FEP and SEP Only Mounting Notes Attach speaker or speaker strobe using the mounting ring line is to aid in alignment during installation wire strip guide four base locations for additional screw support if FEP Flush Mount Plate SEP Surface Mount Plate intensity by small flat blade turn dial Displayed will indicate candela Ring with Location and Engineering Specifications expander plate shall be Potter FEP or SEP Colored Lens Expander Plate or approved equivalent and shall be listed by Underwriters Laboratories Inc ANSI UL 1638 and the amber lens shall have compliance with the polar dispersion requirements of ANSI UL 1971 The FEP or SEP shall comply all local state and federal fire alarm code standards The visual signal shall have a minimum 1 Hz flash rate regardless of input voltage The unit shall an input range of 16 33 volts with either direct current of full wave rectified power for 24 volt models All field wiring connections shall be made via in out terminal connections PAGE 3 OF 3 REV C 5 18Potter Electric Signal Company LLC St Louis MO Tech Support 866 956 1211 Customer Service 866 572 3005 www pottersignal comFEP SEP SERIESColored Lens Expander Plate Strobefirealarmresources com
