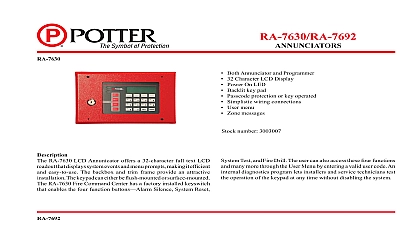

RA 7630 RA 7630 LCD Annunicator offers a 32 character full text LCD that displays system events and menu prompts making it efficient easy to use The backbox and trim frame provide an attractive The keypad can either be flush mounted or surface mounted RA 7630 Fire Command Center has a factory installed keyswitch enables the four function buttons Silence System Reset Test and Fire Drill The user can also access these four functions many more through the User Menu by entering a valid user code An diagnostics program lets installers and service technicians test operation of the keypad at any time without disabling the system Both Annunciator and Programmer 32 Character LCD Display Power On LED Backlit key pad Passcode protection or key operated Simplistic wiring connections User menu Zone messages number 3003007 Green LED for Power On 5 Red Alarm LED 5 Amber Trouble LED Mounts on door of cabinet or remotely Simplistic wiring connections Internal buzzer Trouble LED for Communication failure or Phone line problem number 3003002 RA 7692 keypad annunciator provides LED notification of the status for the PFC 7500 series communicators The panel has sets of LEDs to indicate alarm and trouble conditions In addition panel has a Power ON LED and a Trouble LED that will indicate communication and phone line failure There is a piezo sounder that activate momentarily anytime a key is pressed sounds intermittently a trouble condition and sounds steady when an alarm condition present keypad is powered directly from the PFC 7500 series panel The has a wire harness that readily connects to the panel The keypad operates on 30mA and up to 500mA worth of the RA 7692 be connected to a single panel The keypad has a removable back ease in mounting Electric Signal Co LLC St Louis MO Cust Service 866 240 1870 Tech Support 866 956 1211 Canada 888 882 1833 www pottersignal com IN USA 8840026 REV C 1 OF 1
