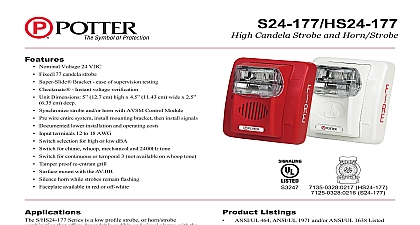

Potter S24-177 Series High Candela Wall Mount Strobe

File Preview
File Preview
Click below to download for free

File Data

Name potter-s24-177-series-high-candela-wall-mount-strobe-2317894605.pdf
Type PDF
Size 1.41 MB
Downloads

Text Preview

Features Nominal Voltage 24 VDC Fixed177 candela strobe Super Slide Bracket ease of supervision testing Checkmate Instant voltage verification Unit Dimensions 5 12.7 cm high x 4.5 11.43 cm wide x 2.5 cm deep Synchronize strobe and or horn with AVSM Control Module Pre wire entire system install mounting bracket then install signals Documented lower installation and operating costs Input terminals 12 to 18 AWG Switch selection for high or low dBA Switch for chime whoop mechanical and 2400Hz tone Switch for continuous or temporal 3 not available on whoop tone Tamper proof re entrant grill Surface mount with the AV BB Silence horn while strobes remain flashing Faceplate available in red or off white S HS24 177 Series is a low profile strobe or horn strobe that offers dependable audible and visual alarms with the lowest current available S HS24 177 Series has a minimum flash rate of 1Hz regardless of voltage S HS24 177 Series is shipped with the standard 4 mounting plate incorporates the popular Super Slide feature that allows the to easily test for supervision The product also a locking mechanism which secures the product to the without any screws showing S HS24 177 Series also features the patented Checkmate Instant Verification feature which allows the installer to measure the drop and match it to the blueprint S HS 177 Series appliances are ANSI UL 464 ANSI UL 1971 ANSI UL 1638 listed for use with fire protective systems and warranted for five years from date of purchase HS24 177 S24 177 Listings ANSI UL 464 ANSI UL 1971 and or ANSI UL 1638 Listed Compliance NFPA 72 Americans with Disabilities Act ADA Quality Management System is certified to ISO 9001 2008 State Ordinances Laws Regulations PAGE 1 OF 4 8830066 REV B 8 17PRINTED IN USAPotter Electric Signal Company LLC St Louis MO Tech Support 866 956 0988 Customer Service 866 572 3005 www pottersignal comS24 177 HS24 177High Candela Strobe and Horn Strobefirealarmresources com Switch Locations Temporal 3 Continuous Temporal 3 Continuous Temporal 3 Continuous POSITION Positions 1 and 2 in the OFF position to isolated horn and strobe power inputs Position 6 ON HIGH dBA Position 6 OFF LOW dBA Slide Mounting the installer to pre wire system test for system remove the signal until occupancy switch signals without mounting brackets has locking edge connector snap in place installation Instant Verification is often necessary to confirm the voltage along a line of devices The access are provided in the back of the block to allow the voltage to be directly without removing the Typically this would be done at the of line to confirm design criteria Most will be taken using the S S locations although access is provided other locations Care should be taken to not short test probes remove bezel grip both sides of bezel pull in a download and outward motion PAGE 2 OF 4 8830066 REV B 8 17PRINTED IN USAPotter Electric Signal Company LLC St Louis MO Tech Support 866 956 0988 Customer Service 866 572 3005 www pottersignal comS24 177 HS24 177High Candela Strobe and Horn Strobefirealarmresources com VDC Low Profile Evacuation Strobe Number Number VDC VDC Designations Plain no lettering Red faceplate W White Faceplate units are non returnable Bezel Available 4890264 4890265 Bezel Available 4890262 4890263 24 VDC Fixed Candela Low Profile Evacuation Horn Strobe Number Number VDC VDC dBA per ANSI UL 464 Anechoic Room 10ft Series Current Ratings mA 16 33 Volts VDC Max1 Horn Decibel and Current Ratings dBA dBA 10ft per 464 10ft per 464 12VDC Operating Setting mA Mode 3 2400Hz 3 Mechanical 3 Chime 2400Hz Mechanical Chime Operating temperature 32 120 0 to 49 The 177 Series is not listed for outdoor use The sound output for the temporal 3 tone is rated lower since the time the horn is off is averaged into the sound output rating While the horn is producing a tone in the temporal 3 mode its sound pressure is the same as the continuous mode For nominal and peak current across UL regulated voltage range for filtered DC power and unfiltered FWR Full Wave Rectified power see installation manual Operating the horn in this mode at this voltage will result in not meeting the minimum ANSI UL 464 reverberant sound level required for public fire protection service These settings are acceptable only for private mode fire alarm use Use the high dBA setting for public mode application applicable when using the chime tone The chime tone is always private mode RMS current ratings are per UL average RMS method UL max current rating is the maximum RMS current within the listed voltage range 16 for 24VDC units For strobes the UL max current is usually at the minimum listed voltage 16VDC for 24VDC units For audibles the max is usually at the maximum listed voltage For unfiltered FWR ratings see installation manual PAGE 3 OF 4 8830066 REV B 8 17PRINTED IN USAPotter Electric Signal Company LLC St Louis MO Tech Support 866 956 0988 Customer Service 866 572 3005 www pottersignal comS24 177 HS24 177High Candela Strobe and Horn Strobefirealarmresources com Engineering Specifications listed by Underwriters Laboratories Inc per ANSI UL 1971 and or ANSI UL 464 The notification appliance shall also be listed with the State Fire Marshal CSFM audible and or visible signal shall be Potter S24 177 strobe and Potter HS24 177 horn strobe Series or approved equal and shall notification appliance combination audible visible shall produce a peak sound output of 100dBA or greater at 24VDC as in an anechoic chamber The signaling appliance shall also have the capability to silence the audible signal while leaving the visible energized with the use of a single pair of power wires Additionally the user shall be able to select either continuous or temporal tone with the temporal signal having the ability to be synchronized shall be capable of being installed so that any unauthorized attempt to change the candela setting will result in a trouble signal at audible visible and visible signaling appliance shall also maintain a minimum flash rate of 1Hz or up to 2Hz regardless of power fire alarm control panel voltage appliance shall be polarized to allow for electrical supervision of the system wiring The unit shall be provided with a mounting with terminals and barriers for input output wiring and be able to mount to a single gang or double gang box or double workbox without use of an adapter plate The unit shall have an input voltage range of 16 33 volts with either direct current or full wave rectified power for models of mounting to a surface back box appliance shall be capable of testing supervision without disconnecting wires verify voltage without removing unit and be Wiring Diagrams for Emergency Notification Evacuation Series All strobes are designed to flash as specified with continuous applied voltage Strobes should not be used on coded or pulsing signaling circuits However use of the Potter AVSM control module or Gentex synchronization protocol is permitted to synchronize the strobe horn and or mute the horn SYNCHRONIZATION WIRING INFORMATION REFERENCE AVSM CONTROL MODULE DATA SHEET 8830064 AVSM CONTROL MODULE MANUAL FO
