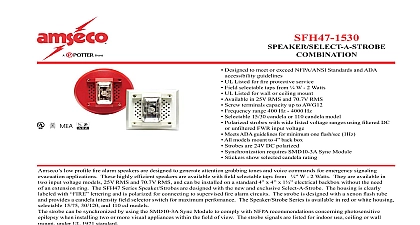

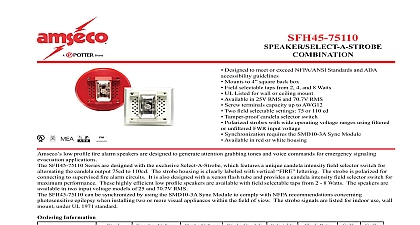

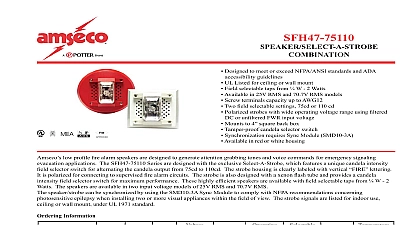

A Brand COMBINATION ADA NFPA ANSI compliant Screw terminal capacity up to AWG 12 RBX 1 back box skirt for surface mount optional Available in red or white housing All models mount to 4 back box Speaker is UL 1480 listed for re protective service Speaker eld selectable wattage from 1 and 2 Watts Speaker is available in 25V RMS or 70.7V RMS models Speaker frequency range 400 to 4000 Hz Speaker has integral blocking capacitor for line supervision Strobe is UL listed for ceiling and wall mount Fixed 177cd output Strobe is operable with 24V regulated DC or FWR 16 33V Polarized strobes with wide operating voltage range using ltered DC or un ltered FWR input voltage Minimum one flash per second 1Hz Selectable light output candela low medium or high Synchronization requires SMD10 3A Sync Module ceiling and wall mount re alarm Speaker Strobe Series are designed to generate attention grabbing tones and voice commands for signaling evacuation applications These highly ef cient low pro le speakers are available with eld selectable taps 1 and 2 The speakers are available in two input voltage models 25V RMS and 70.7V RMS and can be installed on a standard 4 square back box strobe features a candela output of 177cd and is polarized for connecting to supervise re alarm circuits The strobe housing is clearly labeled lettering and is designed with a xenon ash tube and provides a candela intensity eld selector switch for maximum performance series can be synchronized by using the SMD10 3A daisy chain Sync Module to comply with NFPA recommendations concerning epilepsy when installing two or more visual appliances within the eld of view The strobe signals are designed for non sleeping and are listed for indoor use Information Number 4660006 White 4660010 White DC WR DC FWR times Wall 120 49 Speci cations speaker and visual alarm indicating appliance shall be Amseco Model SSC25 177 or SSC70 177 or equivalent device The speaker shall be under UL 1480 standards for audible and voice communications and shall be approved for re protective service The re alarm speaker be capable of reproducing alarm tones or voice commands on 25V RMS or 70.7V RMS Speakers shall provide incremental tap settings 1 or 2 Watts They shall have a frequency range of 400 to 4000 Hz and produce UL sound pressure level at 10 feet up to 84dBA The shall be approved for re alarm signaling use The strobe shall be listed under UL 1971 standard for signaling devices for the hearing and shall be approved for re protection service The candela ouput shall be eld selectable having three settings of 30cd 75cd or The signaling strobe shall operate on 24V DC from a non coded regulated DC supply or full wave recti ed un ltered supply The shall be designed to produce one signal ash per second with continuously applied minimum voltage The strobe may have a SPC 1 back mounting plate capable of ceiling or wall mounting to a back box When strobe synchronization is required the strobe shall be with the Amseco SMD10 3A daisy chain or other source of Amseco sync protocol Signaling devices shall be installed in sleeping in accordance with current NFPA guidelines Electric Signal Company 2081 Craig Road St Louis MO 63146 4161 Phone 800 325 3936 Canada 888 882 1833 www pottersignal com IN USA 8850029 REV A 1 OF 2 Brand inches mm COMBINATION 174 View 35 70 View 25.5 85.7 View Power Watts k Ohms Pressure dB 10ft Response Frequency Cut Off Speci cations RMS 4000 Hz Hz RMS Light RMS Operating Current mA 24V FWR 24V DC 240 345 Required Minimum Output 45 cd Diagram S IIRR STROBE S L Next or Square Box Square Box Skirt Module H Next or IN USA 8850029 REV A 2 OF 2
