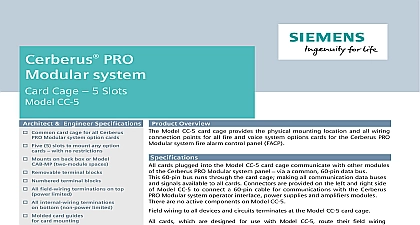

Siemens CC-5 Desigo Modular 5-Slot Card Cage, Data Sheet

Fire Safety system Cage 5 Slots CC 5 Architect Engineer Specifications Common card cage for all Desigo Fire Modular system option cards Five 5 slots to mount any option with no restrictions Mounts on back box or Model two module spaces Removable terminal blocks Numbered terminal blocks All field wiring terminations on top limited All internal wiring terminations bottom non power limited Molded card guides card mounting Card position locator on card guide All cards communicate via 60 pin power data bus Screw terminals wire sizes 12 AWG 24AWG DIN connectors UL864 CAN ULC S576 Listed FM CSFM NYC Fire Department Approved Product Overview Model CC 5 card cage provides the physical mounting location and all wiring points for all fire and voice system options cards for the Desigo Fire Modular system fire alarm control panel FACP Specifications cards plugged into the Model CC 5 card cage communicate with other modules the Desigo Fire Safety Modular system panel via a common 60 pin data bus 60 pin bus runs through the card cage making all communication data buses signals available to all cards Connectors are provided on the left and right side Model CC 5 to connect a 60 pin cable for communications with the Desigo Fire Modular system operator interface power supplies and amplifiers modules are no active components on Model CC 5 wiring to all devices and circuits terminates at the Model CC 5 card cage cards which are designed for use with Model CC 5 route their field wiring to the of Model CC 5 These connections are all power limited wiring connections distribute 24VDC to cards or high level audio signals on application used connected to the of Model CC 5 these internal wiring connections are all non power limited wiring connections to Model CC 5 are made to removable terminal Terminal blocks are rated for use with wire sized 12AWG to 24AWG terminal block comes with a protective cover that also serves as a to allow easy terminal block removal when wires are connected connector is numbered to make wiring terminations to the correct position the terminal block simple and reduce the potential for wiring errors Technologies Division CC 5 Cage 5 Slots Sheet 7320 Specifications continued CC 5 is shipped with two 2 card guides top and bottom that mount to the Model CC 5 PCB The top card guide a blank label for use by the installer to indicate the location or card slot position The blank label serves a reminder to the installer to ensure the proper card goes in the correct card slot this is important during when cards may be installed after the field wiring terminations have been made and when are removed for service field wiring terminations are typically made to the Model CC 5 terminal blocks before the card guides are and the option cards are installed Model CC 5 mounts in two 2 of the four 4 available module spaces on the back box or optional Model CAB MP for installation in the CAB 1 CAB 2 or CAB 3 enclosures Temperature and Humidity Range CC 5 is UL 864 9th Edition listed for indoor dry locations within a temperature range of 120 3 to 32 3 0 2 and a relative humidity of 93 2 at a temperature of 90 3 32 2 Desigo Fire Safety Modular Cards for Ordering TYPE Cage Any combination of the following 5 option cards be installed in a Model CC 5 Card Cage SYSTEM CARDS Loop Card Detector Card Relay Card Interface Card Indicating Card 4 circuits SYSTEM CARDS Input Card Digital Audio Card Zone Card Zone Amplifier Card MODEL Refer to Installation Instruction 315 033035 NOTICE The information contained in this data sheet document is intended only a summary and is subject to change without notice product s described here has have a specific instruction sheet s cover various technical limitation and liability information of install type instruction sheets as well as the General Product and Limitations document which also contains important data provided with the product and are available from the Manufacturer contained in the aforesaid type of documentation should be consulted a fire safety professional before specifying or using the product further questions or assistance concerning problems that might arise relative to the functioning of the equipment please contact Manufacturer Fire Safety Industry Inc Technologies Division Fernwood Road Florham Park NJ 07932 973 593 2600 2017 New Issue 0
