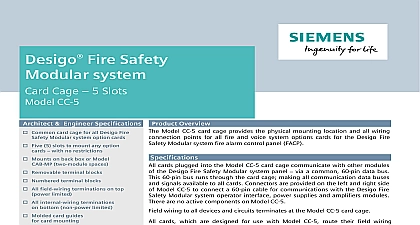

Siemens CC-5 (for FireFinder) 5-Slot Card Cage, Data Sheet

Catalog limited XLS Cage 5 Slots CC 5 Common card cage for all FireFinder XLS V option cards Five 5 slots to mount any option cards with no restrictions Mounts on back box or CAB MP two module spaces Removable terminal blocks Numbered terminal blocks All field wiring terminations on top power limited All internal wiring terminations on bottom Molded card guides for card mounting Card position locator label on card guide All cards communicate via common 60 pin power data bus Screw terminals wire sizes supported 12 AWG 24AWG DIN connectors UL 864 9th Edition Listed and ULC Listed Overview Model CC 5 card cage provides the physical location and all wiring connection for all fire and voice system options cards the FireFinder XLS system cards plugged into the Model CC 5 card cage with other modules of the XLS panel via a common 60 pin data This 60 pin bus runs through the card making all communication data buses and available to all cards Connectors are on the left and right side of Model CC 5 connect a 60 pin cable for communications the FireFinder XLS operator interface power and amplifiers modules There are no components on Model CC 5 CSFM NYMEA Approved Industry Inc Technologies Division wiring to all devices and circuits at the Model CC 5 card cage cards designed for use with Model CC 5 their field wiring terminations to the Model CC 5 these connections are all limited Internal wiring connections 24VDC to cards or high level audio depending on application used to the of Model CC 5 connections are all non power wiring connections to Model CC 5 are made removable terminal blocks Terminal blocks rated for use with wire sized 12AWG to Each terminal block comes with a cover that also serves as a handle to easy terminal block removal when wires connected XLS 6320 FireFinder XLS Cards combination of the following 5 option can be installed in the CC 5 for Ordering to Installation Instruction 315 033035 and Humidity Range are UL 864 9th Edition listed for dry locations within a temperature of 120 3 49 2 to 32 3 and at a relative humidity of 93 2 a temperature of 90 3 32 2 continued connector is numbered to make wiring to the correct position on the block simple and reduce the potential wiring errors CC 5 is shipped with two 2 card top and bottom that mount to the CC 5 PCB The card guide contains a label for use by the installer to indicate the or card slot position The blank label as a reminder to the installer to ensure proper card goes in the correct card slot is important during commissioning cards may be installed after the field terminations have been made and cards are removed for service field wiring terminations are typically to the Model CC 5 terminal blocks the card guides are mounted and the cards are installed Model CC 5 mounts two 2 of the four 4 available module directly on the back box or optional CAB MP for installation in the CAB 1 or CAB 3 enclosures This marketing catalog sheet is not intended to be used for system design or installation purposes the most up to date information refer to each product installation instructions Industry Inc Technologies Division Safety Fernwood Road Park NJ 07932 973 593 2600 908 547 6877 www SBT Siemens com FIS in U S A Safety Kenview Boulevard Ontario 5E4 Canada 905 799 9937 905 799 9858 2010 sheet dated 7 09 2
