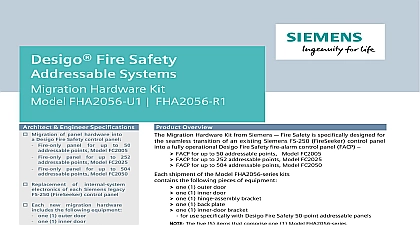

Siemens FHA2056-U1, FHA2056-R1 Desigo (for Canada) Migration Hardware Kit, data sheet

Fire Safety Systems Hardware Kit FHA2056 U1 FHA2056 R1 Architect Engineer Specifications Migration of panel hardware into Desigo Fire Safety control panel Fire only panel for up to 252 points Model FC2025 Fire only panel for up to 504 points Model FC2050 Product Overview Migration Hardware Kit from Siemens Fire Safety is specifically designed for seamless transition of an existing Siemens FS 250 FireSeeker control panel a fully operational Desigo Fire Safety fire alarm control panel FACP FACP for up to 252 addressable points Model FC2025 FACP for up to 504 addressable points Model FC2050 shipment of the Model FHA2056 series kits the following pieces of equipment one 1 outer door one 1 inner door one 1 hinge assembly bracket one 1 back plate The four 4 items that comprise one 1 Model FHA2056 series kit cannot be ordered individually Siemens field devices currently used with a legacy FS 250 control panel will seamlessly on new Desigo Fire Safety electronics since the field devices are compatible is also no need to order a new back box that had been used on the legacy since the design of the outer door sold as part of Hardware Migration Kit designed to fit with either the existing black or red back box migration hardware will function with following optional Desigo Fire Safety modules the DACT module Model FCA2015 U1 the releasing module Model XCI2001 U1 the NAC expansion module Model FCI2011 U1 the leased line city tie module Model FCI2020 U1 Replacement of of each Siemens legacy FireSeeker control panel Each new migration hardware the following equipment one 1 outer door one 1 inner door one 1 hinge assembly bracket one 1 back plate Re use of existing panel back box Orderable in either black or red Migration hardware optional Desigo modules Digital Alarm Communication DACT FCA2015 U1 Releasing module XCI2001 U1 NAC expansion module FCI2011 U1 Leased Line City Tie Module FCI2020 U1 Full migration of existing field devices field devices are fully compatible migration hardware ULC S527 3rd Edition Listed Door Door Plate Technologies Division Sheet 6826C of a fully mounted Desigo 252 504 point system connected to legacy back box FHA2056 U1 Properties Compatibilities for Ordering MODEL TYPE Fire Safety battery sets S54400 Fire Safety Migration Kit DOOR H D DOOR H D PLATE H D 20.2 1.7 cm cm 4.3 cm 19.5 1.0 cm 49.53 cm 2.54 cm 16.5 5.2 cm 41.9 cm cm OR BT and Desigo 252 504 point Units Fire Safety Boards 6804 Alarm Transmitter 6806C Fire Safety power supply Fire Safety 6807C panel hardware 6808 NAC Expansion Module 6809 Desigo Releasing Module Fire Safety 252 addressable fire Fire Safety 504 addressable fire NOTICE The information contained in this data sheet document is intended only as a summary is subject to change without notice The product s described here has have a instruction sheet s that cover various technical limitation and liability data of install type instruction sheets as well as the General Product Warning and document which also contains important data are provided with the product are available from the Manufacturer contained in the aforesaid type of documentation should be consulted with a fire professional before specifying or using the product further questions or assistance concerning problems that might arise relative to the functioning of the equipment please contact Manufacturer Fire Safety Fire Safety Migration Kit Fire Safety FACPs kits TYPE Fire Safety 252 point panel kit 170W power supply 24 LEDs Fire Safety addressable panel w 170W power supply 24 LEDs Fire Safety addressable panel w 170W power supply Fire Safety addressable panel w 170W power supply Refer to Installation Operation Manual A6V101004423 for more information Canada Ltd Technologies Division North Service Road Oakville Ontario L6H 0H6 905 465 8000 2017 New Issue
