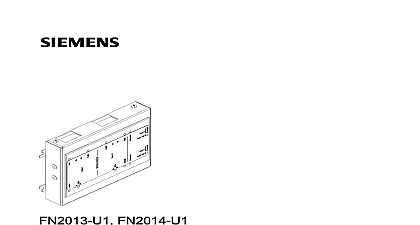

Siemens FN2013-U1 FN2014-U1 fiber-optic interface modules, Data Sheet

Fiber Modules FN2013 U1 I FN2014 U1 Architect Engineer Specifications Works with H Net M Net or X Net 4 or 7 communication Uses multi mode or single mode fiber pairs Power provided by the fire control panel FACP Acts as network repeater Daisy chain or Star configurations UL 864 10th Edition Listed ULC Product Overview Siemens Fire Safety Models FN2014 U1 multi mode and FN2013 U1 single mode interface modules can be used to transmit RS 485 communication between FSM Cerberus PRO Modular and FireFinder XLS addressable fire alarm control which includes H Net communication between Desigo Cerberus PRO and XLS main and remote panels FN2013 U1 and FN2014 U1 can act as either a repeater or an end point unit The interface modules are powered by 24VDC from the fire alarm control panels FN2013 U1and FN2014 U1 can be powered from the Model PSC 12 power supply Model PSX 12 power supply extender when used with the Desigo Cerberus PRO Modular FireFinder XLS The fiber optic interface modules can also be powered by Model PAD 3 4 5 Specifications the model COM BRK mounting plate either Model FN2013 U1 and FN2014 U1 can be mounted in any FireFinder XLS CAB series enclosure Model FN2013 U1 FN2014 U1 modules can be mounted in any CAB 1 CAB 2 CAB 3 enclosure and takes same space as a CC 2 card cage Model FN2013 U1 and FN2014 U1 modules can also operate in either a daisy chain or configuration allowing for network configurations that are not possible with RS 485 alone connection between the Model FN2014 U1 module uses two 2 high quality duplex 25 or 62.5 1 25 fiber optic cables and SC style fiber connectors Each segment of the network can be up to 13,100 ft connection between the Model FN2013 U1 module uses two 2 high quality duplex fiber optic cables and SC style fiber connectors Each segment of the fiber network be up to 131,000 ft both multi mode and single mode installations system fiber delay across the entire fiber network network length should not exceed 70,000 feet by both fiber optic modules Models and FN2014 U1 there are ten 10 light diode LED indicators for Power and Status Power LED is green and lights whenever there is Both channels A and B have a yellow and LED The green LED indicates the module is data on that channel The yellow LED will trigger when data is received FN2014 U1 Fiber Module Infrastructure Building Products 5080 usa siemens com fire Diagram and Humidity Range FN2013 U1 and FN2014 U1 are approved for within the temperature range of 32 to 120 to 49 and at a relative humidity of 93 2 at a of 90 3 32 2 for Ordering Type Network Module Mode SM Network Module Mode MM Module Mount for CAB and Operation Manual Type FN2013 U1 FN2014 U1 NOTICE The information contained in this data sheet document is intended only a summary and is subject to change without notice product s described here has have a specific instruction sheet s cover various technical limitation and liability information of install type instruction sheets as well as the General Product and Limitations document which also contains important data provided with the product and are available from the Manufacturer contained in the aforesaid type of documentation should be consulted a fire safety professional before specifying or using the product further questions or assistance concerning problems that might arise relative to the functioning of the equipment please contact Manufacturer Industry Inc Infrastructure Building Products Fernwood Road Florham Park NJ 07932 973 593 2600 2021 3
