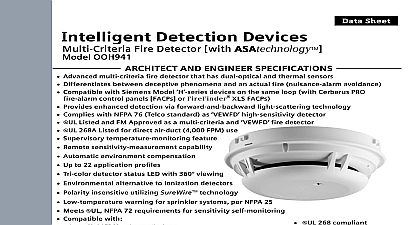

Siemens OOH941 Multi-Criteria Fire Detector [with ASAtechnology], Data Sheet

Cerberus PRO and Peripherals Fire Detector with ASAtechnology OOH941 Engineer Specifications UL 268 7th edition Listed ULC Listed FM 3210 CSFM 7272 0067 0258 Built in ISOtechnology Advanced multi criteria fire detector that dual optical thermal sensors Differentiates between deceptive and an actual fire nuisance avoidance Compatible with H devices on the loop of Cerberus PRO modular Provides enhanced detection via light technology Complies with NFPA 76 Telco standard as high sensitivity detector UL Listed and FM Approved as a multi and VEWFD fire detector UL 268A Listed for direct air duct use FPM Supervisory temperature monitoring Remote sensitivity measurement capability Automatic environment compensation Up to 22 application profiles Tri color detector status light emitting LED Polarity insensitive via SureWire Low temperature warning for sprinkler per NFPA 25 Meets UL NFPA 72 requirements for self monitoring Compatible with Model DB 11 mounting bases Model 8720 DPU device loop tester Restriction of Hazardous RoHS compliant Responds to both flaming and signatures Product Overview OOH941 is an advanced flexible multi criteria fire detector that incorporates redundant optical thermal sensor Additionally Model OOH941 utilizes a distinctive forward backward light scattering technology that high tech unparalleled fire detection to the widest range of fire types the detector to distinguish non threatening deceptive phenomena Model OOH941 is UL 268 7th edition listed incorporating advanced built in True Class X SLC operation use is optional greatly improving reliability and circuit integrity while providing advanced addressable fault unit may be programmed as a high sensitivity detector with a 0.2 ft Pre threshold and 1.0 ft Alarm threshold thus meeting the requirements of 76 Standard for the Fire Protection of Telecommunications Facilities as a Early Warning Fire Detector VEWFD of these multi purpose addressable detectors offers a full and modern to meet the detection needs for commercial facilities Model OOH941 can be field programmed for simultaneous and or independent depending upon the precise customer and application requirements example the detector can simultaneously utilize the optical and heat sensors for multi criteria fire detection as well as provide independent outputs for detection Any combination of the sensors is possible detector is very versatile and meets the following fire industry standards Multi criteria fire detector UL 268 7th edition Heat detector UL 521 with five 5 possible field selectable combined with four 4 rate of rise options Direct in duct plenum detector UL 268A Supervisory monitoring for temperature ranges NFPA 76 Telco Standard as VEWFD Low temperature warning signal at 40 4.4 sprinkler systems per NFPA 25 NFPA 72 instance the signals from the detector are monitored and processed via the algorithm technology which the signals into a neural network to an intelligent multi criteria addressable Infrastructure Building Products OOH941 Fire Detector ASAtechnology Data Sheet 9904 usa siemens com fire Heat Receiver Backward Forward Labyrinth OOH941 Light Scattering Technology Overview continued encompassing result is an intelligent detector that provides enhanced detection capability to a wide range of of combustion while offering unsurpassed rejection to nuisance alarm sources including dust steam cooking aerosols and other deceptive phenomena that could cause false alarms It is known at Siemens as the guarantee Model OOH941 is a two wire addressable device functioning as a multi purpose detector satisfying the revised of UL 268 7th edition using smoke and heat detection in a singular aesthetically pleasing package to other multi functional detectors Model OOH941 also serves as a very cost effective viable detection that saves on product installation maintenance costs The unit value is multiplied with built in the True Class X NFPA 72 compliant SLC isolation feature supporting up to 252 isolation ready devices loop When used in mixed mode a maximum of 30 non isolated devices between isolation devices wired in polarity mode Each detector fits into one 1 wall or ceiling footprint and only occupies one 1 address on the circuit SLC patented forward and backward light scattering technology which is able to distinguish both small and large of combustion operates at the core of each Model OOH941 intelligent addressable detector Each Model detector provides an eco friendly solution to legacy ionization detectors eliminating the need for a radioactive along with inevitable HAZMAT disposal requirements Therefore each detector is capable of detecting both and flaming fire all in ecologically efficient manner and is a valid RoHS compliant Restriction of Substances detection alternative to legacy ionization detectors 2 thermal sensors make each Model OOH941 detector a robust reliable device suitable for the most challenging Additionally Model OOH941 works as a heat detector compliant with NFPA 72 and UL 521 Operation Light Scattering Technology high quality optical electronic measuring chamber for each Model OOH941 houses the following components 2 optical transmitters 1 optical receiver 2 thermal sensors transmitters illuminate the smoke particles from different angles one sensor creates forward scatter and the other creates backward scatter The scattered light subsequently reaches the receiver photodiode and generates a electric signal The combination of a forward and backward scatter facilitates optimum detection as well differentiates between light and dark particles particle size type of detection creates standardized responsive behavior therefore optimizing the differentiation between signals and deceptive phenomena Additionally the heat sensors make it possible to detect fires without smoke this scenario generates the following advantages Early detection of all fire types of fire whether they generate light or dark smoke or no smoke The fire detector can be operated at a lower sensitivity level thus achieving a higher immunity against false alarms may otherwise be caused by cold aerosols e g by smoking electrical welding etc the case of an open fire the smoke sensitivity is heightened by a temperature increase which means that a level that is comparable to a wide spectrum smoke detector can be achieved and maintained Infrastructure Building Products data Telco office dormitory hotel parking garage Operation continued Programmer Test Unit Model OOH941 intelligent detection device is compatible with the Siemens field device programmer test unit DPU 8720 which is a compact portable menu driven accessory for electronically programming and testing addressable detectors promptly and reliably For instance the field technician selects the accessory program mode enters the desired address DPU 8720 eliminates the need for cumbersome unreliable mechanical programming methods e g dials and switches and reduces installation and service costs by electronically programming and testing the detector prior to When set in test mode Model DPU 8720 will perform a series of diagnostic tests without altering the or ot
