Siemens OPC Interface Specifications Version 5 1 SiPass

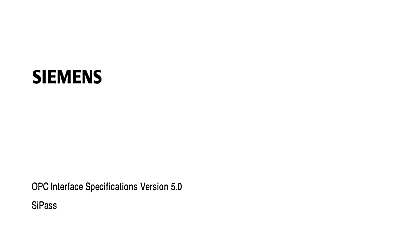

File Preview
File Preview
Click below to download for free

File Data

Name siemens-opc-interface-specifications-version-5-1-sipass-2173980564.pdf
Type PDF
Size 753.74 KB
Downloads

Text Preview

OPC Interface Specifications Version 5.1 No Infrastructure Infrastructure workbook describes the objects provided by the Siemens OPC Data Access Server to represent the Access Control system Model Model on OPC Item Object Model defines the states and commands of all instances of that type In particular an Object Model virtualizes a class of physical objects devices and points in the system by means of specific properties identify the Object Model of each object instance open the CSV export file with a spreadsheet program and refer to the Object Model column See also Example of Exported CSV File in section OPC Server of the online help DA Specifications V5.1 SiPass xlsx 2 of 14 Object Specifications Infrastructure Model AntipassbackArea entity of control logic for APB area on OPC Item Count DA Specifications V5.1 SiPass xlsx 3 of 14 Object Specifications Infrastructure Model Device Device is the main hardware access component on OPC Item DA Specifications V5.1 SiPass xlsx 4 of 14 Object Specifications Infrastructure Model Doorset Door object is the logical representation of the single dual door Frame State State State state 1 State 2 State not configured always State State State Unblock State on OPC Item DA Specifications V5.1 SiPass xlsx 5 of 14 Object Specifications Infrastructure Model Input Input on OPC Item DA Specifications V5.1 SiPass xlsx 6 of 14 Object Specifications Infrastructure Model Intrusion Area area configured as intrusion area on OPC Item DA Specifications V5.1 SiPass xlsx 7 of 14 Object Specifications Infrastructure Model Output Output on OPC Item DA Specifications V5.1 SiPass xlsx 8 of 14 Object Specifications Infrastructure Model Module Module represents different types of boards on OPC Item DA Specifications V5.1 SiPass xlsx 9 of 14 Object Specifications Infrastructure Model Server Module is the main hardware access component on OPC Item State Successful Logged In Error Request DA Specifications V5.1 SiPass xlsx 10 of 14 Object Specifications Infrastructure Model Flag point on OPC Item Activate Deactivate DA Specifications V5.1 SiPass xlsx 11 of 14 Object Specifications Infrastructure Model External Device External Device is the main hardware access component external subsystems connected to SiPass i e SALTO on OPC Item DA Specifications V5.1 SiPass xlsx 12 of 14 Object Specifications Infrastructure Model External Point External point is the logic representation for points through the external device on OPC Item Door Tamper Door Online Door Offline DA Specifications V5.1 SiPass xlsx 13 of 14 Infrastructure Switzerland Ltd Infrastructure Headquarters 1a Zug 58 724 2424 Siemens Switzerland Ltd 2021 specifications and availability subject to change without notice
