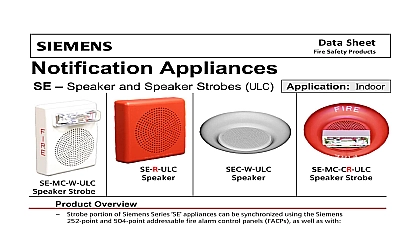

Siemens SEF Series Notification Appliances Speakers and Speaker Strobes, Data Sheet

s Sheet Safety Products Appliances Speakers and Speaker Strobes Indoor Strobe Overview Strobe Fast installation with In Out screw terminals using 12 to 18 AWG wires High efficiency design for maximum output at minimum across a frequency range of 400 to 4000 HZ Field selectable taps for 25 or 70 VRMS operation from 1 8 Watt to 2 Watts Strobes can be synchronized using the Siemens DSC sync modules Siemens Modular FireFinder XLS 252 504 point addressable or PAD series NAC extenders with built in sync protocol Strobes produce 1 flash per second Ceiling mount models are available with field selectable candela settings of 15 30 75 95cd or 115 177cd Wall mount models are available with Field Selectable Candela Settings of 15 30 75 110cd or 135 185cd Listed ULC Listed CSFM NYCFD Approved Complies with OSHA 29 Part 1910.165 ADA NFPA compliant Speaker appliances are Siemens Series SEF Speakers and speaker strobe appliances Siemens Series SEF Speaker Strobes or approved equals Speakers are UL Listed under Standard 1480 for Fire Protective Service and speakers equipped strobes are listed under UL Standard 1971 for Emergency Devices for the Hearing Impaired All models have listed sound output of up to 87 dB at 10 feet a listed frequency response of 400 to 4000 Hz Speakers are designed for a field selectable input of either 25 or 70 VRMS selectable power taps from 1 8 Watt to 2 Watts Speaker incorporates a sealed back construction All inputs employ terminals that accept 12 to 18 AWG wire sizes Strobe portion of the appliance produces a flash rate of one 1 flash second and incorporates a Xenon flashtube enclosed in a rugged Lexan lens Strobe is of low current design Series Notification Appliances 2582 Industry Inc Technologies Division Specifications continued Strobe intensity where Multi Candela appliances are specified field selectable settings and is rated per UL Standard 1971 for 15 30 75 110cd wall mount or 135 185cd wall mount 15 30 75 95cd ceiling mount or 115 177cd ceiling mount Selector switch for selecting the candela is tamper resistant Strobes can be synchronized using the Siemens DSC sync modules Siemens Modular FireFinder XLS 252 504 point addressable or PAD series NAC extenders with built in sync protocol The strobes will not drift out of synchronization at any time during operation Strobes will revert to a non synchronized flash rate if the sync module or Supply should fail to operate i e contacts remain closed Speaker and speaker strobe appliances are designed for indoor surface or flush mounting Speaker and speaker strobe appliances incorporate a speaker mounting plate a grille cover which is secured with two screws for a level finish Grille cover mounts to standard electrical hardware requiring no additional trim plate or adapter The finish of the Series SEF speakers and speaker strobes is white or red All speaker and speaker strobe appliances are listed for Special Applications Strobes are designed to flash at 1 flash per second minimum over their Regulated Input Voltage Range Note NFPA 72 specifies a flash rate of 1 to 2 flashes per second and ADA Guidelines specify flash rate of 1 to 3 flashes per second All candela ratings represent minimum effective Strobe intensity based on UL Standard 1971 Diagram Options In Inches Industry Inc Technologies Division Backbox is compatible with wiremold conduit mountings Holes are for double gang 4 sq 3 4 octagon or round backboxes Data Series Wall Mount Strobes Only Current Rating with Strobe Only RMS Current AMPs Series Wall Mount Strobes Only Current Rating with Strobe Only RMS Current AMPs Voltage Range 30cd 75cd 110cd 33.0VRMS 33.0VRMS Voltage 33.0VRMS 33.0VRMS Series Ceiling Mount Strobes Only Ratings AMPs RMS Current Per UL and ULC Voltage Range 95cd 110cd Application Series Ceiling Mount Strobes Only Ratings AMPs Voltage Application RMS Current Per UL and ULC 135cd 177cd 185cd 16.0 33.0VRMS 16.0 33.0VRMS 24 VDC 24 VDC 0.098 0.175 0.264 0.233 0.164 0.268 0.398 0.368 16.0 33.0VRMS 16.0 33.0VRMS 24 VDC 24 VDC 1 Strobe will produce 1 flash per second over the Input Voltage range Strobes meet the required light distribution patterns defined in UL 1971 Models are UL Listed for indoor use with a temperature range of 32 to 120 0 to 49 maximum humidity of 85 RH The effect of shipping and storage temperatures will not affect the performance of the appliance when it is stored in the original cartons and not subjected to misuse or abuse The maximum supervision voltage is 33VDC Frequency range of speakers is 400 400Hz for Ordering Including Mounting Options Agency Approvals 500 636044 Series Multi Candela Red Series Multi Candela White Series Hi Multi Candela Red Series Hi Multi Candela White Series Speaker Red Series Speaker White Series Multi Candela Ceiling White Series Hi Multi Candela Ceiling White Series Ceiling Speaker Red Series Ceiling Speaker White There are no regulatory in mounting Series appliances either wall or ceiling Approvals ULC FM CSFM listed approved Refer to data sheet 2585 for detailed options Industry Inc Technologies Division This marketing data sheet is not intended to be used for system design or installation purposes the most up to date information refer to each product installation instructions Industry Inc Technologies Division Safety Fernwood Road Park NJ 07932 973 593 2600 908 547 6877 www usa Siemens com Fire in U S A Safety North Service Road Oakville Ontario 0H6 Canada 905 465 8000 www Siemens CA 2018 sheet dated 3 2018 5
