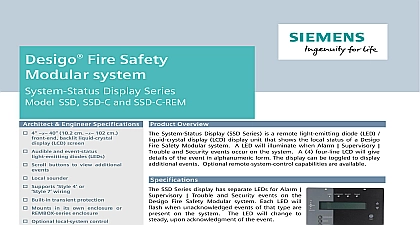

Siemens SSD-series (for FireFinder) Status Displays, Data Sheet

Catalog XLS Display Series SSD SSD C and SSD C REM 4 x 40 backlit LCD screen Event and audible status LEDs Scroll buttons to view additional events Local sounder Supports Style 4 or Style 7 wiring Built in transient protection Mounts in its own enclosure or REMBOX Optional local system control Downloadable firmware UL 864 9th Edition Listed and ULC Listed CSFM NYMEA Approved Overview System Status Display SSD Series is a remote LED display that shows the local status of a FireFinder system A LED will illuminate when Alarm Trouble and Security events occur on system A four line LCD will give details of the in alphanumeric form The display can be to display additional events Optional control capabilities are available SSD Series display has separate LEDs for Alarm Trouble and Security events on the XLS system Each LED will flash when events of that type are present on the The LED will change to steady upon of the event Also there are two 2 that indicate the state of audible circuits on the one 1 LED to indicate that the circuits are and one 1 LED to indicate the circuits have silenced Industry Inc Technologies Division LCD display on the SSD Series display has four 4 40 characters for each row When the FireFinder system is in its normal supervisory state with no present the display will annunciate the system information the date and the time of day an event occurs on the system the LCD display show the event type and address the time of the the custom message for that address the usage the device and whether the event is acknowledged not Additionally the display will show the total of all types of events present on the system display has a backlight feature that operates upon any event information or when any operator are pressed local sounder is included with the SSD Series display operates when any events are displayed on the The sounder can be optionally disabled software programming Pressing any buttons will silence the local sounder an event is present XLS 6326 continued SSD Series display has two 2 display control buttons are used to display the next or the previous event in the sequence and a local sounder silence Programming for the SSD Series display is done the Zeus programming tool SSD C and Model SSD C REM have three 3 control buttons for acknowledging events audible circuits and resetting the system SSD C has an integral key switch that enables these buttons to operate Model SSD C REM is located a locked cabinet so no additional key switch is for enabling the control buttons SSD Series display is remotely connected to the communication bus from any Model NIC C interface in a XLS system enclosure using Class B Style 4 or A Style 7 wiring 24VDC is required to run the SSD display and can be provided from a Model PSC 12 Supply or PSX 12 Power Supply Extender in the XLS system enclosure Power from other Listed 24VDC power sources is also acceptable SSD Series display has screw terminals capable of 12 to 22 gage wires The H Net from the FireFinder XLS system can be on the SSD Series display or may pass for communication with other modules LEDs on the SSD Series display indicate and communication status SSD and SSD C can be mounted in a 2 two gang box or a 4 four inch square electrical box No kit is required The unit is approximately wide 6 1 8 15.2cm high and 3.8cm deep Model SSD C REM is mounted in a Model or Model REMBOX4 Remote Lobby Enclosure or CAB enclosure inner door Model SSD C REM requires 2 module spaces in the remote lobby enclosure its bracket supports the mounting of four 4 inner modules such as Model SCM 8 or Model LCM 8 below the display The inner door module spaces arranged in two 2 rows of 2 two module spaces are UL 864 9th Edition listed for indoor dry within a temperature range of 120 3 to 32 3 0 2 and at a relative of 93 2 at a temperature of 90 3 for Ordering Display Display with control 500 634773 Display with control for enclosure 500 633772 Remote Lobby Enclosure 500 633914 Remote Lobby Enclosure Control Module Plate Ratings UL An UL An UL This marketing catalog sheet is not intended to be used for system design or installation purposes the most up to date information refer to each product installation instructions Industry Inc Technologies Division Safety Fernwood Road Park NJ 07932 973 593 2600 908 547 6877 www SBT Siemens com FIS in U S A Safety Kenview Boulevard Ontario 5E4 Canada 905 799 9937 905 799 9858 2010 sheet dated 5 10 3
