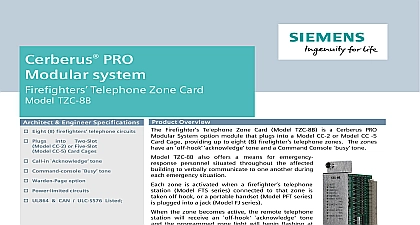

Siemens TZC-8B Desigo Modular Telephone Zone Card, Data Sheet

Fire Safety system Telephone Zone Card TZC 8B Engineer Specifications Eight 8 firefighters telephone circuits Plugs CC 2 or Five Slot CC 5 Card Cages Call in Acknowledge tone Command console Busy tone Warden Page option Power limited circuits UL864 CAN ULC S576 Listed CSFM NYC Fire Department Product Overview Firefighter Telephone Zone Card Model TZC 8B is a Desigo Fire Safety System option module that plugs into a Model CC 2 or Model CC 5 Card providing up to eight 8 firefighter telephone zones The zones have an tone and a Command Console busy tone TZC 8B also offers a means for emergency personnel situated throughout the affected to verbally communicate to one another during emergency situation zone is activated when a firefighter telephone Model FTS series connected to that zone is off hook or a portable handset Model PFT series plugged into a jack Model FJ series the zone becomes active the remote telephone will receive an off hook acknowledge tone and programmed zone light will begin flashing at the console selected by the operator the zone will be to the telephone riser a multiple party line mode and the programmed zone will light steady non flashing active remote telephone station s will receive a tone when the command console is presently to another telephone zone telephone zone uses a single pair of wires and is supervised mode are also individually power limited per NEC Each zone also contains transient protection a to five 5 telephone stations may be off hook in a multiple connection party line with no loss of audio quality Telephone Zone Card Model TZC 8B which is supervised by the DAC NET Card is assigned to one 1 of the 99 Model DAC NET sub CAN addresses Model TZC 8B Zone Card Technologies Division Sheet 7336 Ratings POWER Current Draw Plane Current Draw Terminal Current Draw Plane Current Draw 35mA per active zone POWER PAIR peak to peak max max message transmission and Humidity Range TZC 8B is UL Listed for indoor dry locations a temperature range of 120 3 49 2 32 3 0 2 and a relative humidity of at a temperature of 90 3 32 2 Details for Ordering TYPE Telephone Card Firefighters Telephone Accessories MODEL TYPE 500 624388 500 680588 500 698309 500 698310 Box used for Station Box for Phone Door for Box Phone Jack Phone Jack Steel Jack with Terminal Jack with Terminal Stainless Steel Plate Glass for the frame found on front of each key door FC300S Firefighters Telephone Station Firefighters Telephone Station armored cable Firefighters Telephone Station armored cable and LED Firefighters Telephone Station 500 299451 Telephone function Firefighters Telephone Station Firefighters function NOTICE The information contained in this data sheet document is intended only a summary and is subject to change without notice product s described here has have a specific instruction sheet s cover various technical limitation and liability information of install type instruction sheets as well as the General Product and Limitations document which also contains important data provided with the product and are available from the Manufacturer contained in the aforesaid type of documentation should be consulted a fire safety professional before specifying or using the product further questions or assistance concerning problems that might arise relative to the functioning of the equipment please contact Manufacturer Fire Safety Industry Inc Technologies Division Fernwood Road Florham Park NJ 07932 973 593 2600 2017 New Issue 0
