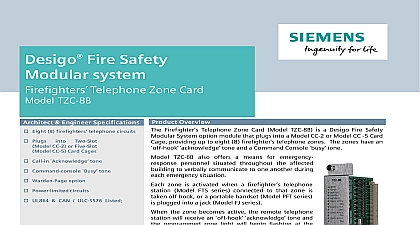

Siemens TZC-8B (for FireFinder) Firefighters’ Telephone Zone Card, Data Sheet

Catalog XLSV Telephone Zone Card TZC 8B Eight 8 firefighters telephone circuits Plugs into CC 2 or CC 5 card cage Call in Acknowledge tone Command console Busy tone Warden Page option Manual or Automatic Power limited circuits UL 864 9th Edition Listed ULC Listed CSFM NYMEA Approved Overview Firefighter Telephone Zone Card Model TZC 8B a way for emergency response personnel throughout a building to speak to one during crisis situations TZC 8B is a FireFinder XLSV option module that into a CC 2 or CC 5 card cage providing eight 8 telephone zones The zones have an acknowledge tone and a Command Console tone zone is activated when a firefighter telephone FTS series connected to that zone is taken off or a portable handset PFT series is plugged into a FJ series When the zone becomes active the telephone station will receive an tone and the programmed zone light begin flashing at the command console Industry Inc Technologies Division View View selected by the operator the zone will be connected to telephone riser in a party line mode and the zone light will light steady active remote telephone station s will receive a busy when the command console is presently connected to telephone zone telephone zone uses a single pair of wires and is supervised in a Class B type mode are also individually power limited per NEC 760 Each also contains transient protection Up to five 5 stations may be off hook simultaneously in a line mode with no loss of audio quality Telephone Zone Card Model TZC 8B is supervised by the Card and is assigned to one 1 of the 99 Model DAC sub module addresses CAN addresses XLSV 6336 for Ordering Firefighters System Accessories Ratings and Humidity Range are UL 864 9th Edition listed for dry locations within a temperature of 120 3 49 2 to 32 3 and at a relative humidity of 93 at a temperature of 90 3 32 2 This marketing catalog sheet is not intended to be used for system design or installation purposes the most up to date information refer to each product installation instructions Industry Inc Technologies Division Safety Fernwood Road Park NJ 07932 973 593 2600 908 547 6877 www SBT Siemens com FIS in U S A Safety Kenview Boulevard Ontario 5E4 Canada 905 799 9937 905 799 9858 2010 sheet dated 7 09 2
