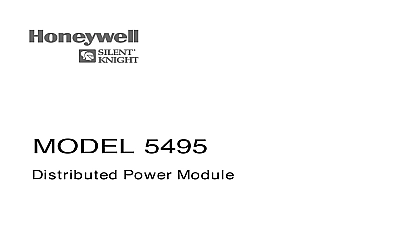

Silent Knight 5495 9A Distributed Power Module

5495 Power Module 5495 Distributed Power Module is the most powerful and cost power supply available today It delivers 6 amps of notification circuit power and built in synchronization for appliances from Sensor AMSECO and Wheelock The 5495 switch power supply design is up to 50 more efficient than competitive mode power supplies Also ADA retrofits are easier and less with the 5495 because it integrates into current systems the costly investment in new components 5495 is a 6 amp notification power expander that provides its own AC connection battery charging circuit and backup battery The 5495 the costeffective solution for powering notification appliances required the Americans with Disabilities Act ADA The 5495 has built in ANSI pattern which can upgrade older control panels that lack capability TO LOCAL FIRE CONTROL 5495 may be connected to a local fire control which utilizes Class A or B type notification circuits operating between 9 and 32 VDC The panel notification circuit is connected to one of the inputs on the The control panel notification circuit end of line resistor is also across two terminals on the 5495 which provides supervision the 5495 and the fire control panel Polarized audible and or notification devices are then connected to the 5495 signal circuits the 4.7kW end of line resistors provided Since the 5495 draws very power from the control it is possible to connect one 5495 to each circuit on the control panel and still provide full supervision of notification circuits all the way back to the control panel UL Listed for 6 amps notification power Power supply switch mode reduces heat and power up to more efficiently other systems Dip switches allow for reconfiguration 24 VDC filtered output Four power limited Ground fault detector Built in outputs 2 A or 4 Class B or Class A and 2 Class Additional continuous output 3 amps per output A 2 inputs 2 Class B or 2 Independent trouble AC loss delay option off power to like door holders for from Sensor AMSECO Wheelock Stand alone operation Lightweight design to ease of and shipping Operates with most UL Listed devices ANSI Cadence pattern capability BENEFITSfirealarmresources com a complete listing of all approvals and please visit Windows and Windows Logo are trademarks trademarks of Corporation Sensor and are registered of Honeywell Inc document is not to be used for purposes We to keep our product up to and accurate We cover all specific or anticipate requirements All are subject change without notice Technical Support 800 446 6444 Technical Specifications 5495 supervises a variety of functions Low AC power Low battery condition Earth ground fault Auxiliary output power limit condition EOL supervision trouble or power limited at an output a trouble condition occurs the 5495 creates trouble condition on the host control signal to which it is connected the 5495 still the ability to be activated by the host In addition the 5495 provides a Form C relay output as an alternative to using the circuit trouble 12.25 x 16 x 3 30.88 cm W x cm H x 7.62 cm D Temperature 32 to 120 0 to 10 93 non condensing input 120 VAC at 2A 24 VDC at 6A Standby 75mA Alarm 205mA power circuit 1 circuits 4 configuration 2 Class A Style Z 4 Class B Y 1 Class A 2 Class B per output circuit 3.0 6.0 amps total circuit output Alarm Current for voltages drawn from main panel appliance circuits VDC 6.5 mA VDC One input circuit 15 mA Both input 0 mA of inputs 2 configuration 2 Class B or 2 Class A voltage range 9 32VDC charging capacity 35.0AH LIGHTS power on Green trouble Yellow fault Yellow trouble Yellow troubles 1 4 Yellow INFORMATION Distributed Power Module Seismic Compliance Kit LISTINGS UL listed CSFM 7300 0559 123 Meets NFPA 72 requirements MEA 429 92 E Vol XII OSHPD CA OSP 0065 10 more information more about Honeywell Silent Knight and other by visiting www silentknight com Silent Knight Clintonville Road CT 06472 350395 Rev H 11 17 2017 Honeywell International Inc
