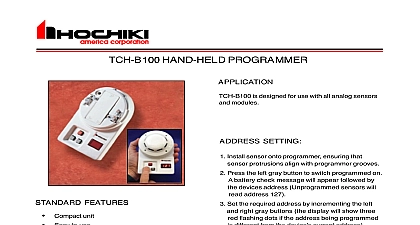

Silent Knight Hochiki SD505-TCHB100 Handheld Detector Programmer Manual

TCH B100 NS PROGRAMMER OPERATING INSTRUCTIONS Programming Buttons Programming Cable Modules except DCP FRCME S Remote Jack Programming Cable DESCRIPTION is designed for use with the following products BUTTONS GRAY BUTTON Photoelectric Smoke Sensor Ionization Smoke Sensor Heat Sensor Fast Response Contact Module Fast Response Contact Monitor Signal Output Module Dual Relay Module Conventional Zone Module Dual Input Monitor Module GRAY BUTTON BUTTON on Automatically reads the address of a sensor Subsequent operations will advance the device address by ten off Advances the device address by one the displayed addresss to the device and is used to read sensor levels PRIOR TO PROGRAMMING ENSURE BATTERY IS CONNECTED SETTING sensor onto programmer ensuring that sensor protrusions align with programmer grooves the left gray button to switch programmed on A battery check message will appear followed by devices address un programmed sensors will read address 127 the required address by incrementing the left and right gray buttons the display will show three red dots if the address being programmed is different from the device current address the desired address is present press the red button to store that address The three red dots on display will no longer be present AMERICA CORPORATION Village Drive Suite 100 Park CA 90621 2268 HA 06 082 1 of 2 05 03 1700 09906 A SENSOR Ionization sensors require a 30 seconds stabilization period before analog value reading should be taken the sensor and power up programmer as previously described on page 1 the Red button An A will appear on the display followed by the analog value value will be continuously updated for three minutes ALG photoelectric sensor should have a value displayed of between 56 63 The AIE sensor should have a value displayed of bewteen 52 73 out of these ranges indicate that the sensor chamber has become contaminated Refer to bulletin HA 96 for proper servicing instructions or return sensor to factory for MESSAGES On upon power up battery check Also on when battery is low Low battery good for up to address setting operation Attempting to set an address beyond 127 Attempting to program an address with no device connected Can not find device after power up Invalid sensor response Can not find the device program Device read error Fail during Analog value reading HA 06 082 2 of 2 05 03 1700 09906
