Silent Knight ifp100vipspec

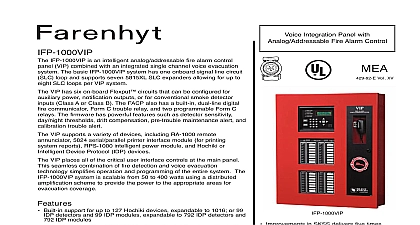

IFP 100VIP IFP 100VIP is an intelligent analog addressable fire alarm control panel combined with an integrated single channel voice evacuation system basic IFP 100VIP system has one signal line circuit SLC loop that Hochiki protocol or Intelligent Device Protocol IDP detectors and VIP has four notification appliance circuits that can be programmed for outputs or auxiliary power The FACP also has a built in dual digital fire communicator Form C trouble relay and two programmable C relays The firmware has powerful features such as detector day night thresholds drift compensation pre trouble alert and calibration trouble alert VIP supports a variety of devices including RA 100 remote 5824 serial parallel printer interface module for printing reports 5496 intelligent power module and Hochiki or Intelligent Protocol IDP devices VIP places all of the critical user interface controls at the main panel seamless combination of fire detection and voice evacuation simplifies operation and programming of the entire system The system is scalable from 50 to 400 watts using a distributed scheme to provide the power to the appropriate areas for coverage Built in support for up to 127 Hochiki devices or 99 IDP detectors and 99 modules All the features of the IFP 100 Fire Alarm Control Panel combined with a integrated voice evacuation system Built in Digital Message Repeater using DSP technology Three field programmable user messages Upload download voice messages using a PC and the 7780 voice application Program voice messages via serial interface or built in microphone Support for up to eight VIP 50s 50 watt SBUS addressable amplifiers a maximum of 400 watts per system Single enclosure for both fire and voice system control components On board supervised microphone System can support two supervised remote microphones Up to 64 mappable speaker circuits using a combination of VIP 50s and Supports 25 Vrms or 70.7 Vrms speaker circuits Built in RS 232 and USB interface for programming Upload or download programming event history or detector status onsite from a remote location using a PC and 5650 5651 Silent Knight Suite SKSS Improvements in SKSS delivers five times faster upload downloads Integration Panel with Fire Alarm Control Vol XV All call and Non Alarm buttons to quickly all active or all the non active output 125 software zones and 250 output groups Jumpstart auto programming Programmable date setting for Daylight Saving IFP 1000VIP can be surface or flush IFP 1000VIP is compatible with the following evacuation components VIP 50 50 watt amplifier VIP RM remote microphone VIP SW16 16 switch expander VIP VCM voice control module Meridian Circle Grove Mn 55369 4927 763 493 6475 350394 Rev C 04 18 06 2006 Silent Knight is a Trademark of Silent Knight is a Registered Trademark of Knight Mount Dimensions 20.25 x 26.75 x 2.5 3 W x 68 H x 6.4 D cm Dimensions x 26.5 x 4.6 W x 67.3 H x 11.8 D cm 53 lbs 24 kg Red Temperature 32 120 0 49 10 93 non condensing AC 120 VAC 50 60 Hz 2.5A Accessory Load 6A 27.4 VDC power limited Current 230 mA Current 525 mA Charging Capacity 7 to 35 AH Size 18 AH max allowed in control panel cabinet capacity batteries can be housed in RBB accessory Conductor Wiring Two voice bus four SBUS Appliance Circuits circuits that can be programmed individually as Circuits 3A per circuit 27.4 VDC power limited Power Circuits 3A per circuit 27.4 VDC 13 NFPA 15 NFPA 16 NFPA 70 72 Central Station Remote Signalling Local Protective Systems Auxiliary Protected Premises Unit Water Releasing Service Approvals UL Listing CSFM 7170 0559 143 429 92 E Vol XV Information Integration Panel with Fire Alarm Watt Amplifier One required for each Circuit Audio Expander For VIP 50 Microphone Switch Expander Control Module Message Downloading Application voice messages with a PC Trim Ring For flush mounting document is not intended to be used for installation purposes We try to keep our information up to date and accurate We cannot cover all specific applications anticipate all requirements All specifications are subject to change without notice more information contact Silent Knight 7550 Meridian Circle Suite 100 Maple Mn 55369 4927 Phone 800 328 0103 Fax 763 493 6475 in the U S A
