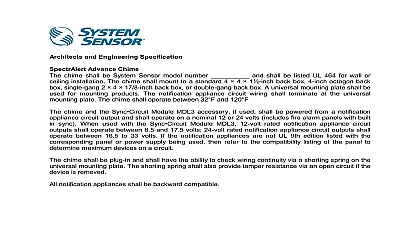

Architects and Engineering Specification Advance Chime Strobe chime strobe shall be System Sensor model number and shall be listed UL 464 and UL for wall or ceiling installation The chime strobe shall comply with the Americans with Disabilities Act for visible signaling appliances flashing at 1Hz over the strobe entire operating voltage The strobe light shall consist of a xenon flash tube and associated lens reflector system The shall have two audibility options and an option to switch between a temporal three pattern and a continuous pattern These options are set by a multiple position switch The chime strobe operate between 32 and 120 chime strobe shall mount to a standard 4 4 1 back box 4 inch octagon back box single 2 4 17 8 inch back box or double gang back box A universal mounting plate shall be used for products The notification appliance circuit wiring shall terminate at the universal mounting plate chime strobe and the Sync Module MDL3 accessory if used shall be powered from a non notification appliance circuit output and shall operate on a nominal 12 or 24 volts includes fire panels with built in sync When used with the Sync Module MDL3 12 volt rated notification circuit outputs shall operate between 8.5 and 17.5 volts 24 volt rated notification appliance outputs shall operate between 16.5 to 33 volts If the notification appliances are not UL 9th edition with the corresponding panel or power supply being used then refer to the compatibility listing of the to determine maximum devices on a circuit chime strobe shall be plug in and shall have the ability to check wiring continuity via a shorting spring the universal mounting plate The shorting spring shall also provide tamper resistance via an open if the device is removed notification appliances shall be backward compatible
