System Sensor i3 Retrofit with i4 Wiring Flyer

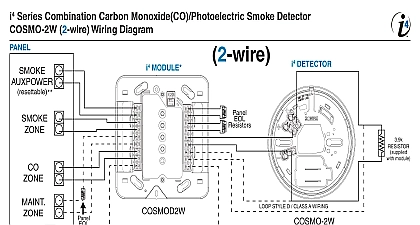

4 Series Retrofit Installations FAQ the value of CO protection existing i3 Series installations i4 Series Combination CO Smoke Detector and Interface Module is the first system connected solution for conventional fire and security systems That means less wire less labor fewer devices on the wall or ceiling With 24 7 central station monitoring and the most reliable accurate sensing technologies it also means the highest levels of protection available we know what you thinking do I add the i4 Series Combination CO Smoke Detectors into an existing Series Smoke Detector installation i4 Interface Module is compatible with System Sensor i3 Series Smoke Detectors with thermal and built in sounders models 2WTA B or 4WTA B allowing a CO solution to be easily into existing i3 installations while also delivering greater flexibility for new installations The interconnects the sounders of all devices on the loop when one goes all go as easy as 1 2 3 Install the i4 Interface Module next to the Fire Intrusion Panel connecting the smoke zone zone and resettable power Connect the i3 Smoke Detectors with Sounders inline with any number of i4 CO Smoke directly to the i4 Interface Module up to 12 devices per module Test the system diagrams below illustrate the simplicity of the retrofit i3 Series Installation INTRUSION PANEL INTRUSION PANEL Zone Zone Series Detector Sounder Series Detector Sounder Series Detector Sounder Series Detector Sounder Series Detector Sounder Series Detector Sounder i3 Installation with the i4 Series Combination CO Smoke Detector INTRUSION PANEL INTRUSION PANEL Power Zone Power Zone Zone Zone Series Series Series Series Module Detector Detector Detector Series Module Sounder Series Detector Sounder Series Detector Sounder Series Detector Sounder power is required for the i4 Series Interface Module power is required for the i4 Series Interface Module 11 14
