System Sensor L-Series Speakers and Speaker Strobes - Wall(AVDS866)

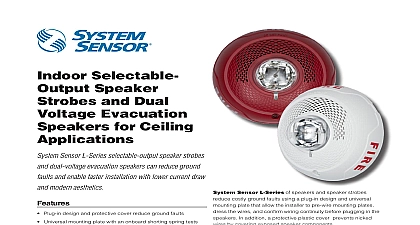

Indoor Selectable Speaker and Dual Evacuation for Wall Sensor L Series selectable output speaker strobes dual voltage evacuation speakers can reduce ground and enable faster installation with lower current draw modern aesthetics Plug in design and protective cover reduce ground faults Universal mounting plate with an onboard shorting spring tests continuity before installation No extension ring required Field selectable candela settings on wall units 30 75 95 110 135 185 Automatic selection of 12 or 24 volt operation 15 and 30 candela Rotary switch simplifies field selection of speaker voltage and 70.7 Vrms and power settings 1 and 2 watts Speakers offer high fidelity and high volume sound output 520 Hz 10 square wave tone capable with compatible FACP Electrical compatibility with existing SpectrAlert and SpectrAlert Advance products Tamper resistant construction Updated modern aesthetics Listings approved except ALERT models System Sensor L Series of speakers and speaker strobes costly ground faults using a plug in design and universal plate that allow the installer to pre wire mounting plates the wires and confirm wiring continuity before plugging in the In addition a protective plastic cover prevents nicked by covering exposed speaker components devices also enable faster installations by providing instant to ensure that wiring is properly connected rotary switches select voltage and power settings and 7 field selectable candela for wall speaker strobes low total harmonic distortion of the speaker offers high fidelity output while still offering high volume sound output for use high ambient noise applications Sensor L Series makes installation easy Attach a universal mounting plate to a 4 4 21 8 inch back box Connect the notification appliance circuit or speaker wiring to the on the mounting plate Attach the speaker or speaker strobe to the mounting plate by the product tabs into the mounting plate grooves Hinge device into position to lock the product pins into the mounting terminals The device will temporarily hold in place with a until it is secured with a captured mounting screw 6 6 2019 Page 1 Compatible with System Sensor synchronization protocol applications do not require an extension ring Speaker and Speaker Strobe Specifications Specifications speaker and speaker strobes shall mount to a 4 4 21 8 inch back box A universal mounting plate shall be used for mounting and wall products The notification appliance circuit and amplifier wiring shall terminate at the universal mounting plate Also L Series strobes when used with the Sync Module accessory shall be powered from a non coded notification appliance circuit and shall operate on a nominal 12 or 24 volts When used with the Sync Module 12 volt rated notification appliance circuit shall operate between 8.5 and 17.5 volts 24 volt rated notification appliance circuit outputs shall operate between 16.5 and 33 volts L Series products shall operate between 32 and 120 from a regulated DC or full wave rectified unfiltered power supply Wall speaker strobes shall have field selectable candela settings including 15 30 75 95 110 135 185 speaker shall be aSp System Sensor L Series model dual voltage transformer speaker capable of operating at 25.0 or 70.7 Vrms It should be listed to UL 1480 and shall be approved for fire protective service The speaker shall have a frequency range of to 4,000 Hz and shall have an operating temperature between 32 and 120 The speaker shall have power taps and voltage that are by rotary switches Strobe combination speaker strobe shall be a System Sensor L Series model listed to UL1480 and UL 1971 and be approved for fire protective systems The speaker shall be capable of operating at 25.0 or 70.7 nominal Vrms selected via rotary switch and shall have a range of 400 to 4,000 Hz The speaker shall have power taps that are selected by rotary switch The strobe shall comply with the 72 requirements for visible signaling appliances flashing at 1 Hz over the strobe entire operating voltage range The strobe light shall of a xenon flash tube and associated lens reflector system Module module shall be a System Sensor Sync model MDL3 listed to UL 464 and shall be approved for fire protective service The module synchronize strobes at 1 Hz The module shall mount to a 411 16 411 16 21 8 inch back box The module shall also control two Style Y B circuits or one Style Z class A circuit The module shall synchronize multiple zones Daisy chaining two or more synchronization together will synchronize all the zones they control The module shall not operate on a coded power supply Specifications Temperature Range Wall Mount Speaker Surface Mount Back Box Speaker Strobe lens and speaker in 116 mm Surface Mount Back Box using 12AWG 14 AWG or adding extra wires in the box a deeper box or extension ring is recommended to 120 0 to 49 to 93 non condensing in 165 mm in 168 mm in 165 mm in 127 mm in 130 mm in 127 mm in 23 mm in 82 mm in 58 mm in 130 mm in 168 mm Volts or 70.7 Volts nominal VDC flash per second 12 VDC or regulated 24 DC FWR1,2 to 17.5 V 12 V nominal or 16 to 33 V 24 V nominal Specifications Voltage speakers Supervisory Voltage speakers Flash Rate Voltage strobes Voltage Range includes fire panels with built in sync Voltage with MDL3 Sync Module Range Full Wave Rectified FWR voltage is a non regulated time varying power source that is used on some power supply and panel outputs Strobe products will operate at 12 V nominal only for 15 and 30 cd 520 Hz 10 square wave tone capable with compatible FACP to 17.5 V 12 V nominal or 16.5 to 33 V 24 V nominal to 4000 Hz3 1 2 watts 6 6 2019 Page 2 Current Draw Data Max Strobe Current Draw mA RMS to 17.5 Volts to 33 Volts Output Speaker Strobe Reverberant dBA 10 ft Anechoic dBA 10 ft Output Speaker Reverberant dBA 10 ft Anechoic dBA 10 ft W W W W W W W W Dimensions mm mm mm mm mm mm mm mm mm Speaker Speaker Strobe 6 6 2019 Page 3 Mounting Speaker Strobe SBBSPRL SBBSPWL Surface Mount Back Box Ordering Information Mount only Strobe Speaker Strobe Strobe Amber Lens Strobe Clear Lens Strobe Fuego in 9.5 in Retrofit Plate Mount Back Box for Speakers and Speaker Strobes Mount Trim Ring P models have a plain housing no marking on the cover Ohio Avenue St Charles IL 60174 800 SENSOR2 Fax 630 377 6495 specifications subject to change without notice Visit systemsensor com current product information including the latest version of this data sheet System Sensor 6 6 2019
