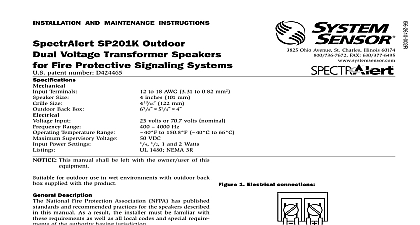

File Preview
File Preview
Click below to download for free

File Data

Name system-sensor-sa-sp201k-2917463850.pdf
Type PDF
Size 791.20 KB

Text Preview

SP201K Outdoor Dual Evacuation Sensor SP201K series speakers combine functionality and flexibility in the latest of dual voltage outdoor evacuation speakers sound quality and 70.7 Vrms dual voltage settings field selectable power taps profile design matched mounting screws for use in outdoor environments per UL 50 NEMA 3R Listings With its low total harmonic distortion the SP201K series offers fidelity quality sound output This provides greater assurance that the SP201K output closely matches the source signal This fidelity sound quality is at any of the SP201K four field selectable power taps 1 1 and 2 watts The SpectrAlert Outdoor Dual Voltage Evacuation is supplied with its own weatherproof back box The speaker voltage either 25.0 or 70.7 and power tap either 1 1 1 or 2 watt are field selectable to provide an dB output for each unit SpectrAlert Outdoor Speakers incorporate the same low profile design of the conventional SpectrAlert products a consistent and aesthetically pleasing appearance across the product line Series Specifications Specifications shall be a System Sensor Model SP201K dual voltage transformer speaker capable of operating at 25.0 or 70.7 nominal Vrms Speaker shall be listed Underwriter Laboratories Standard S4048 for outdoor fire protective signaling systems Speaker shall have a frequency range of 400 to 4000 Hz and shall an operating temperature from to 150.8 Speaker shall have power taps which are selected by shunts The speaker must be installed with its backbox in order to remain outdoor approved per UL listing S4048 The speaker shall be suitable for use in air handling spaces as well as wet Specifications Size Size Box Temperature Range Specifications Terminals Input Range to 18 AWG volts or 70.7 volts nominal 1 1 and 2 watts to 4000 Hz SP201K Series is UL Listed from 400 to 4000 Hz but will provide an output from 100 to 10,000 Hz inches 101 mm 122 mm square 51 4 168 mm 133 mm 102 mm to 150.8 to 66 Levels for Each Transformer Power Tap Volts W W W W Voltage and Power Selection Selecting a 1 watt input when a 25.0 volt nominal is being used Mounting 10 ft 4 V V W W W W Information No square speaker 413 16 grille 1 watt power tap surface mount backbox Voltage Vrms Ohio Avenue St Charles IL 60174 800 SENSOR2 Fax 630 377 6495 System Sensor specifications subject to change without notice Visit systemsensor com for product information including the latest version of this data sheet 5 07 1735
